Equipped with a high lifting height, it is suitable for multi-level racking operations. The scissor mechanism ensures fork stability, maintaining balanced loads during elevated stacking to enhance safety.
Powered by efficient lithium or lead-acid batteries, it offers low energy consumption, zero emissions, and low noise, making it ideal for modern green warehousing and industrial environments.
Advanced safety systems include automatic speed limits, fork position correction, and overload protection. These features enhance precision handling and ensure the safety of both operators and goods.

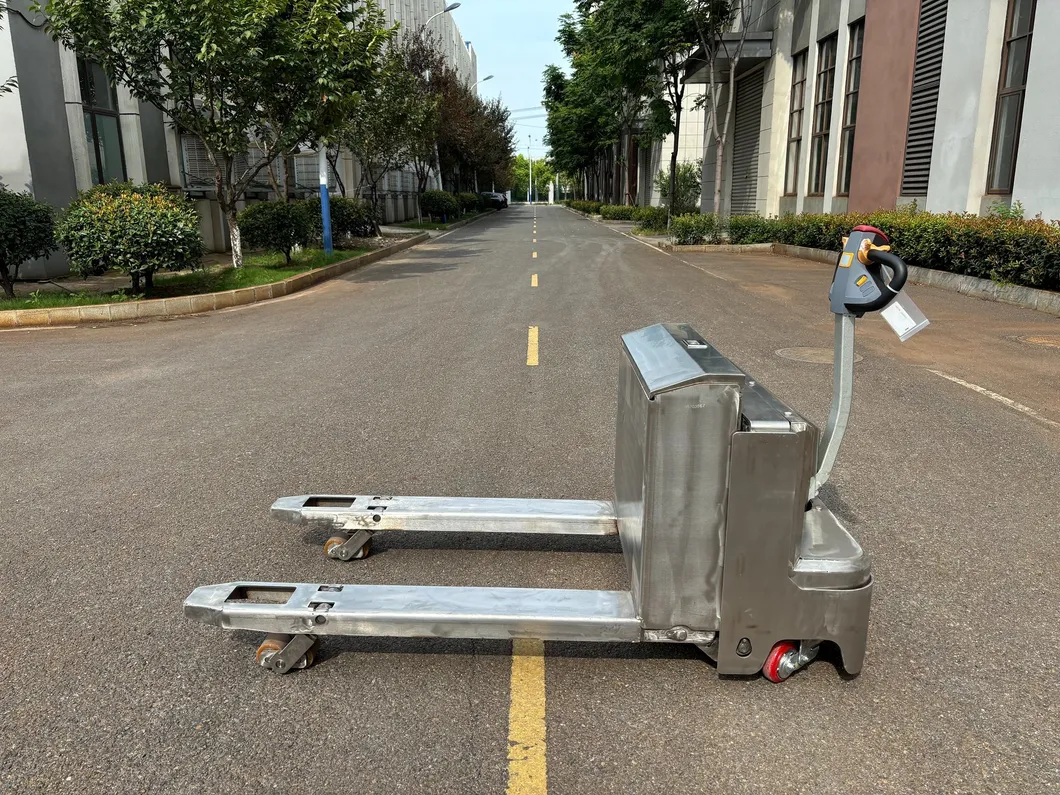

Electric drive technology makes the stacker emission-free, meeting environmental standards. Its low noise levels make it suitable for environments with strict noise control requirements.
| Parameter | Unit | CBD20 | CBD25 | CBD30 |
|---|---|---|---|---|
| Type of power | - | Lead-acid / Lithium battery | ||
| Driving type | - | Stand-on (Pedal model) | ||
| Rated load Q | kg | 2000 | 2500 | 3000 |
| Lifting height h3 | mm | 205 | 205 | 205 |
| Overall length (pedals down) L1 | mm | 2282 | 2282 | 2282 |
| Overall width b1 | mm | 776 | 776 | 776 |
| Fork dimensions e/s/l | mm | 55(70)/175/1150 | ||
| Turn radius (pedals down) Wa | mm | 2125 | 2125 | 2125 |
| Battery voltage/capacity | V/Ah | 24/210 | 24/210 | 24/210 |
| Vehicle weight (incl. battery) | kg | 660 | 660 | 660 |
| Driving Motor Power | kw | 1.6 | 1.6 | 1.6 |
| Maximum climbing (full/no load) | % | 6/12 | 4/12 | 3/12 |

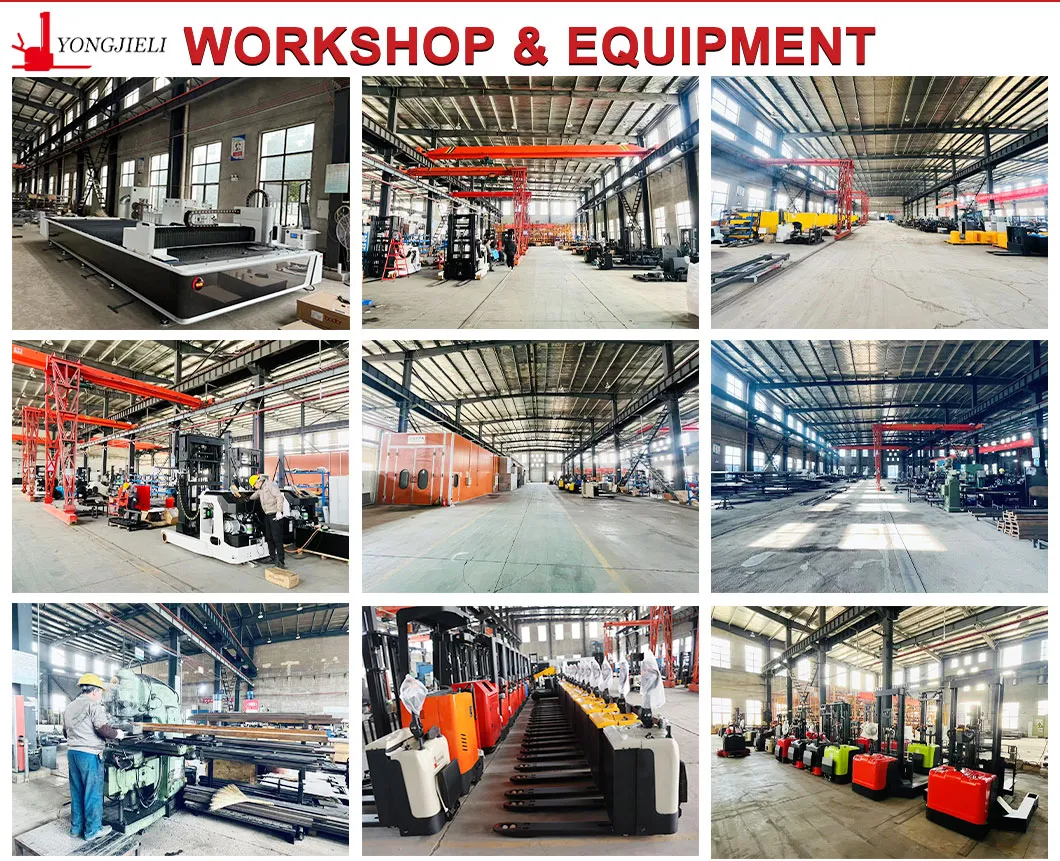

Established in March 2014, we are a high-tech enterprise specializing in the research, development, design, and manufacturing of logistics handling equipment. Our facility covers over 11,000 square meters and houses a team of over 80 professionals, including specialized product development engineers and senior mechanical researchers.

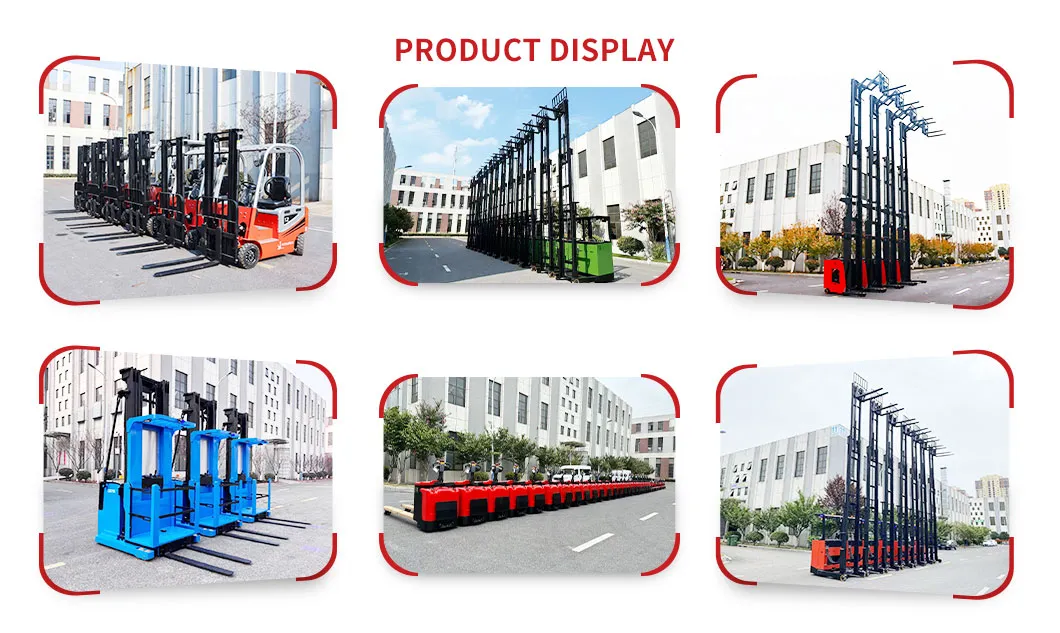

We provide tailored turnkey solutions that are economically and environmentally sustainable. Our extensive product line includes electric pallet trucks, stackers, reach trucks, tow tractors, VNA forklifts, and multi-directional forklifts, catering to industries such as medicine, food, chemicals, electronics, and furniture.
7*24 HOURS SERVICE
Pre-Sales Service: Inquiry support, OEM services, factory visits, and order tracking via photos/videos.
After-Sales Support: 12 months/2000 hours warranty for whole equipment, 60 months for lithium batteries, and lifelong online technical support.
