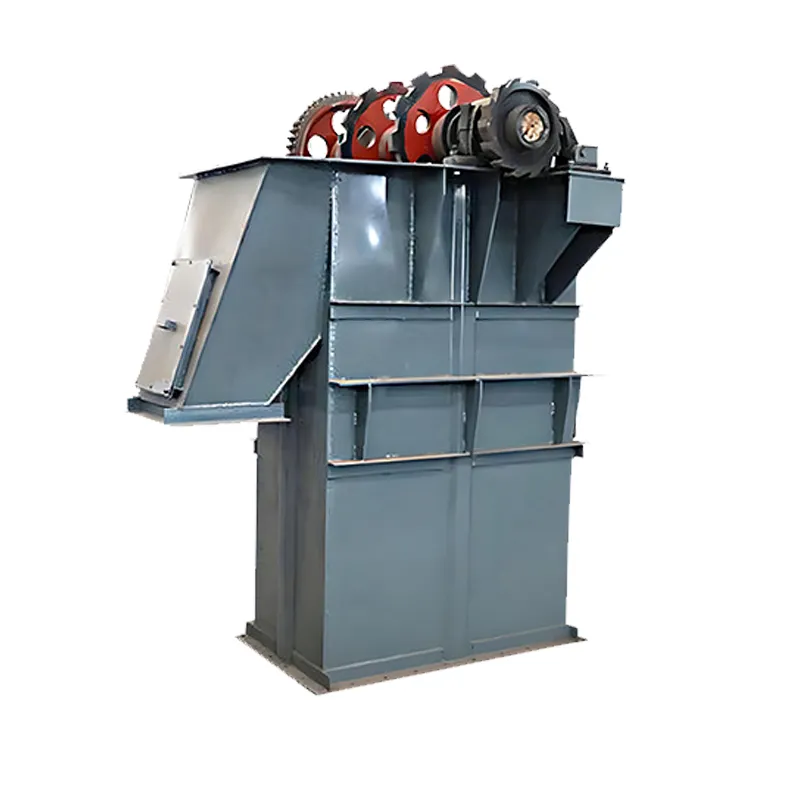

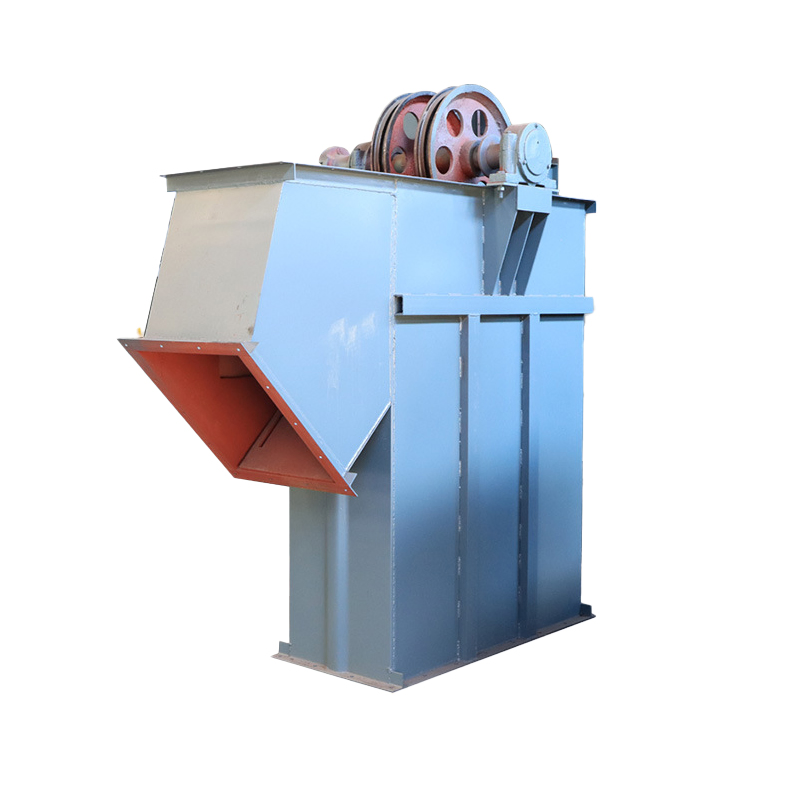

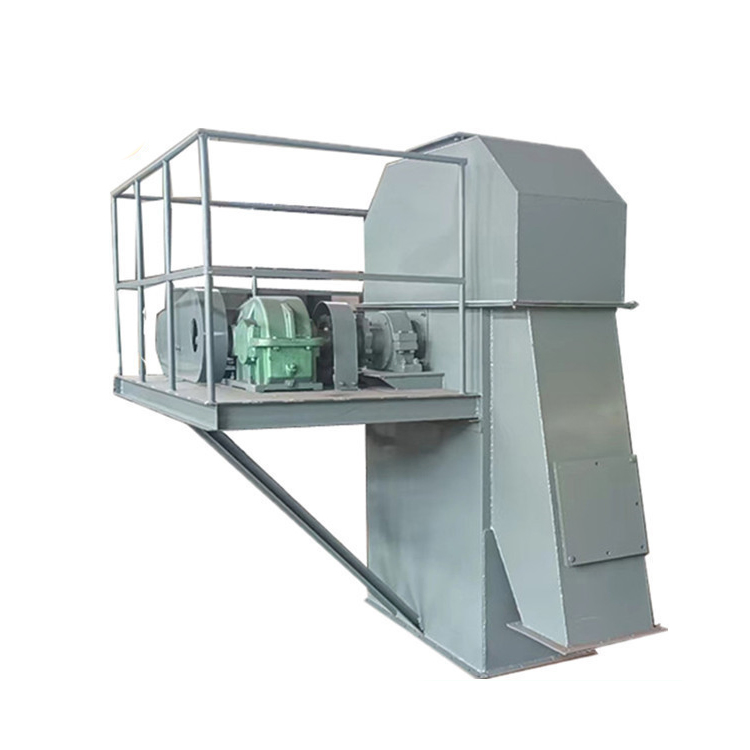

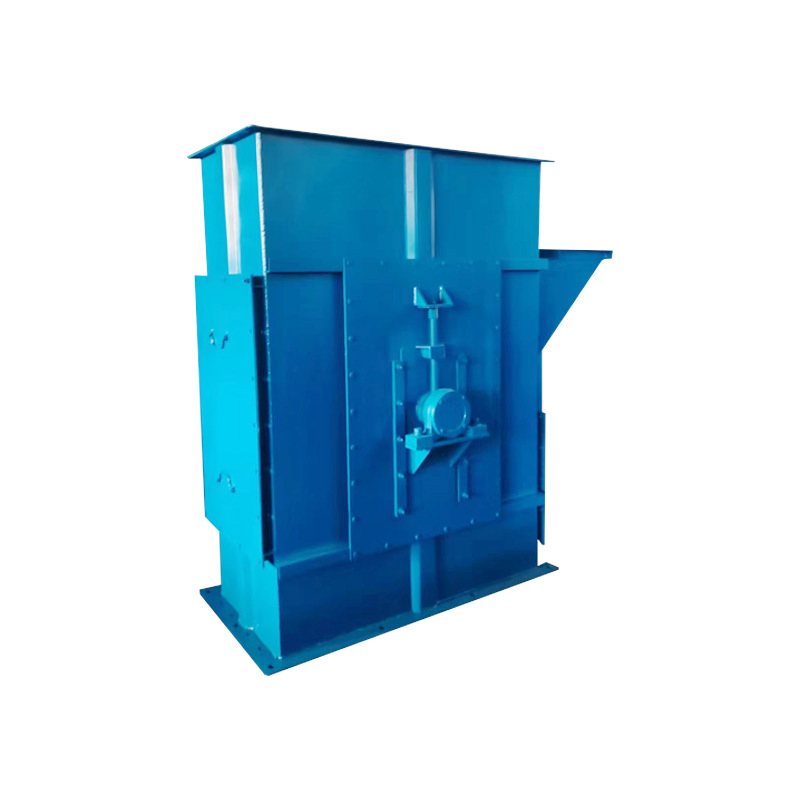

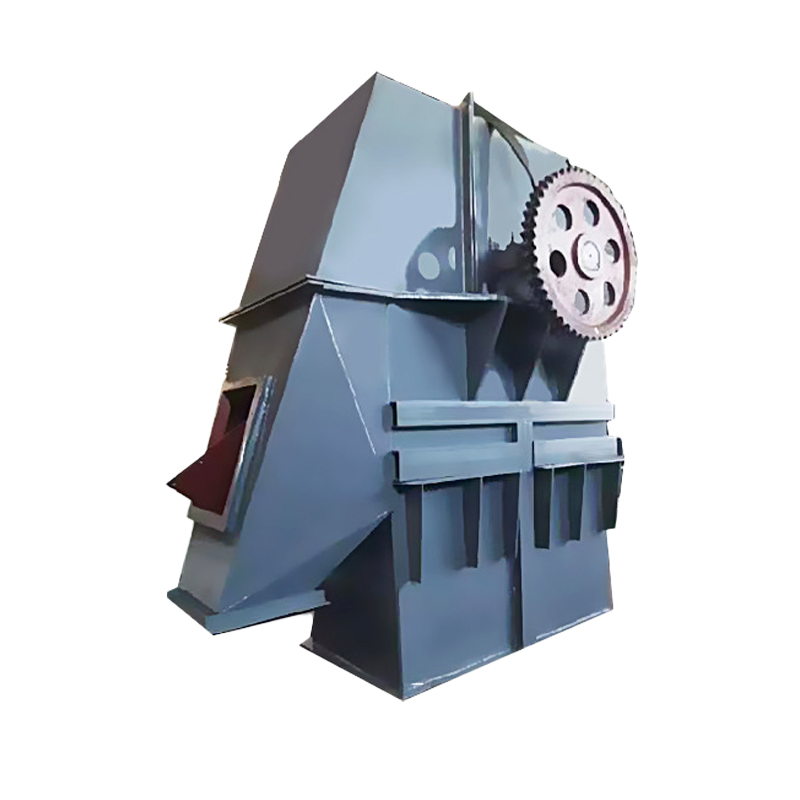

Bucket Elevator
A bucket elevator is a stationary mechanical conveying device primarily suitable for the continuous vertical lifting of powdery, granular, and small lump materials.
It is widely used in feed mills, flour mills, rice mills, oil mills, starch mills, grain depots, and port terminals of various sizes for lifting bulk materials.
Bucket elevators are used to vertically lift granular materials such as limestone, coal, gypsum, clinker, and dry clay that have passed through a crusher, as well as powdery materials such as raw materials, cement, and coal powder.
| Model | Conveying Capacity (m³/h) | Bucket Capacity (L) | Bucket Distance (mm) | Bucket Speed (m/s) | Max Size (mm) | Running Parts Weight (kg/m) |
|---|---|---|---|---|---|---|
| NE15 | 15 | 2.5 | 203.2 | 0.5 | 50 | 27.5 |
| NE30 | 35 | 7.8 | 304.8 | 0.5 | 65 | 35 |
| NE50 | 60 | 15.7 | 304.8 | 0.5 | 65 | 64 |
| NE100 | 110 | 35.0 | 400 | 0.5 | 95 | 89 |
| NE150 | 170 | 52.2 | 400 | 0.5 | 95 | 112.3 |
| NE200 | 220 | 84.6 | 500 | 0.5 | 125 | 134 |
| NE300 | 320 | 127.5 | 500 | 0.5 | 125 | 188 |
| NE400 | 400 | 182.6 | 600 | 0.5 | 145 | 205 |
| NE500 | 500 | 260.9 | 700 | 0.5 | 165 | 223 |
| NE600 | 600 | 330.2 | 700 | 0.5 | 165 | 274 |
| NE800 | 800 | 501.8 | 800 | 0.5 | 195 | 313 |
Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
