Bulk Material Handling Grains Chain Z Bucket Elevator in Food

Customization:	Available
Structure:	Chain Conveyor
Material:	Stainless Steel

Basic Info.

Model NO.

HY-1.0L, HY-1.8L, HY-3.8L, HY-6.5L

Material Feature

Oil Resistant, Heat Resistant, Fire Resistant

Application

Chemical Industry, Grain Transport

Condition

New

Product Name

Bucket Elevator

Design

Z Type

Output

2-12m3/H

Lifting Height

up to 30m

Bucket Volume

1.0L, 1.8L, 3.8L, 6.5L

Bucket Material

PP, ABS, SS304, or Other

Power Supply

220V, 380V; 50Hz; 0.75kw

Body Material

Mild Steel, Stainless Steel 304 or Other

Discharge Port

Single or Muti Discharge Port

Speed

Adjustable or Fixed

Driven Type

Electric Motor

HS Code

84283200

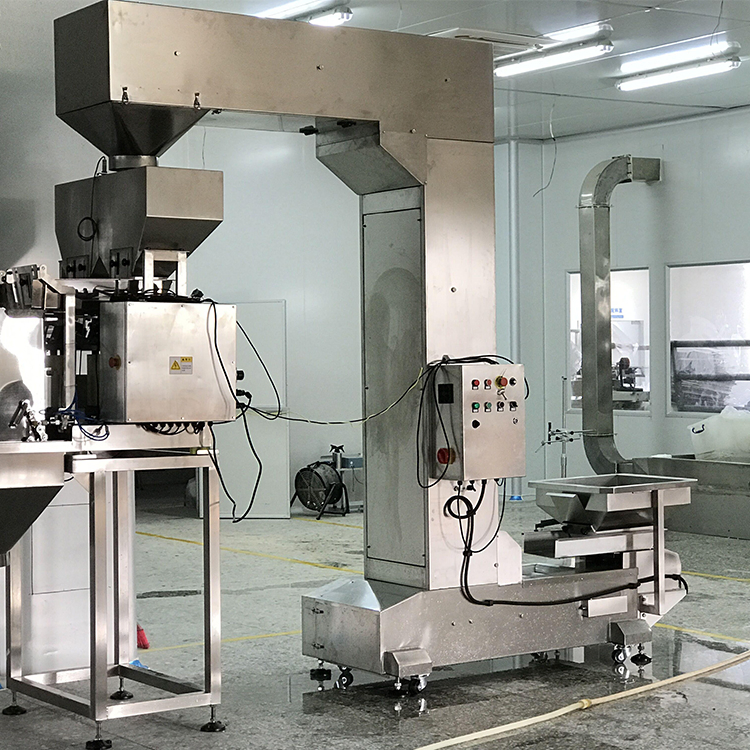

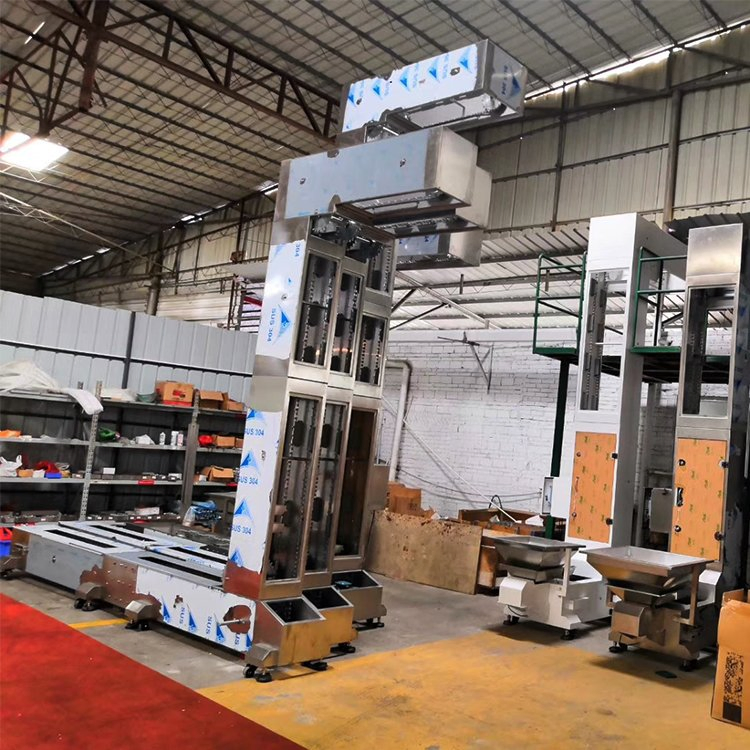

Bulk Material Handling Grains Chain Z Bucket Elevator

Introduction:

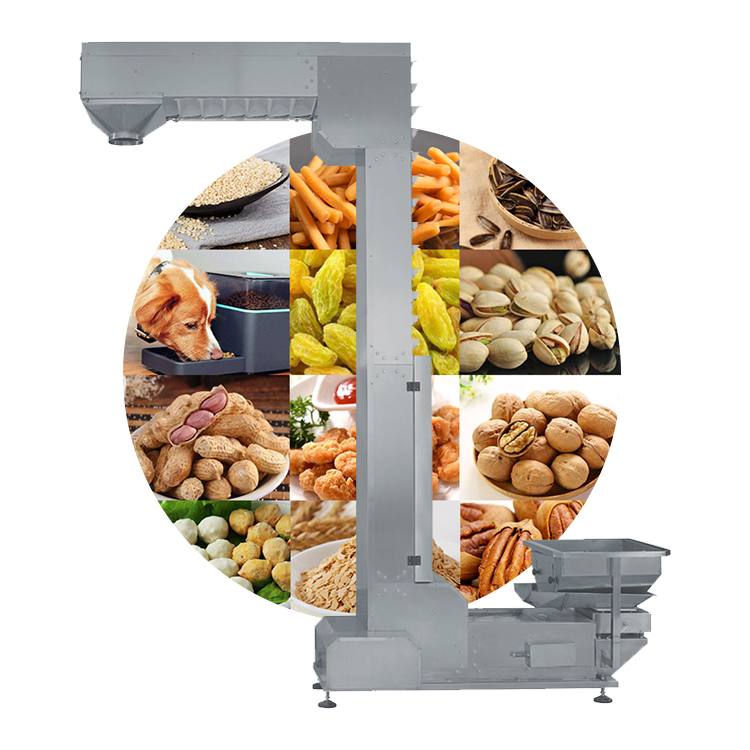

Z bucket elevator can be widely applied in horizontal and vertical convey for solid food, such as rice, chip potato, candy feedstuff, and so on. It composes the automatic quantitative packing system combined with the weight and packing machine, which is applying widely.

Working Process:
The bulk material is through vibrating feeder, the material was dropped into the buckets, the buckets will be moved by motor vertically forward to the top funnel of weight filler or packaging machine.

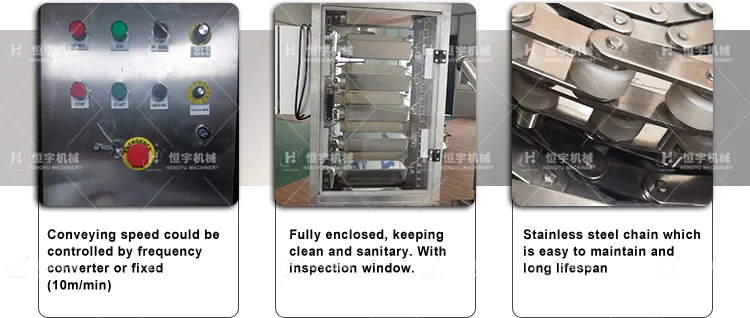

Advantages

All elevators are equipped with an automatic chain tension device and built-in overload protection.
Material of structure: Stainless steel 304 or carbon steel or others as required.
The buckets are made of PP, ABS, stainless steel 304 or others as required.

Technical Parameter

Bucket Volume	1.0L	1.8L	3.8L	6.5L
Output	2-3.5m3/h	4-6m3/h	6.5-8m3/h	8.5-12m3/h
Bucket Material	PP, ABS, SS304, or other
Body Material	Mild steel, stainless steel 304 or other
Discharge Port	Single or Muti discharge port
Speed	Adjustable or fixed
Voltage(v)	220V/50Hz (Single phase), 380V/50Hz (Three phases), or as required

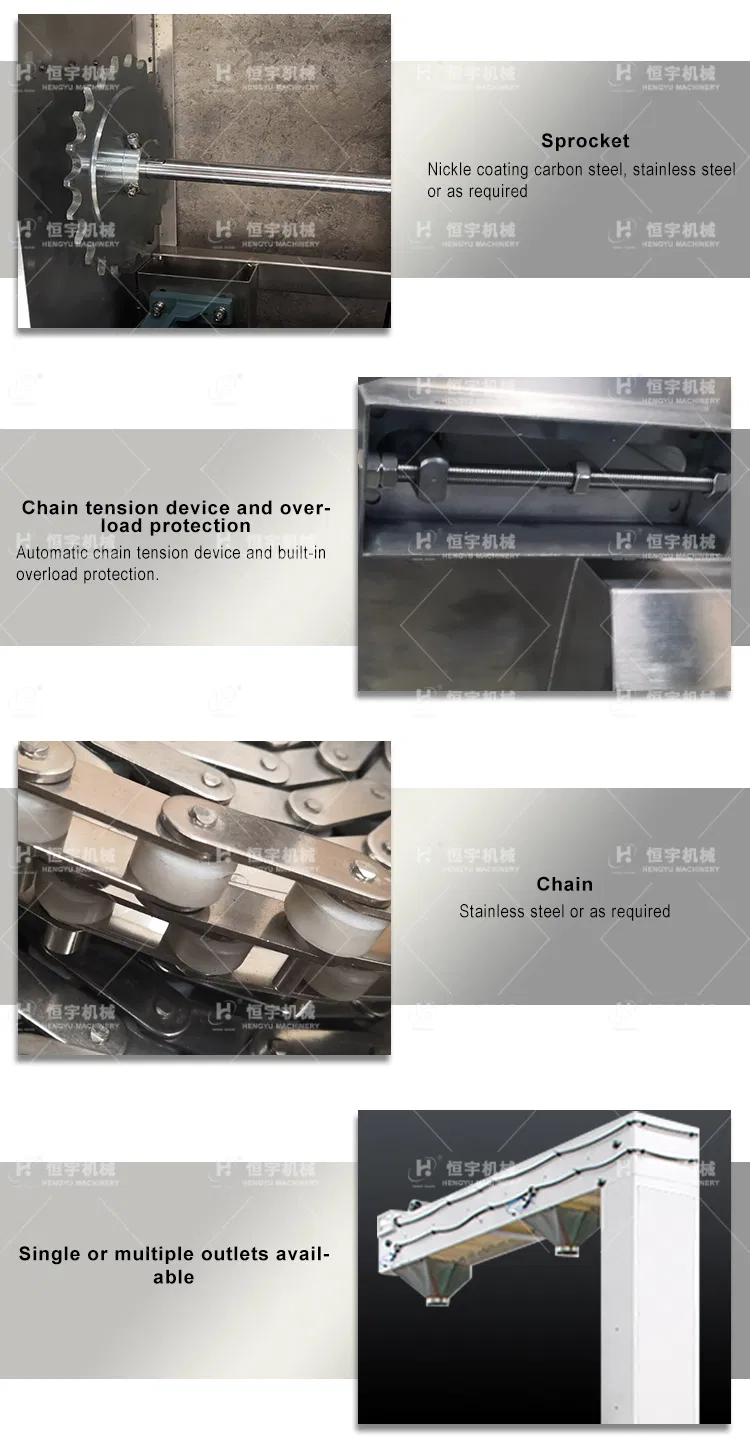

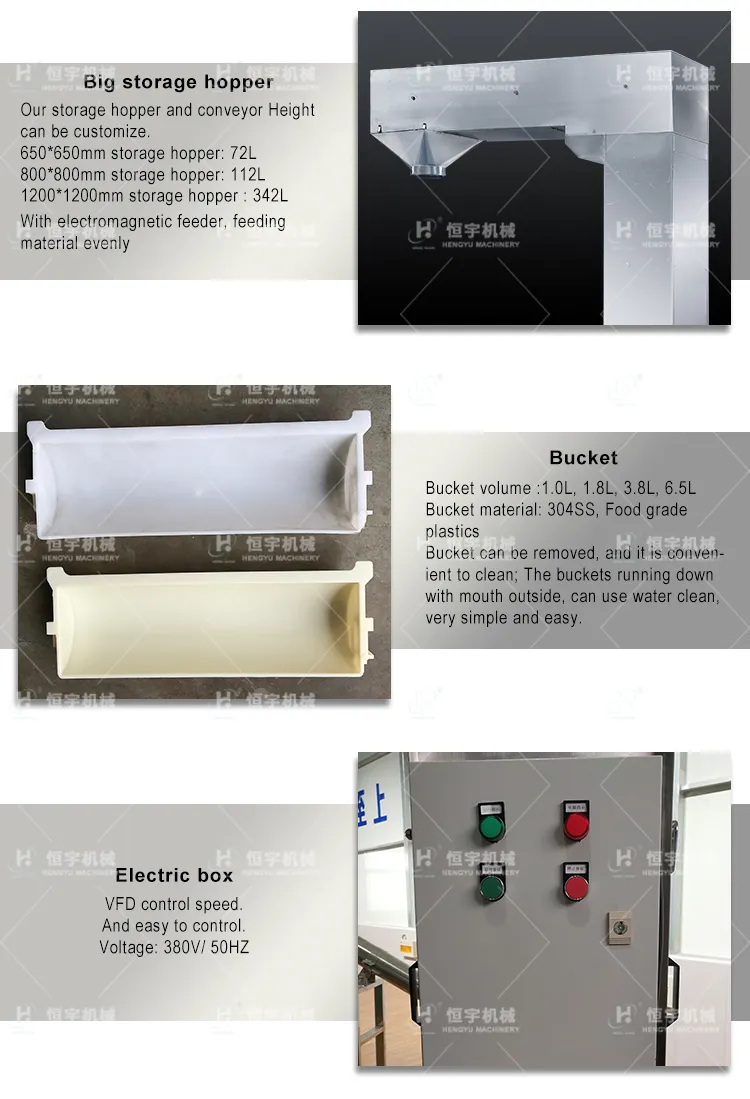

Application & Product Details

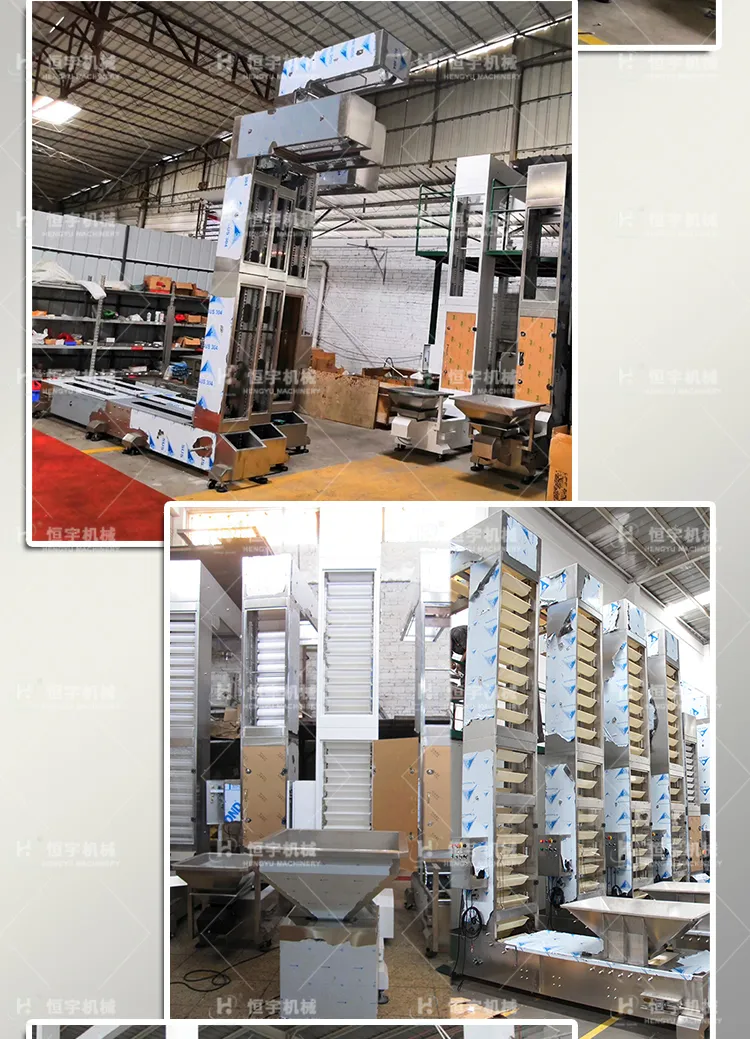

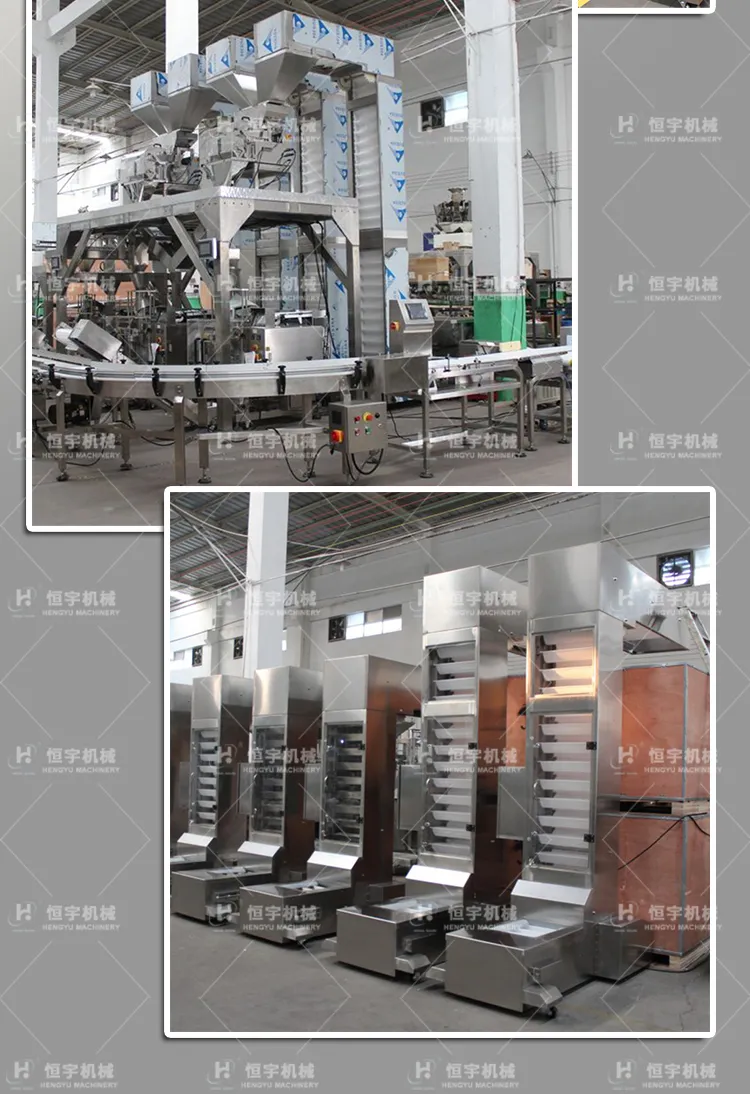

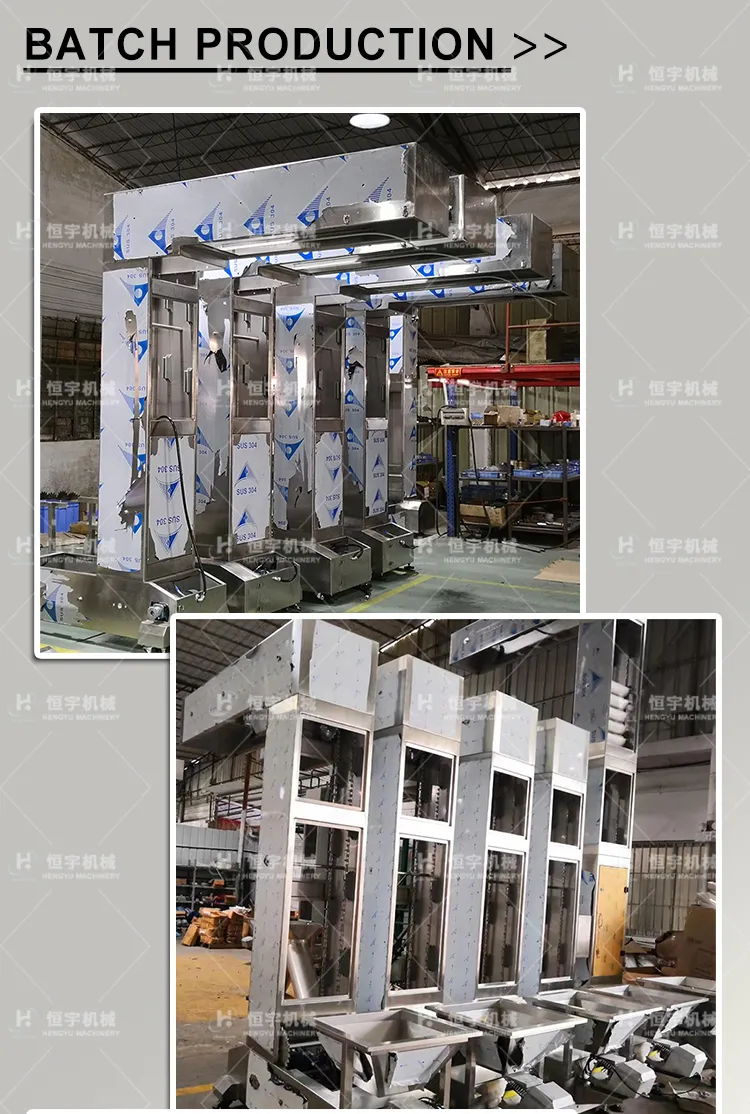

Product Show

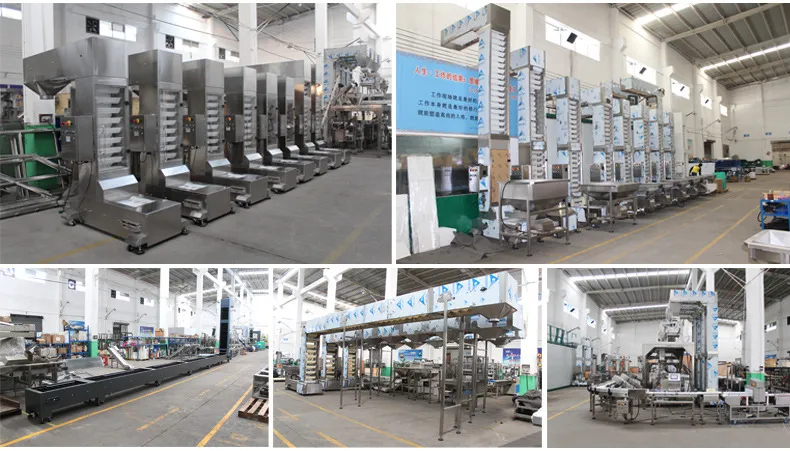

Customer Feedback

How to get a Z Bucket Conveyor Machine Quotation?

Please provide the following information for an accurate quote:

What is the material you are going to handle?
What are the physical characteristics of the material (size, temperature, density, moisture content, etc.)?
What is the production capacity you aim to achieve?
What is the lifting height of the elevator (distance between inlet and outlet)?
