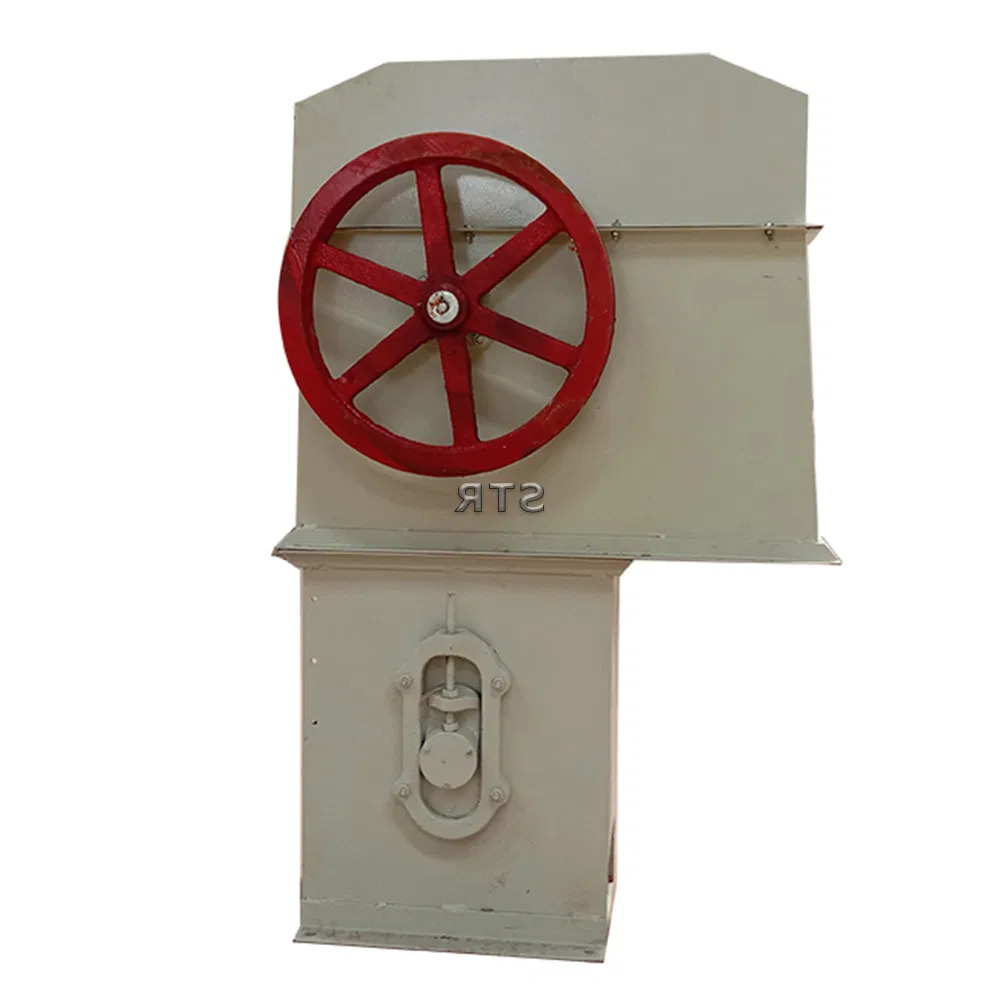

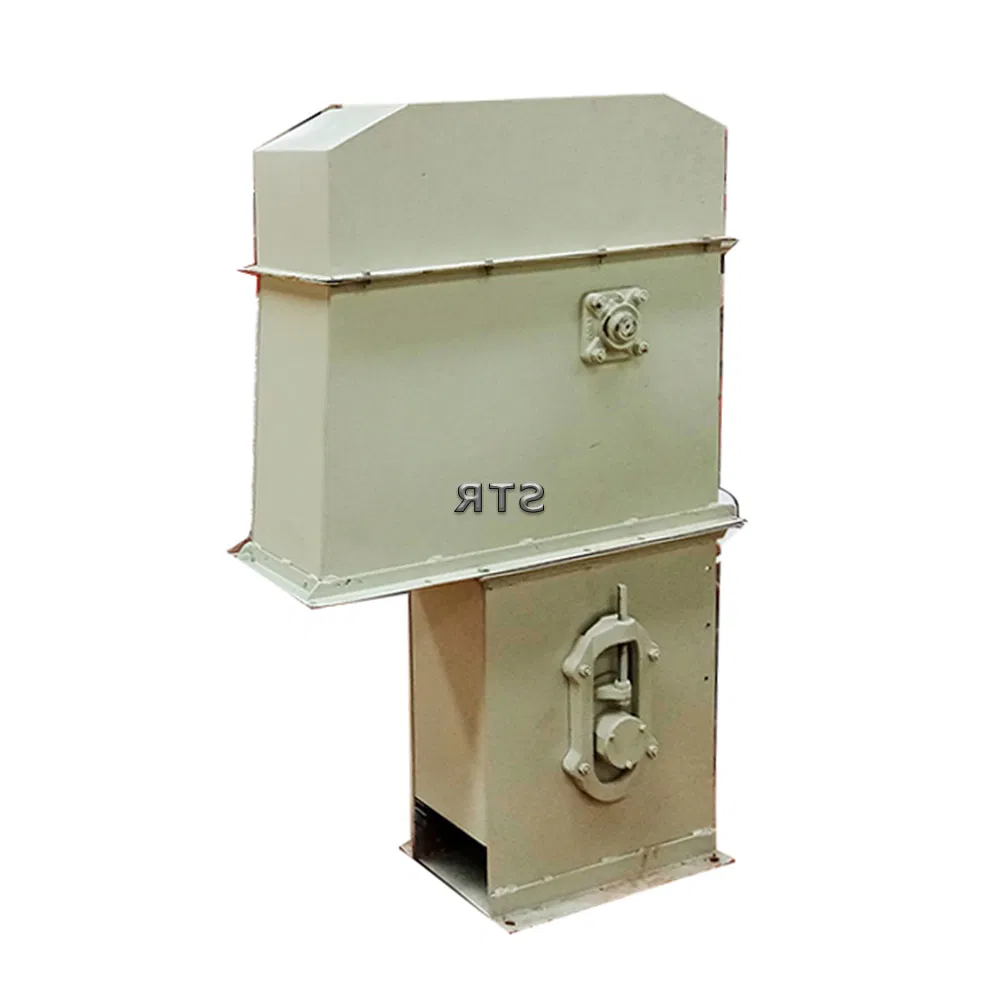

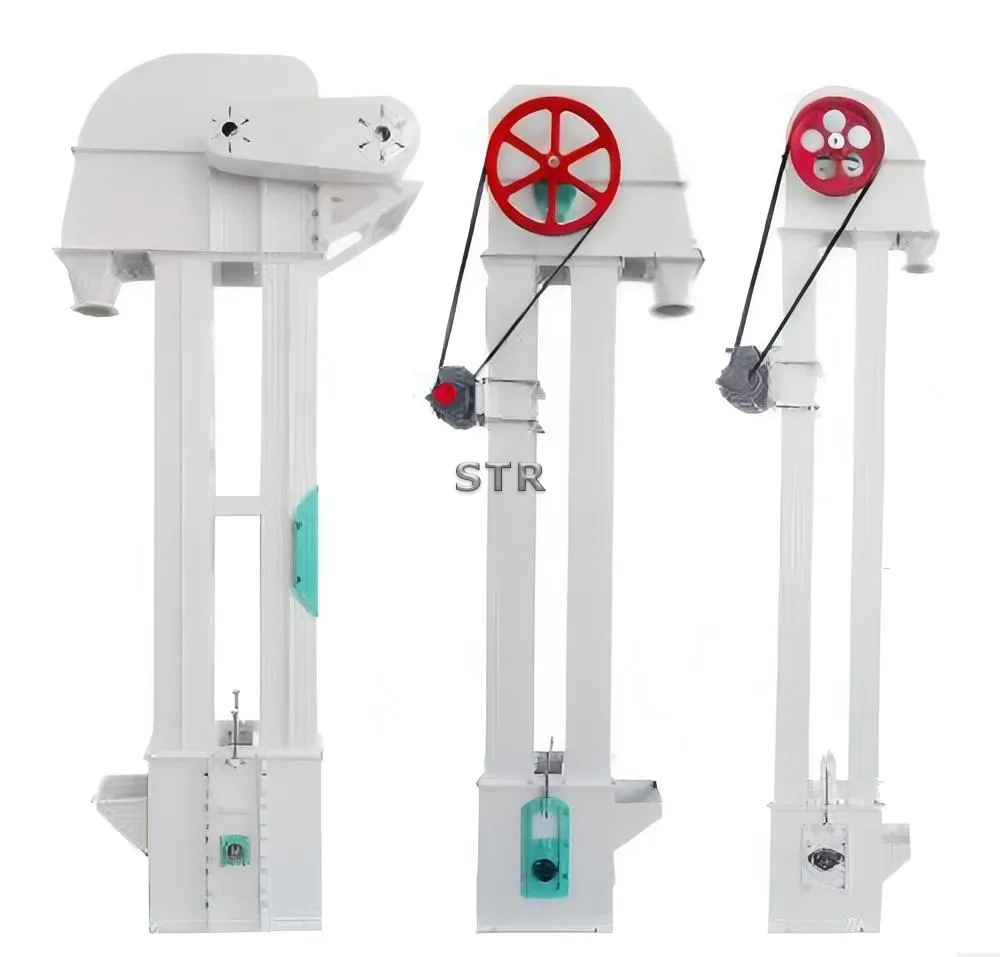

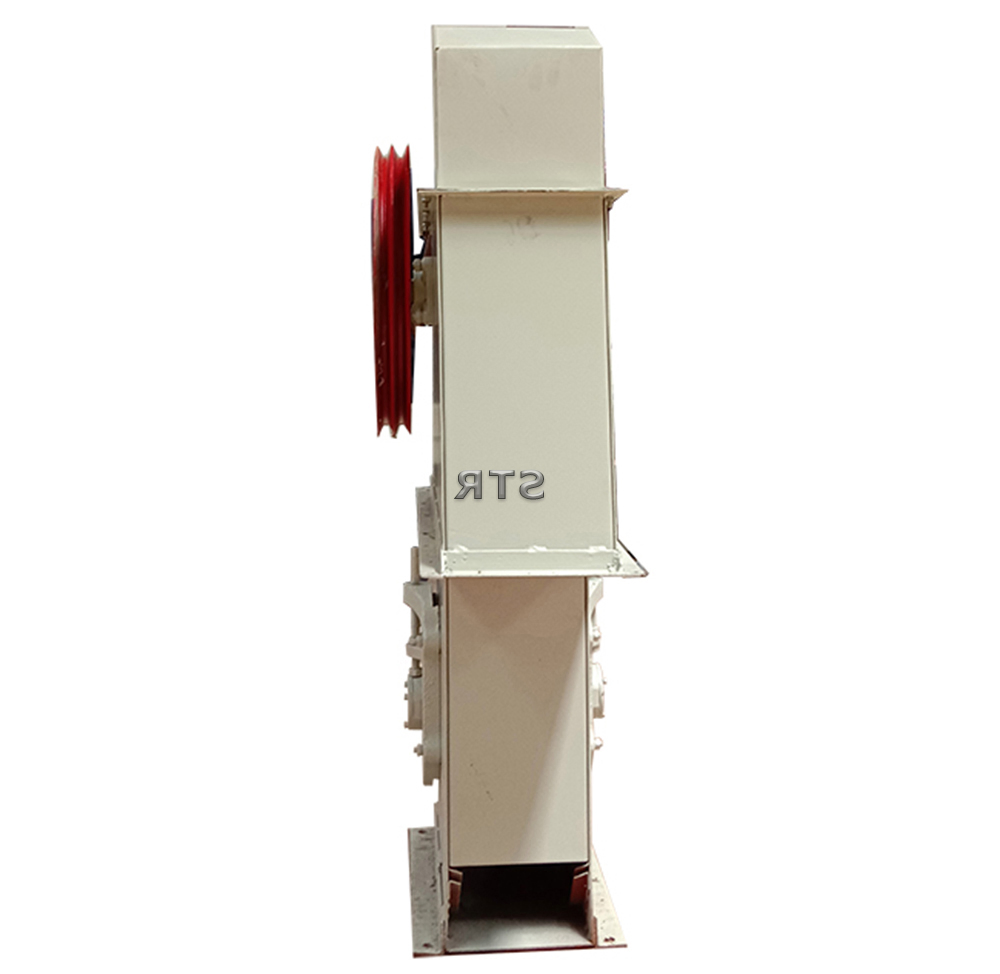

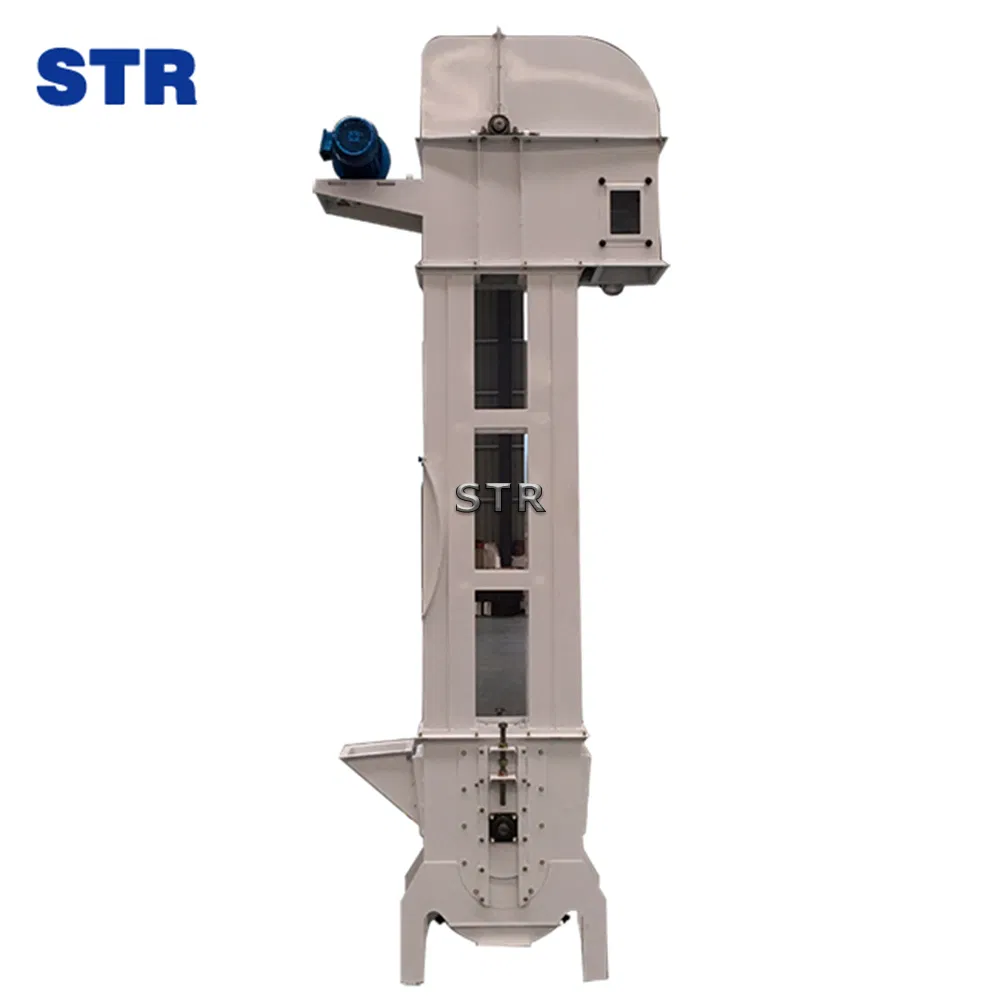

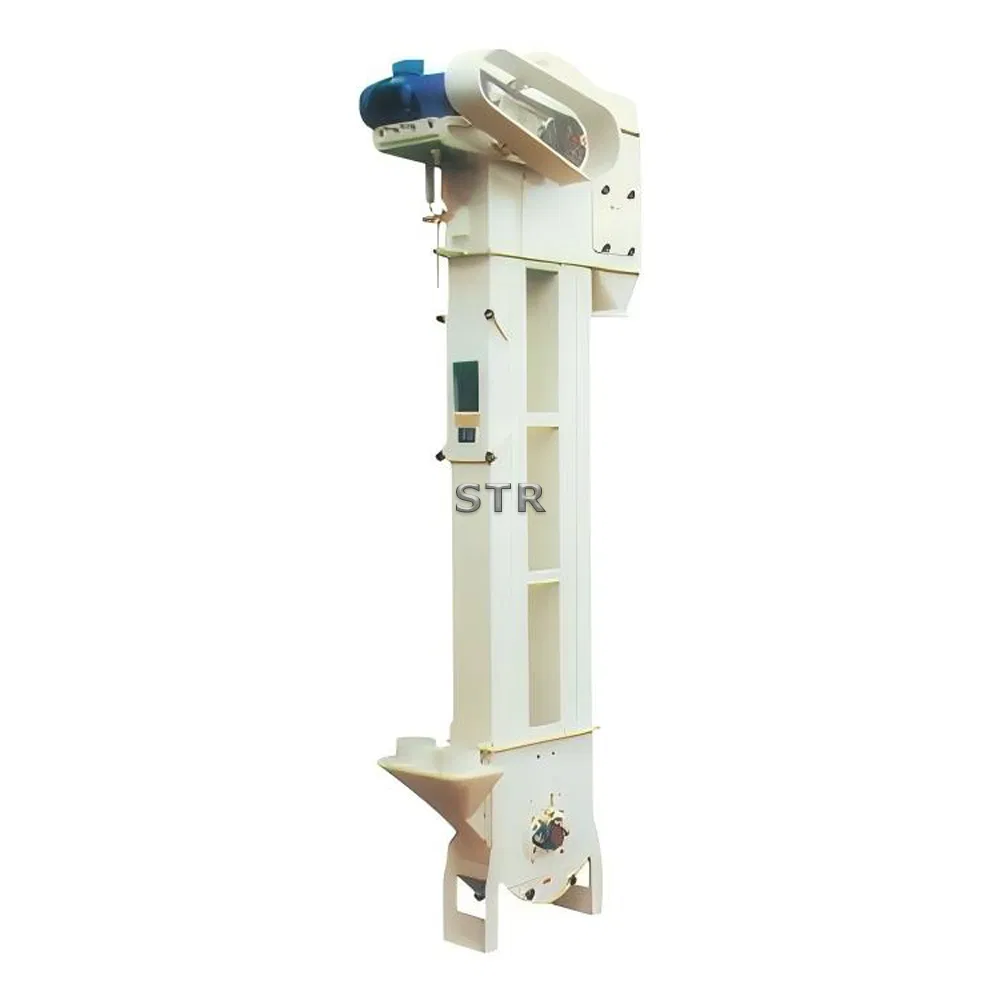

DTTG6 Food Processing Bucket Husk Material Handling Vertical Conveyor

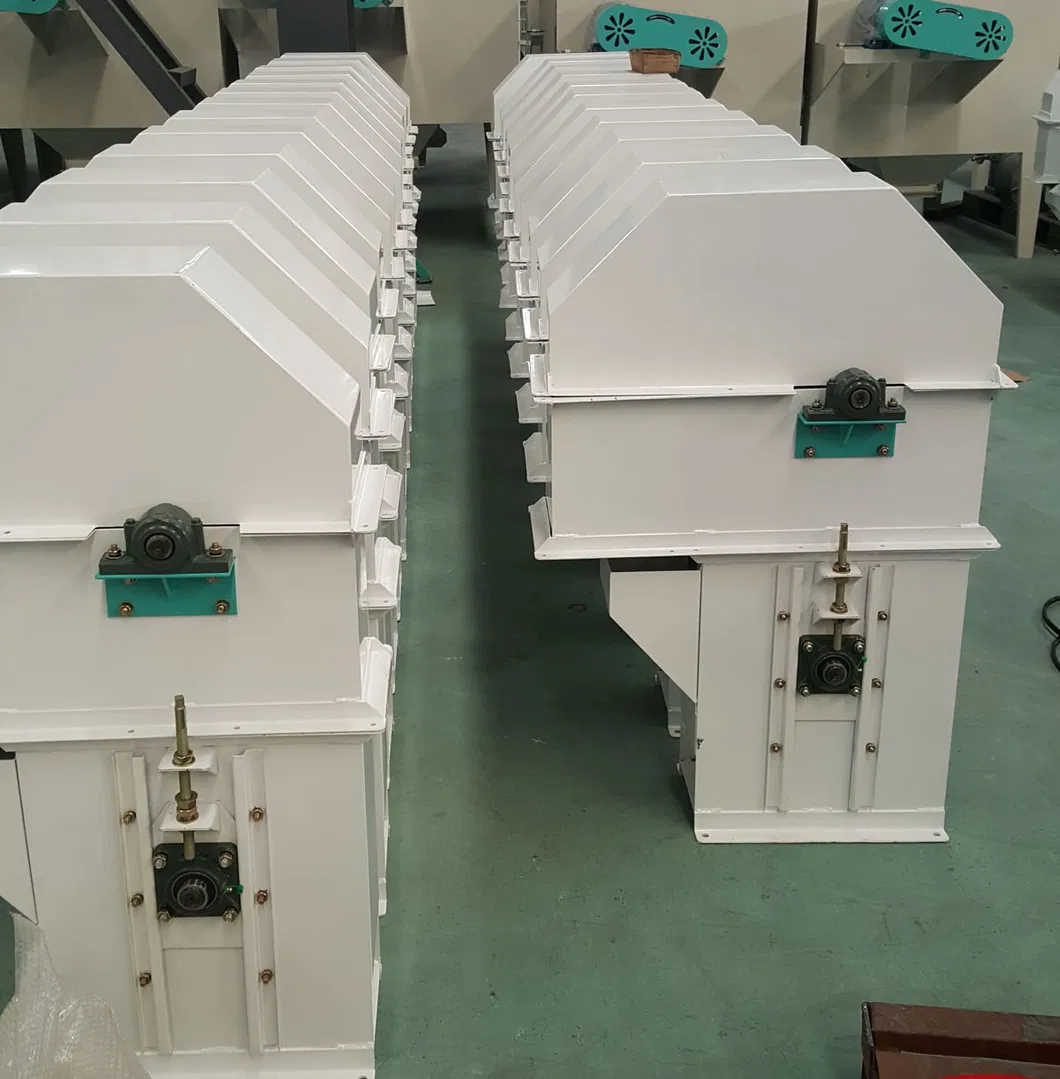

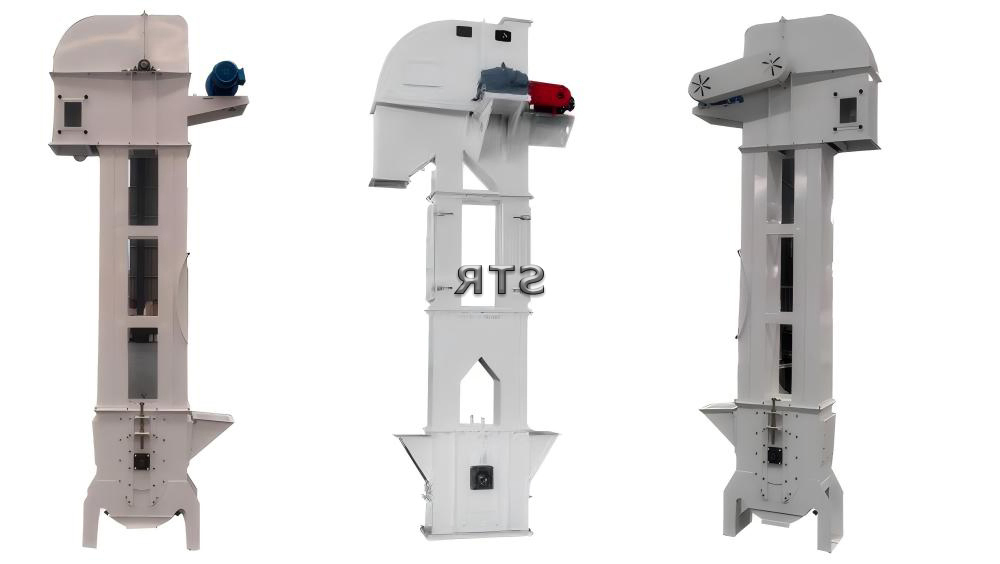

DTTG series low speed bucket elevator is an ideal hoisting machine in rice processing factory to avoid rice broken during transportation. It features steady operation and large hoisting capacity. Equipped with an auto-tightening device, it supports lifting heights from 3m to 40m.

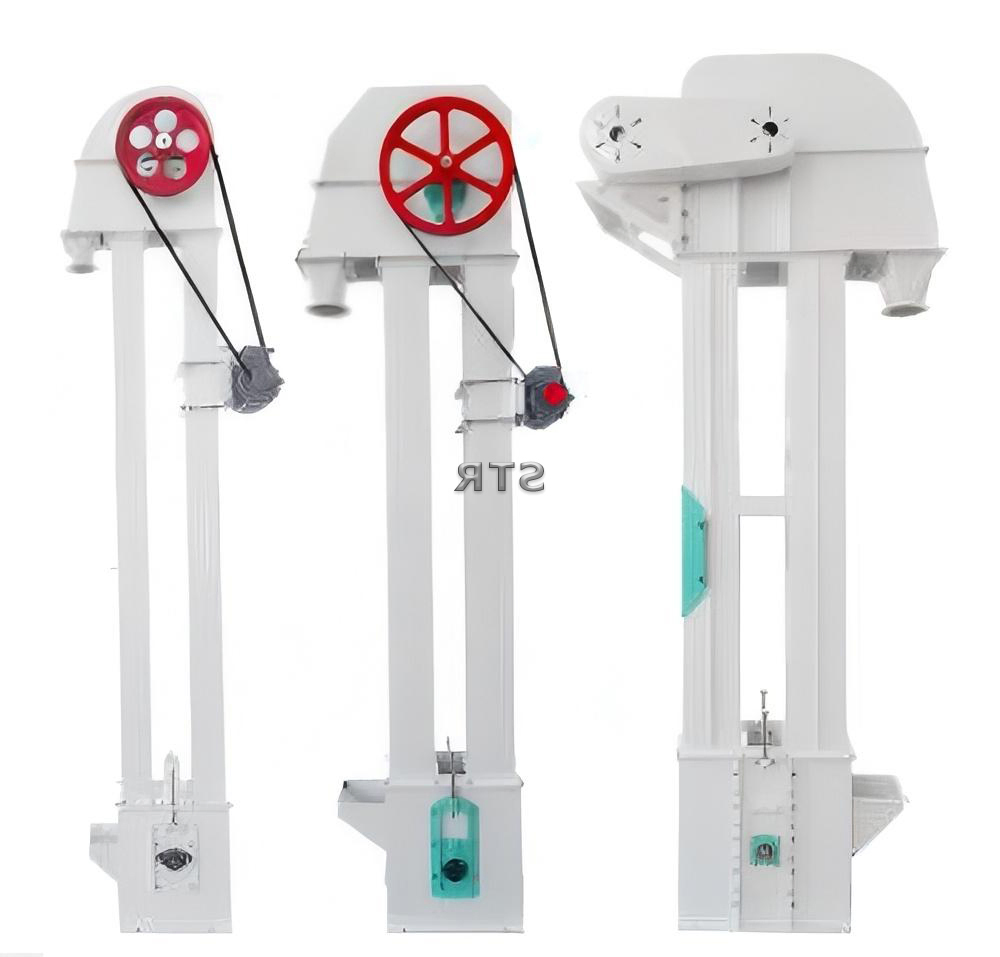

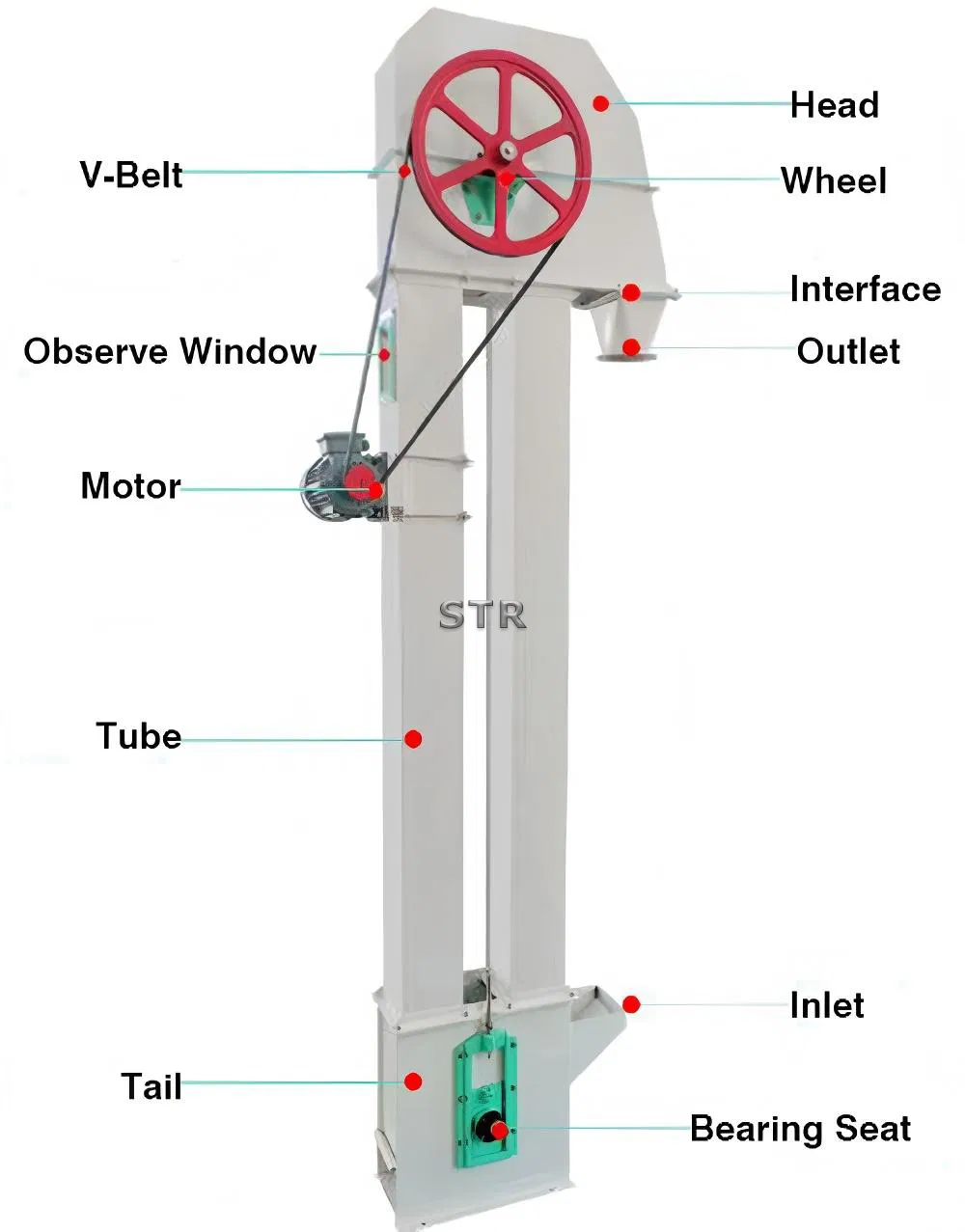

The driving device powers the pulley to move the belt with plastic buckets in a circular motion from head to tail. Materials are fed from the tail inlet and lifted to the head outlet. Centrifugal force and parabolic movement ensure efficient vertical transportation and discharge.
| Type | Capacity (t/h) | Power (Kw) | Notes |
|---|---|---|---|
| DTTG4 | 3.5-4.5 | 0.75 | Plastic Bucket |
| DTTG6 | 5-6 | 1.1 | Plastic Bucket |
| DTTG8 | 7-8 | 1.5 | Plastic Bucket |
