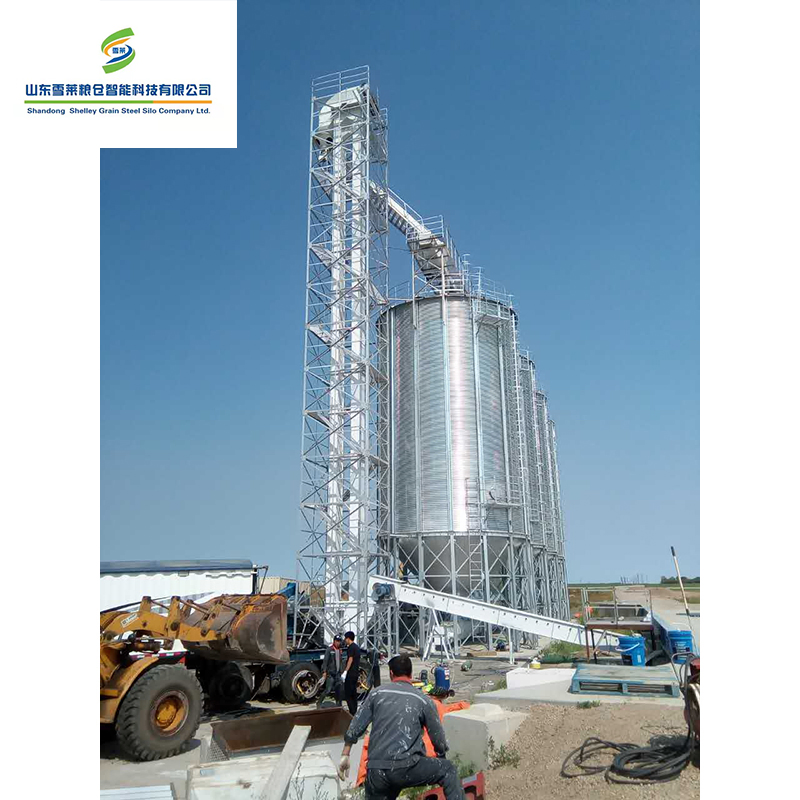

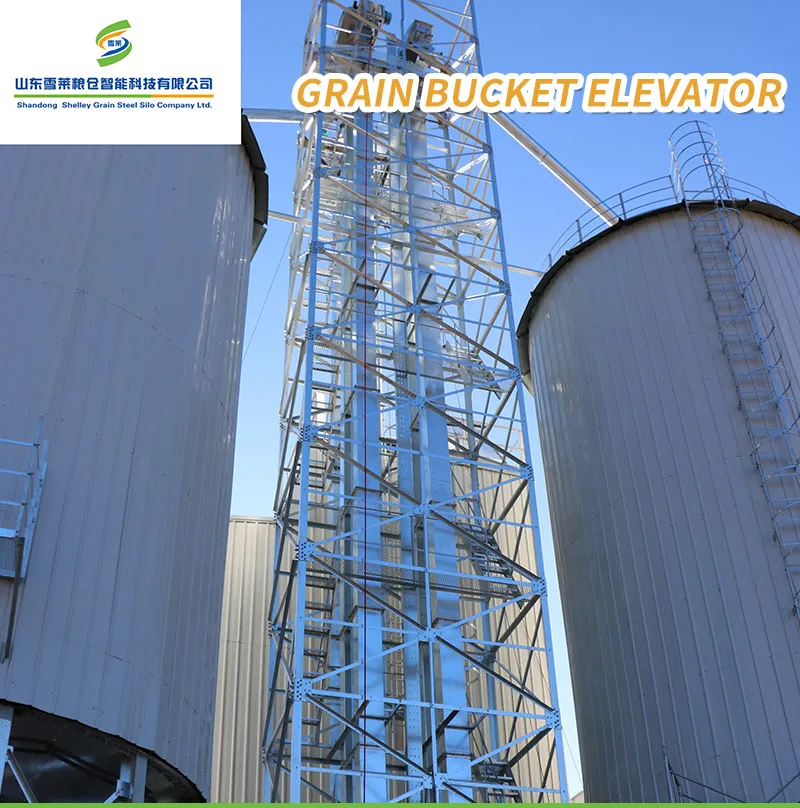

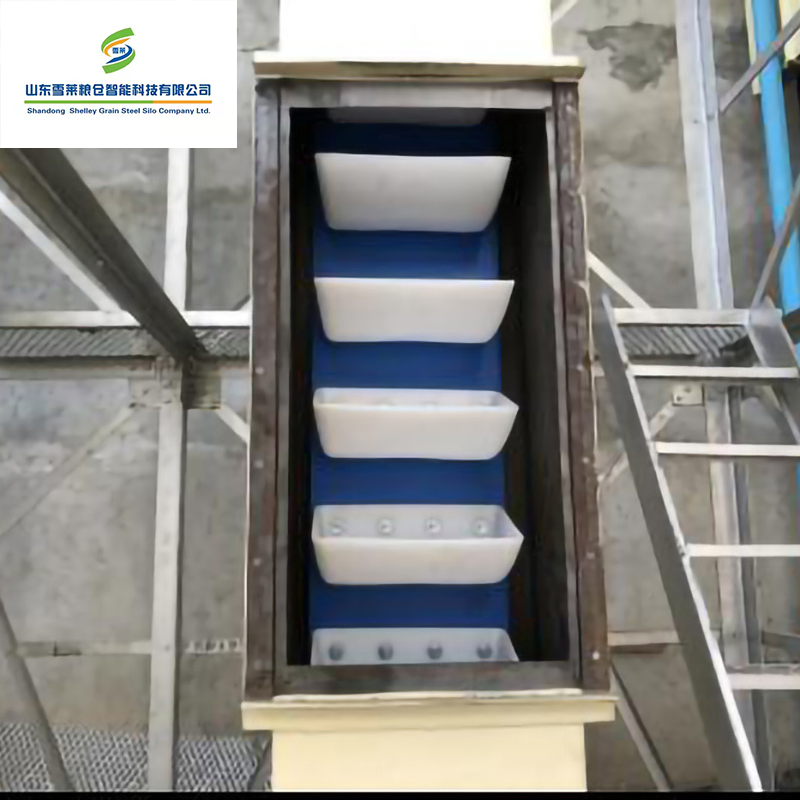

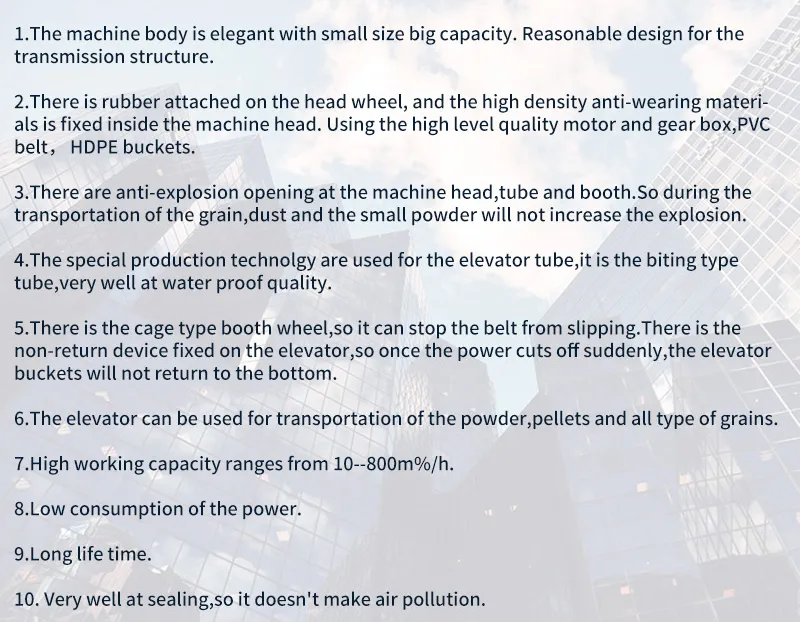

The TDTG series bucket elevators are specially designed for continuous vertical conveying of grain. They feature a small footprint, large conveying capacity, and low power consumption.
| Model | Head diameter(mm) | Bucket width(mm) | Line speed(m/s) | Yield Pellets (m³/H) | Yield Powder (m³/H) |
|---|---|---|---|---|---|
| TDTG30/16 | 300 | 160 | 2.5 | 30 | 16 |
| TDTG50/19 | 500 | 190 | 2.8 | 50 | 40 |
| TDTG50/23 | 500 | 230 | 2.8 | 65 | 50 |
| TDTG50/28 | 500 | 280 | 2.8 | 90 | 75 |
| TDTG60/28 | 600 | 280 | 3.1 | 130 | 100 |
| TDTG60/33 | 600 | 330 | 3.1 | 220 | - |
| TDTG80/47 | 800 | 470 | 3.1 | 400 | - |
Our company is a leading supplier of grain storage solutions, dedicated to providing one-stop supporting solutions for global customers. Founded in 2007, we now hold more than 30 invention patents and utility model patents.

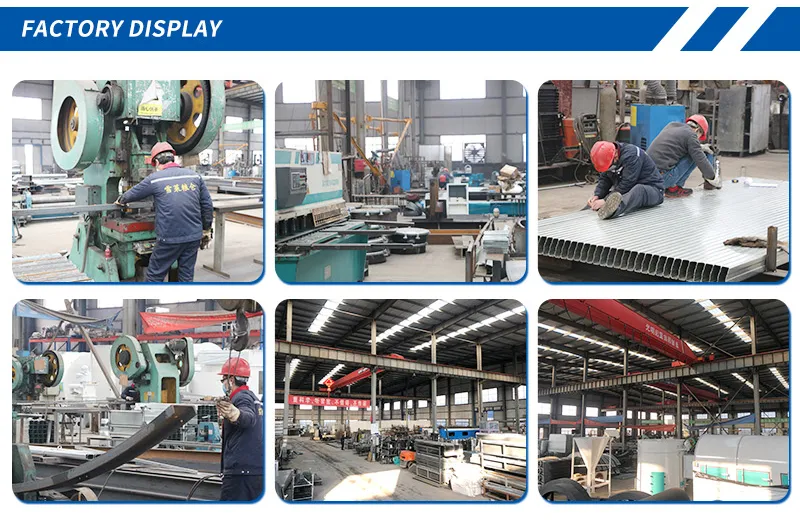

Our 8,000 square meter dust-free workshop is equipped with advanced automatic laser cutting machines, CNC lathes, and metal bending machines. With a team of professional designers, engineers, and skilled installers, we ensure high-quality production and service.
