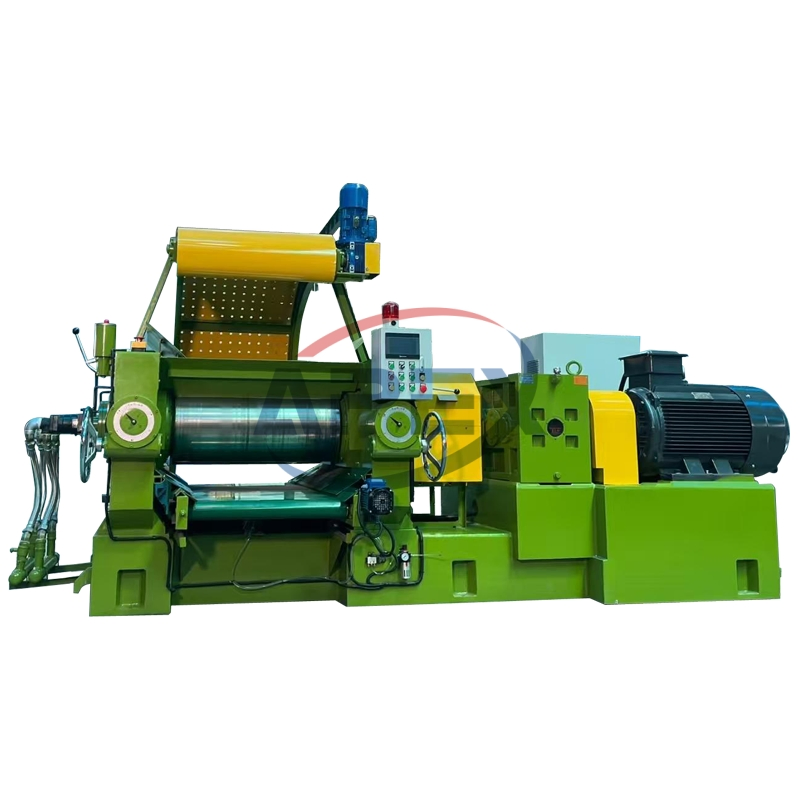

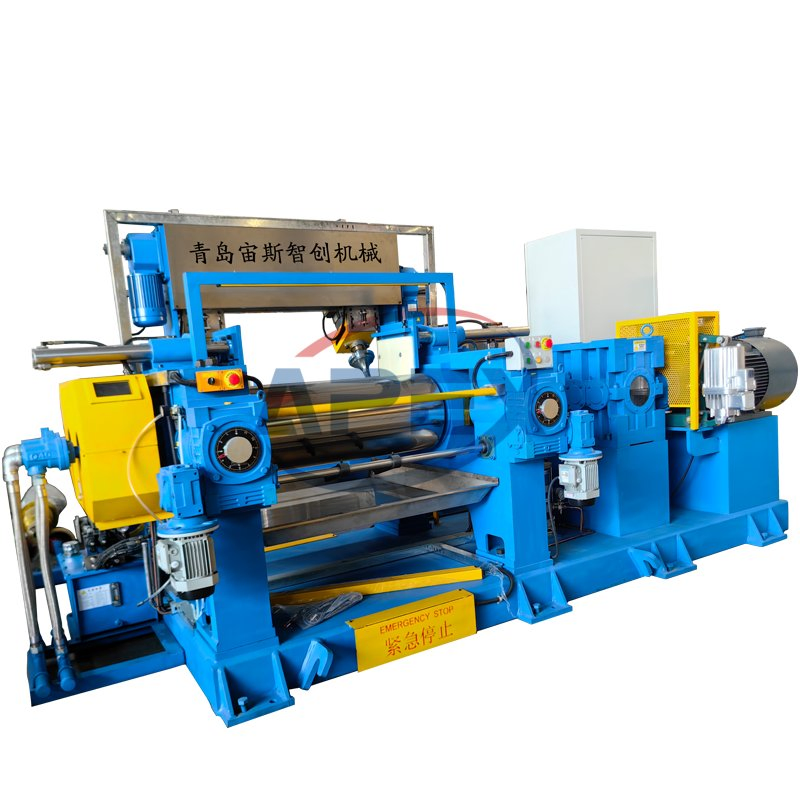

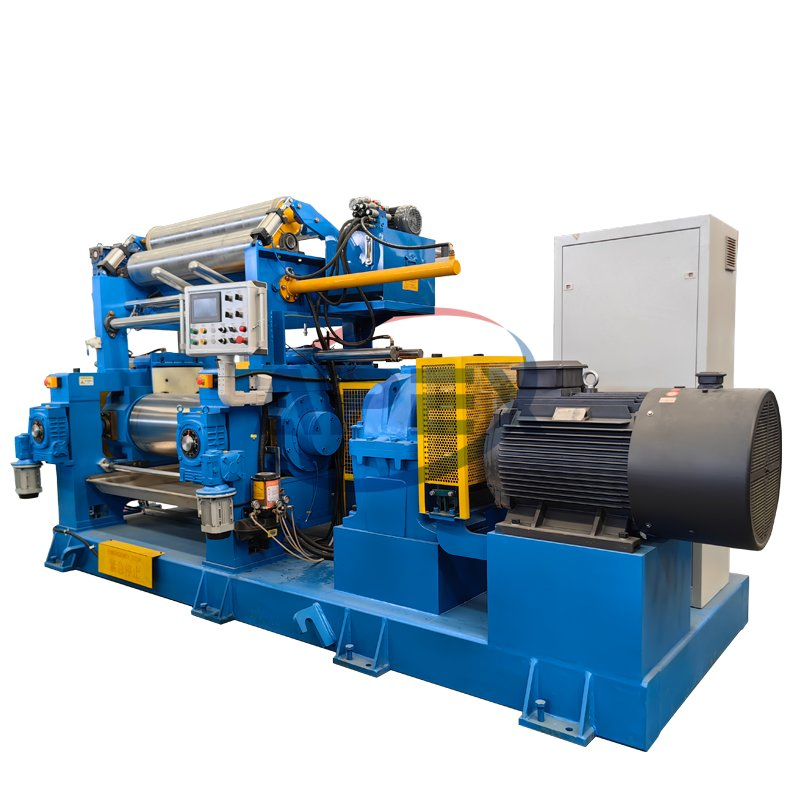

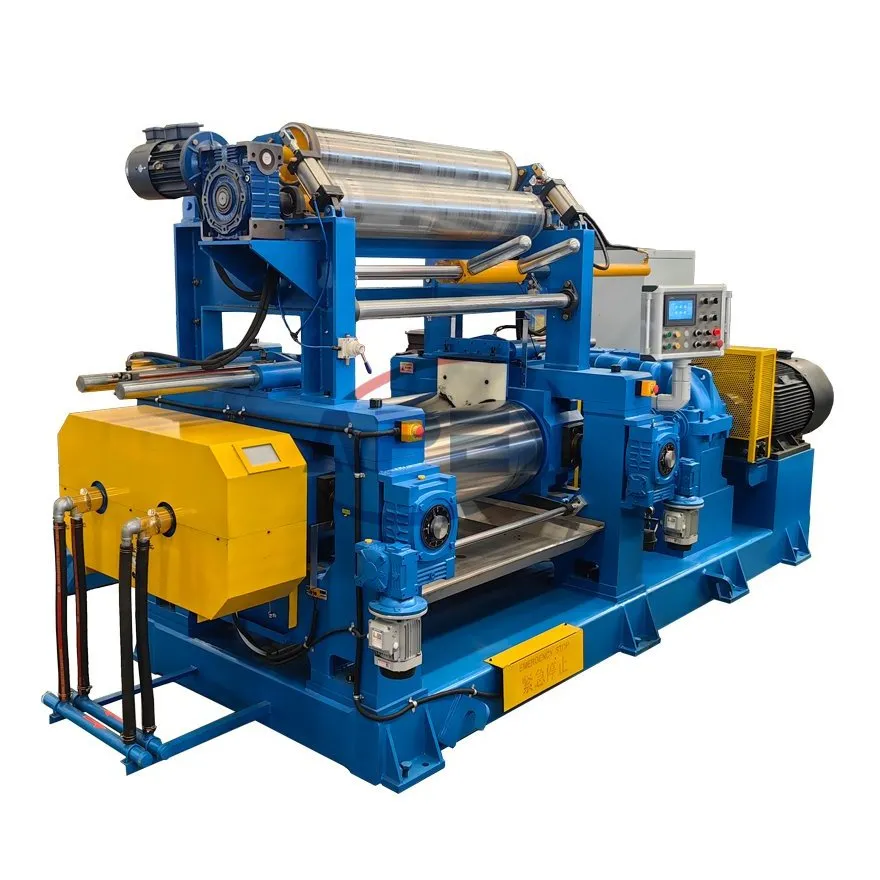

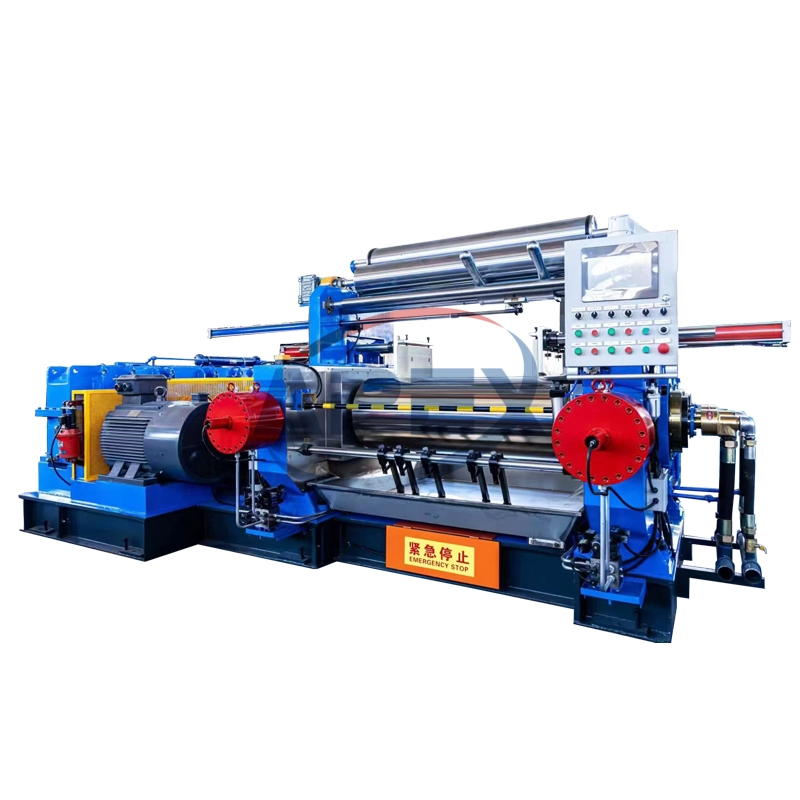

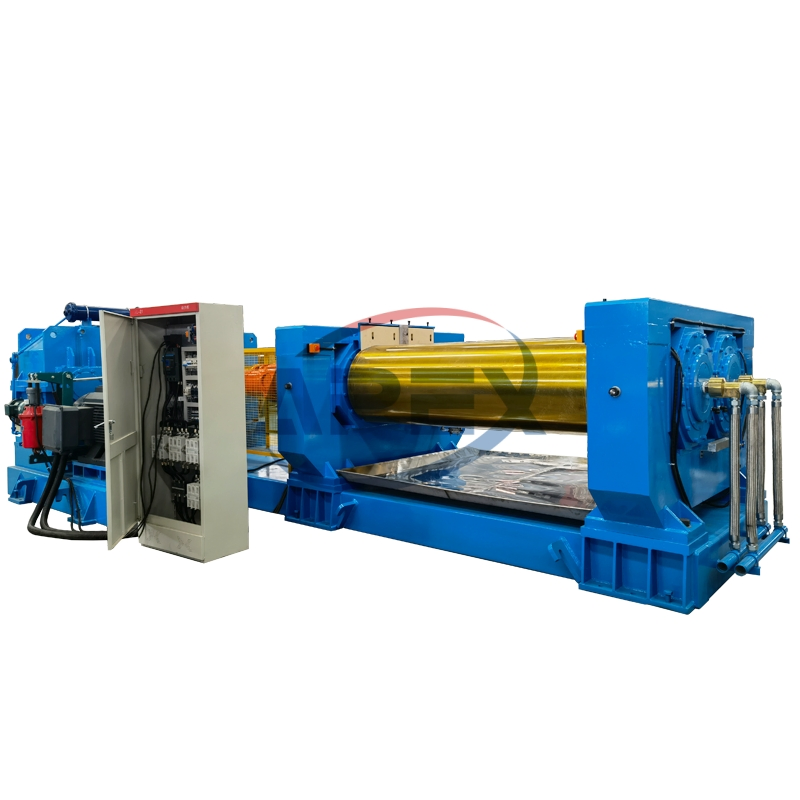

High-performance Rubber Mixing Mill for Manufacture of Rubber Products
Rubber mixing mill, also called two roll open mill, is an important mixing and rolling machine in rubber and plastic products industry. Designed with advanced technology, the rubber mill features HIGH AUTOMATION, ENERGY SAVING, HIGH EFFICIENCY, and EXCELLENT SAFETY.
| Model | XK-250/10in | XK-300/12in | XK-360/14in |
| Roller Size | φ250×620mm | φ300×750mm | φ360×900mm |
| Speed Ratio | 1:1.17 | 1:1.25 | 1:1.25 |
| Thickness | 0.5~8mm | 0.5~8mm | 0.5~10mm |
| Capacity | 10~15KG/Batch | 12~20KG/Batch | 15~25KG/Batch |
| Motor Power | 18.5kW | 22kW | 30kW |
| Model | XK-400/16in | XK-450/18in | XK-550/22in |
| Roller Size | φ400×1000mm | φ450×1200mm | φ550×1530mm |
| Speed Ratio | 1:1.27 | 1:1.27 | 1:1.2 |
| Thickness | 0.5~10mm | 0.5~10mm | 0.5~15mm |
| Capacity | 18~35KG/Batch | 30~60KG/Batch | 50~85KG/Batch |
| Motor Power | 37/45kW | 55kW | 110kW |

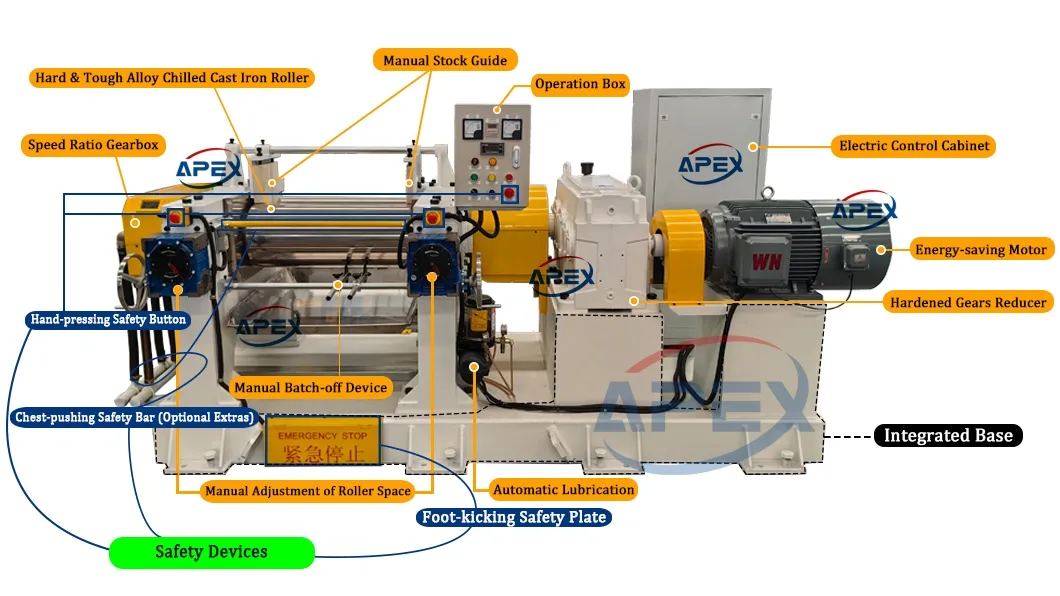

EASY to Install & SIMPLE to Operate

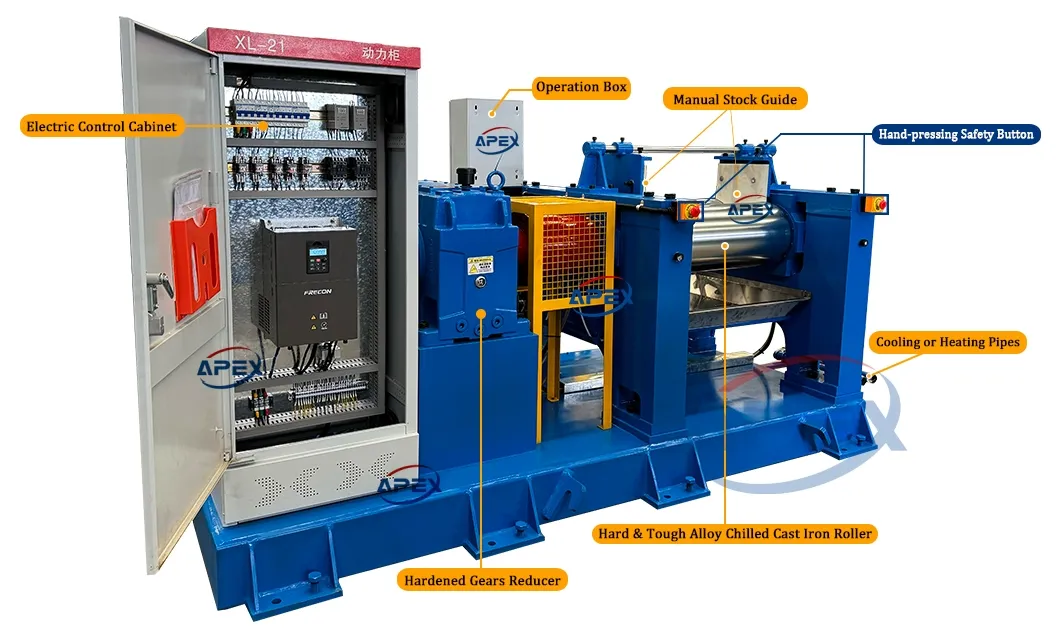

The mixing mill is equipped with an integrated base with foundation bolts. All components such as motor, reducer, roller and control cabinet are installed on the same base. No additional testing is required upon receipt. Designed for "QUICK USE" after landing.
Ensuring Operator SAFETY!
"ONLY 1/6 CIRCLE from the moment safety device is triggered to rollers stop running."

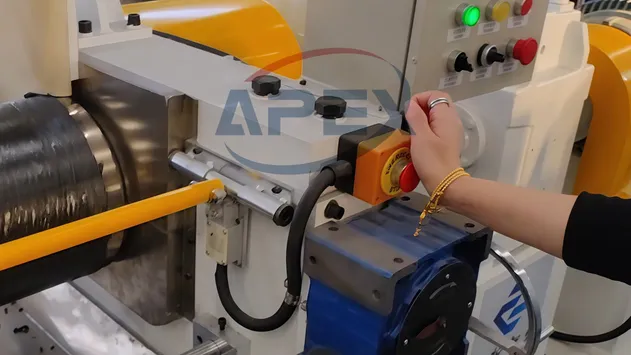

Hand-pressing Safety Button

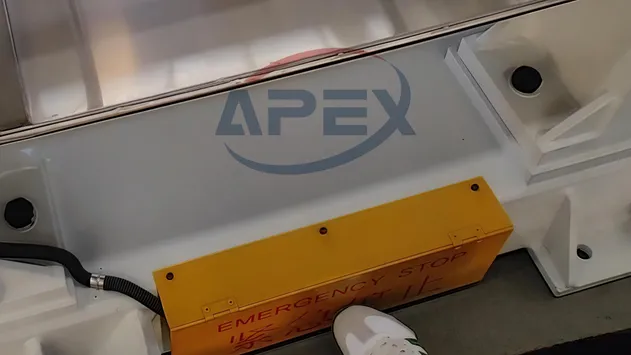

Foot-kicking Safety Plate

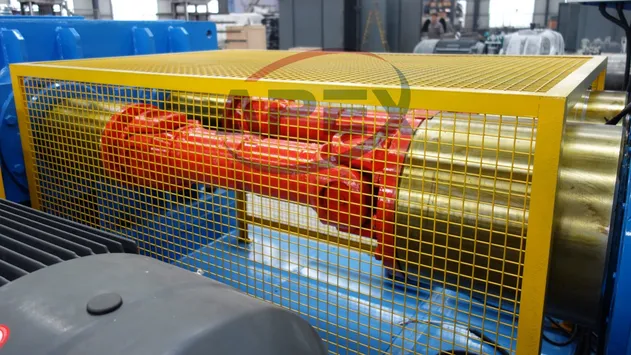

Safety Shield

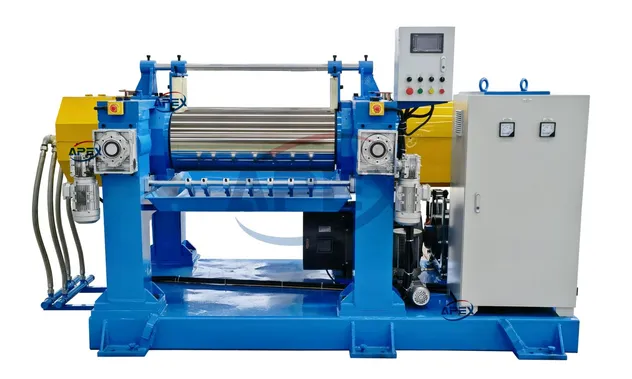

Space Saving Mill

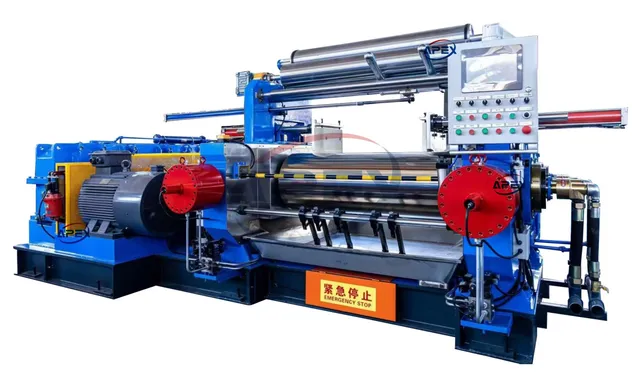

Double-shaft Mill
Silicone Rubber Mill
We take good care of goods during packaging and loading. Measures are taken before shipment to simplify the installation process at the destination.
