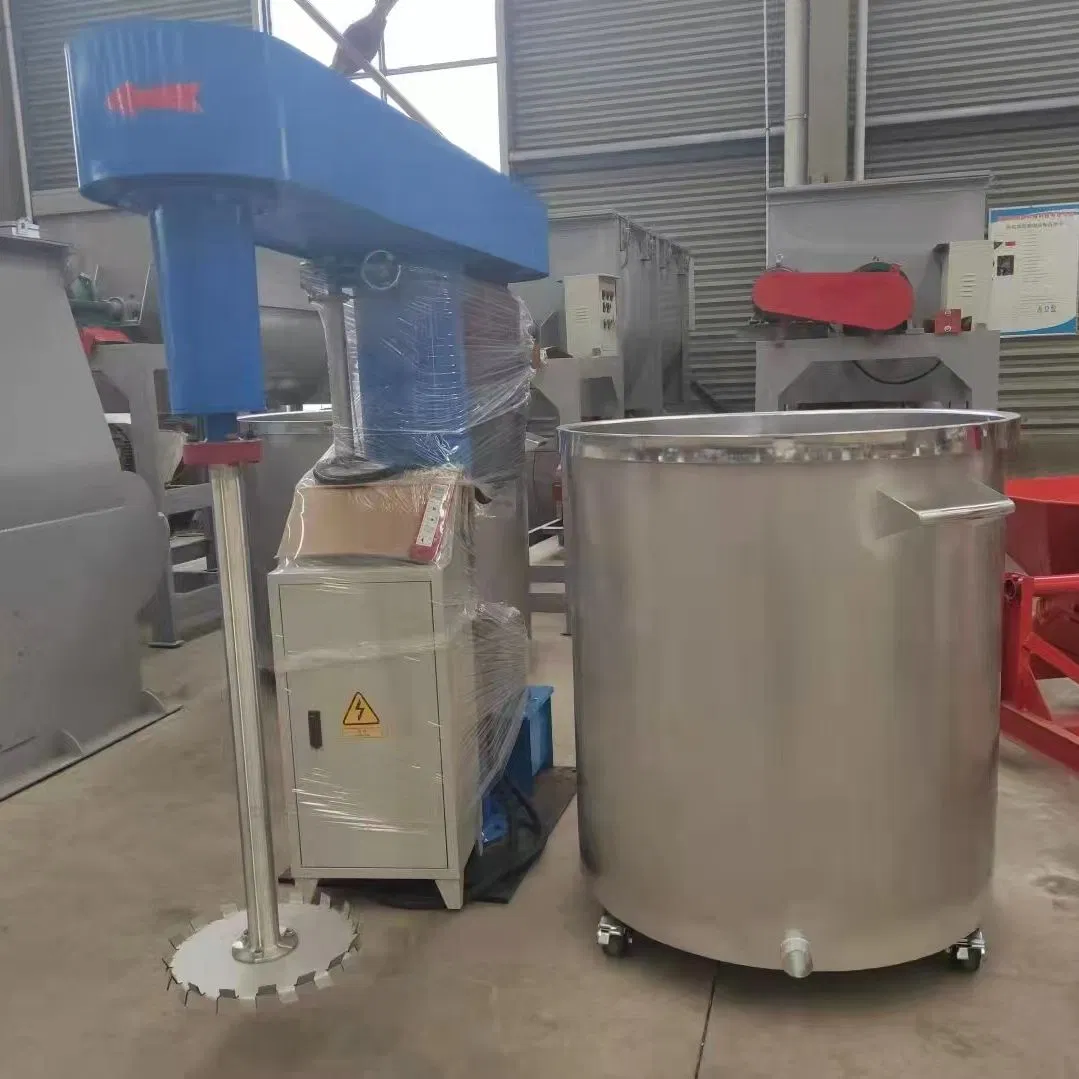

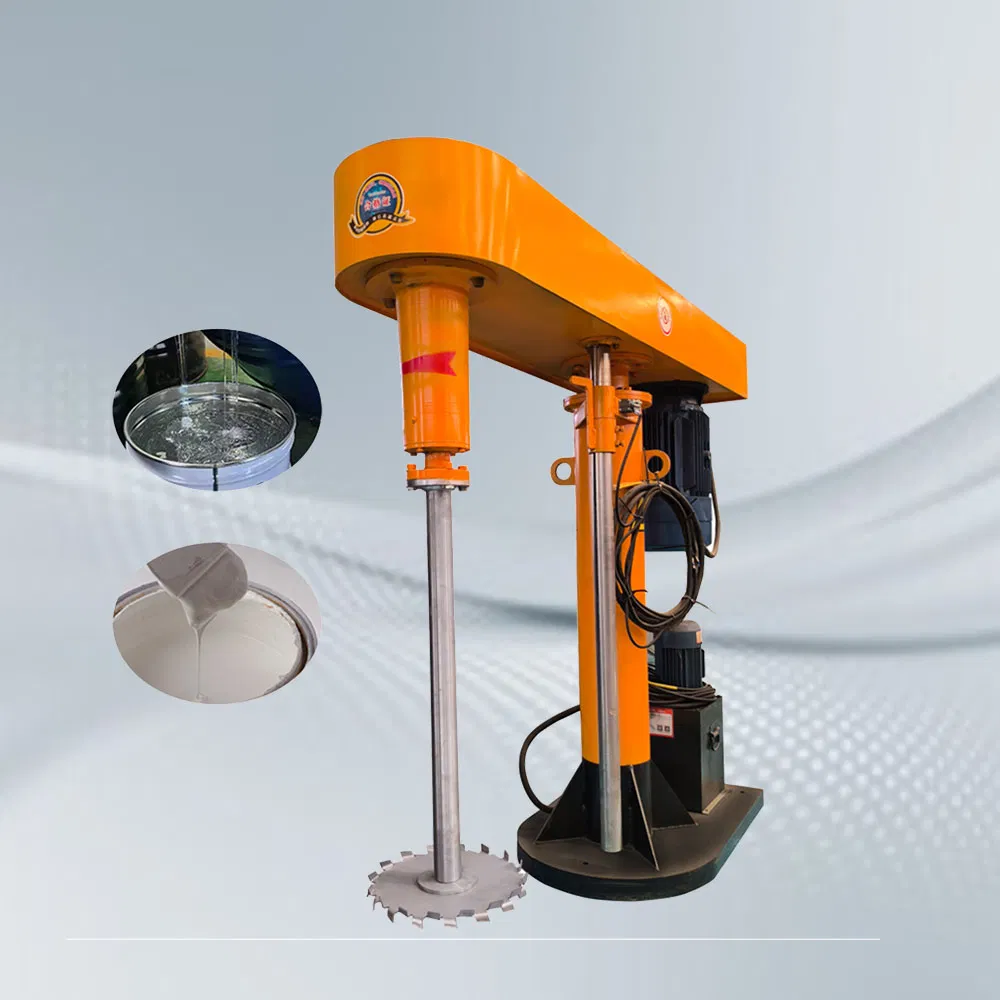

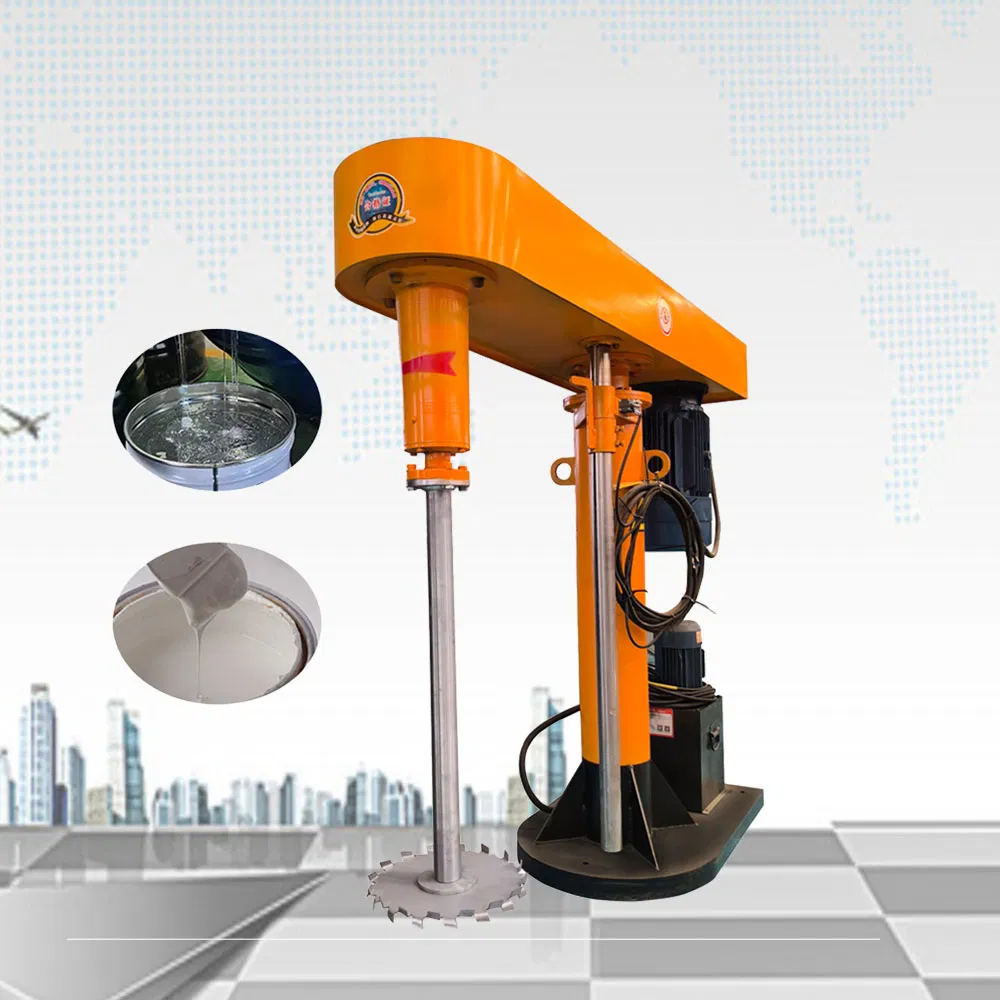

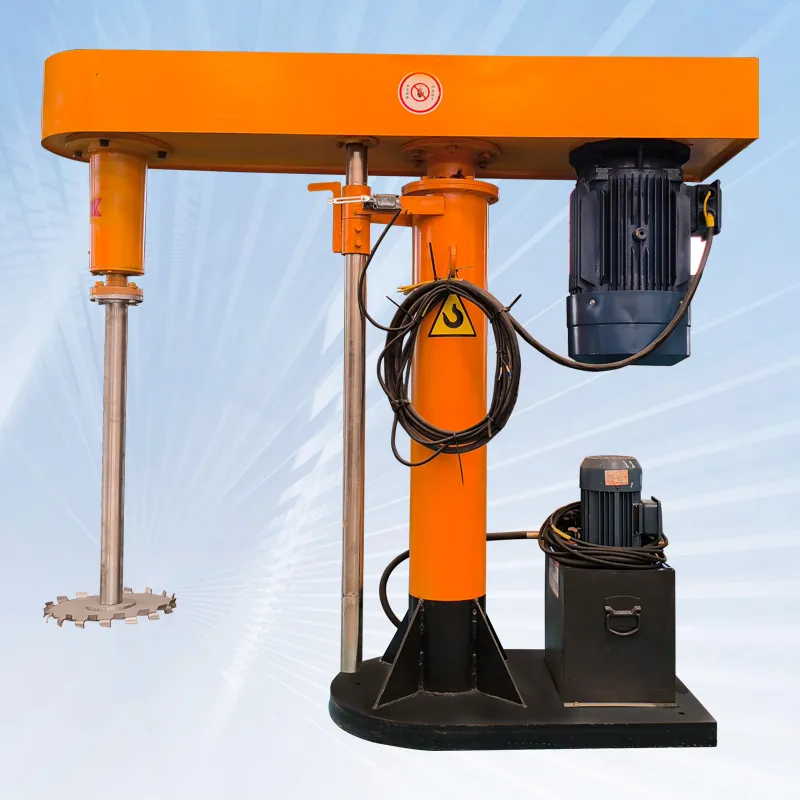

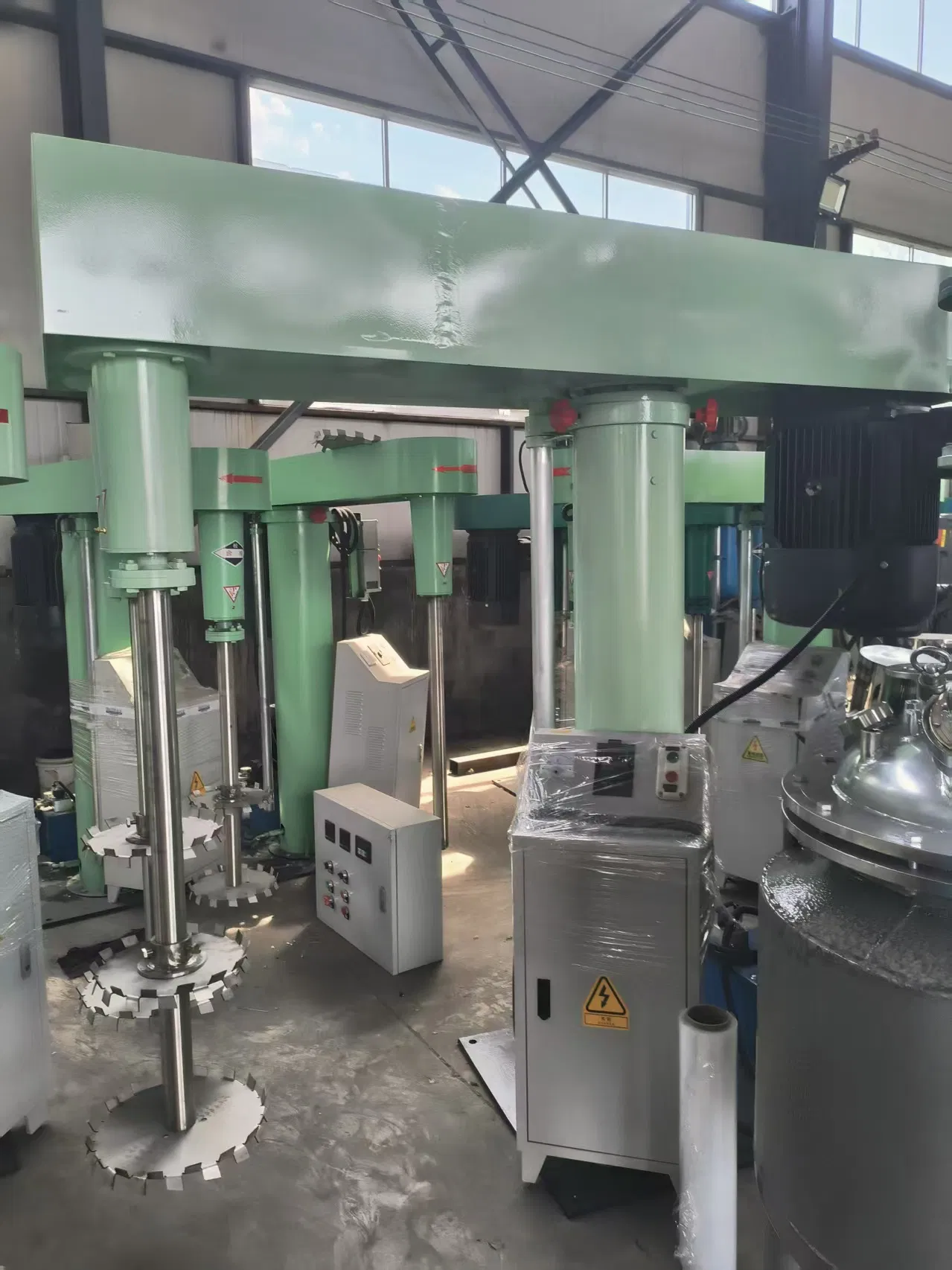

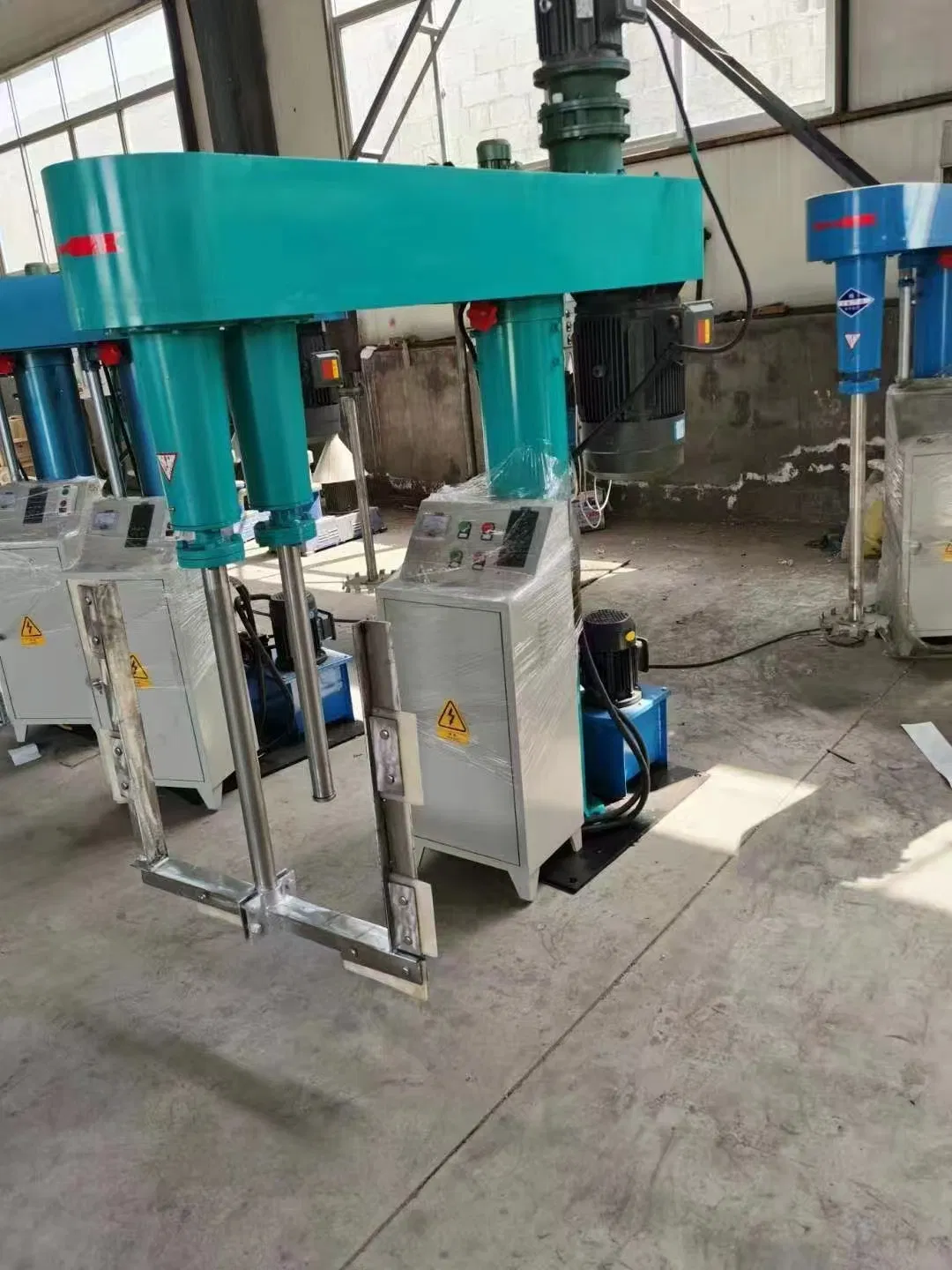

High speed dispersers are widely used as efficient mixing, dispersing, and dissolving equipment in industries such as coatings, inks, pigments, adhesives, pesticides, cosmetics, food, and pharmaceuticals.
The high-speed rotating disk generates vortices, sucking material into the center and throwing it towards the walls. Solid particles are torn apart by tremendous shear and friction forces, forming a stable suspension.

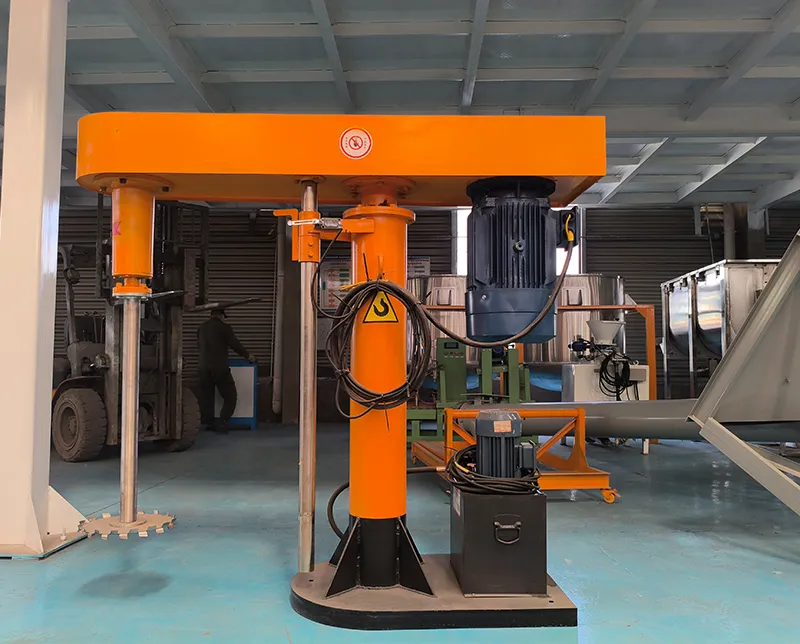

| Motor Model | Cylinder Size | Lifting Stroke | Disk Size | Hydraulic Power | Axis Diameter |
|---|---|---|---|---|---|
| 3kw | 300L | 800mm | 150mm | 1.1kw | 28mm |
| 5.5kw | 300L | 900mm | 200mm | 1.1kw | 55mm |
| 7.5kw | 500L | 900mm | 250mm | 2.2kw | 55mm |
| 15kw | 1000L | 900mm | 300mm | 2.2kw | 55mm |
| 30kw | 2000L | 1200mm | 450mm | 2.2kw | 60mm |
| 45kw | 3000L | 1200mm | 450mm | 2.2kw | 60mm |
Industry Solutions
Widely used in industries such as construction, building materials, chemical, powder, mortar, putty, coatings, etc.
Standard Warranty: 12 months or 2,000 operating hours.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.
