Basic Specifications
Model NO.
XK400 XK450 XK560 XK610 XK660 XK360 XK300 XK250
Roll Material
Chilled Cast Iron, Hardness HS75
Bearing
High-Temperature Resistance Bearing

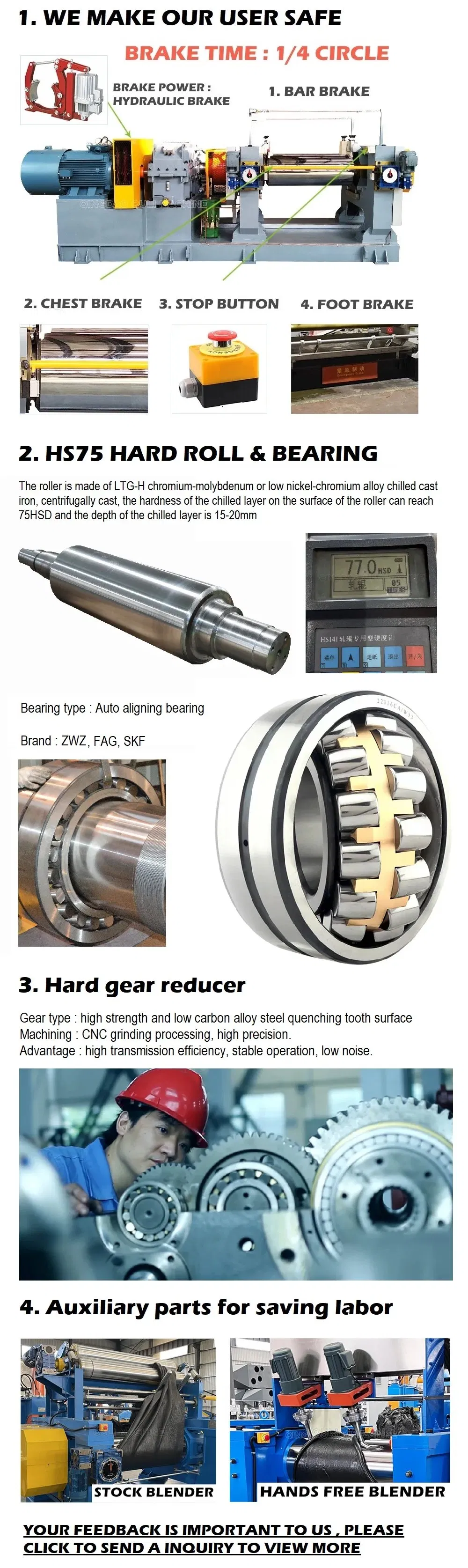

Safety Device
Hydraulic Disc-Brake / Safety Button / Foot Brake
Usage
Rubber or Plastic Mixing
Product Overview
⚙

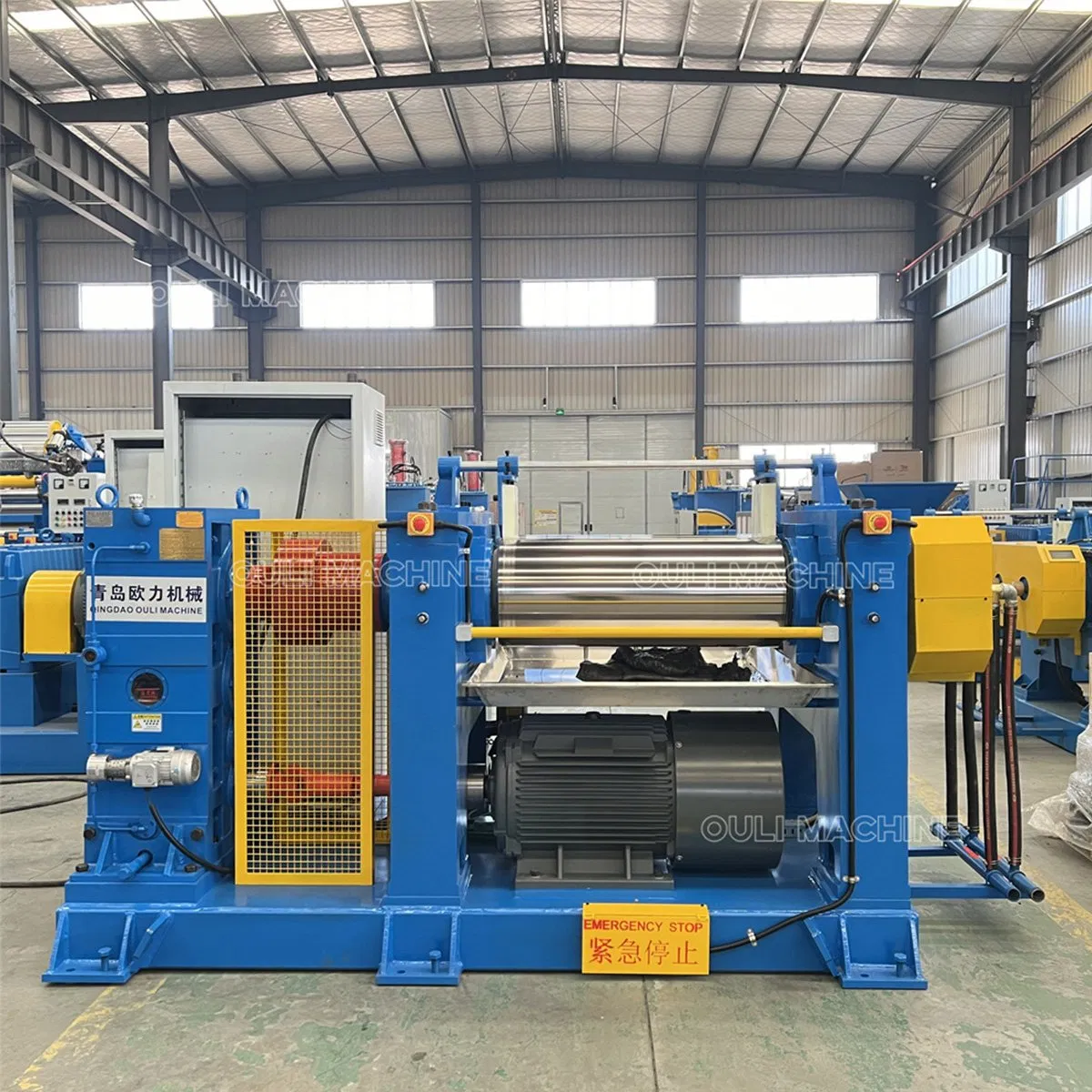

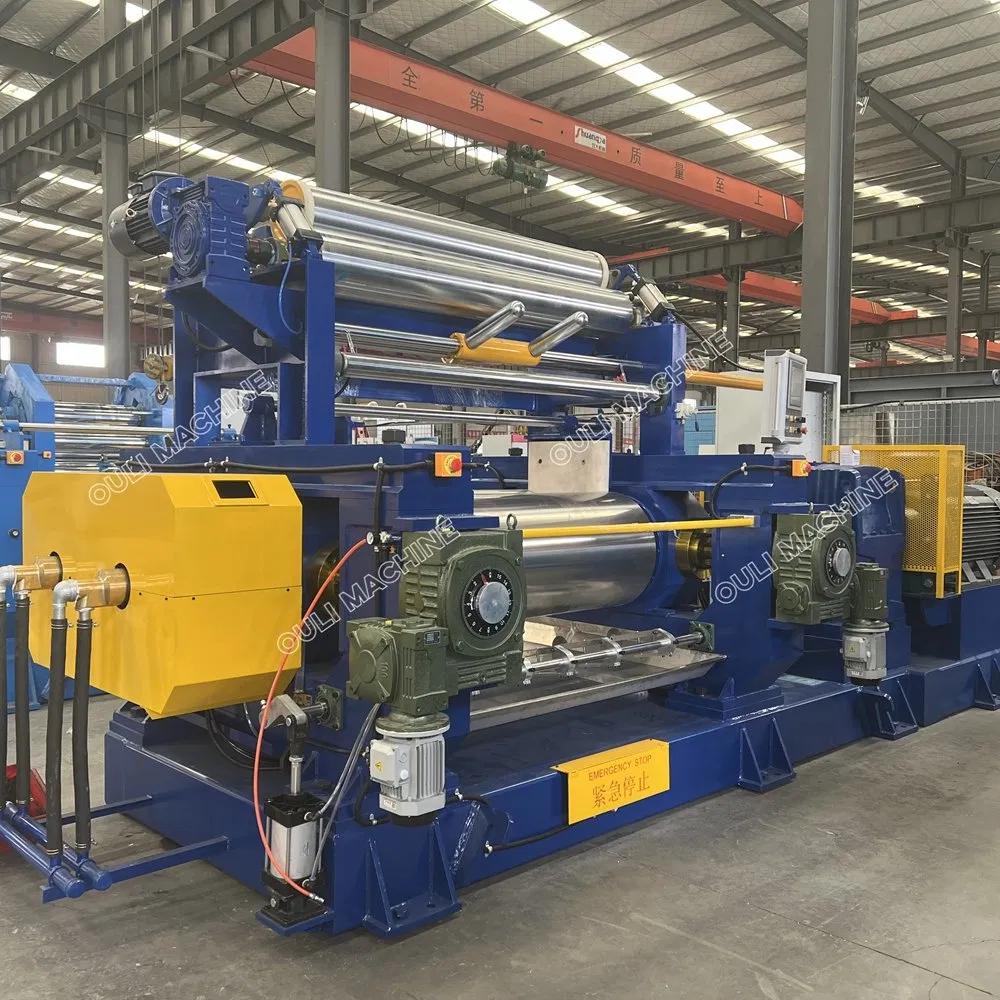

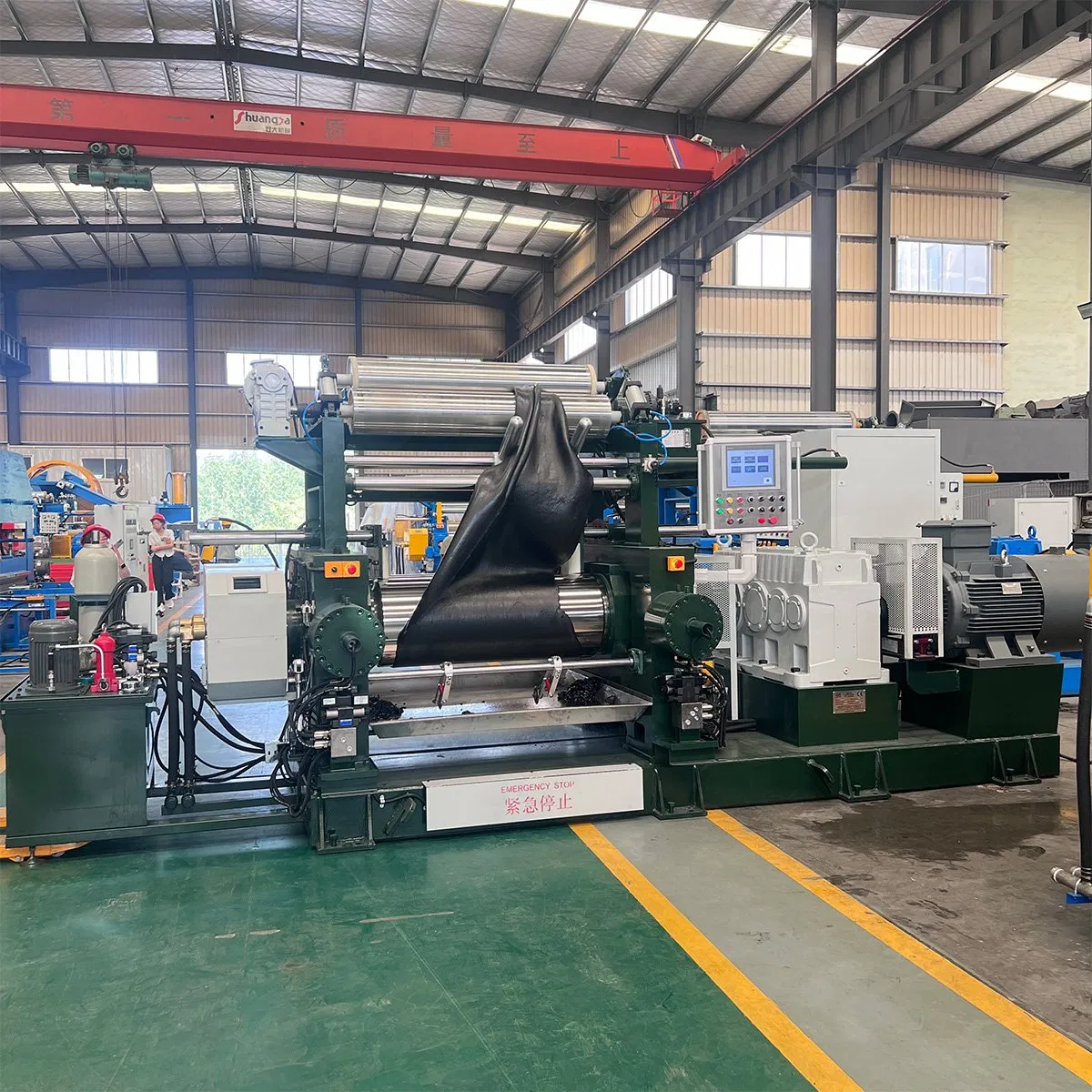

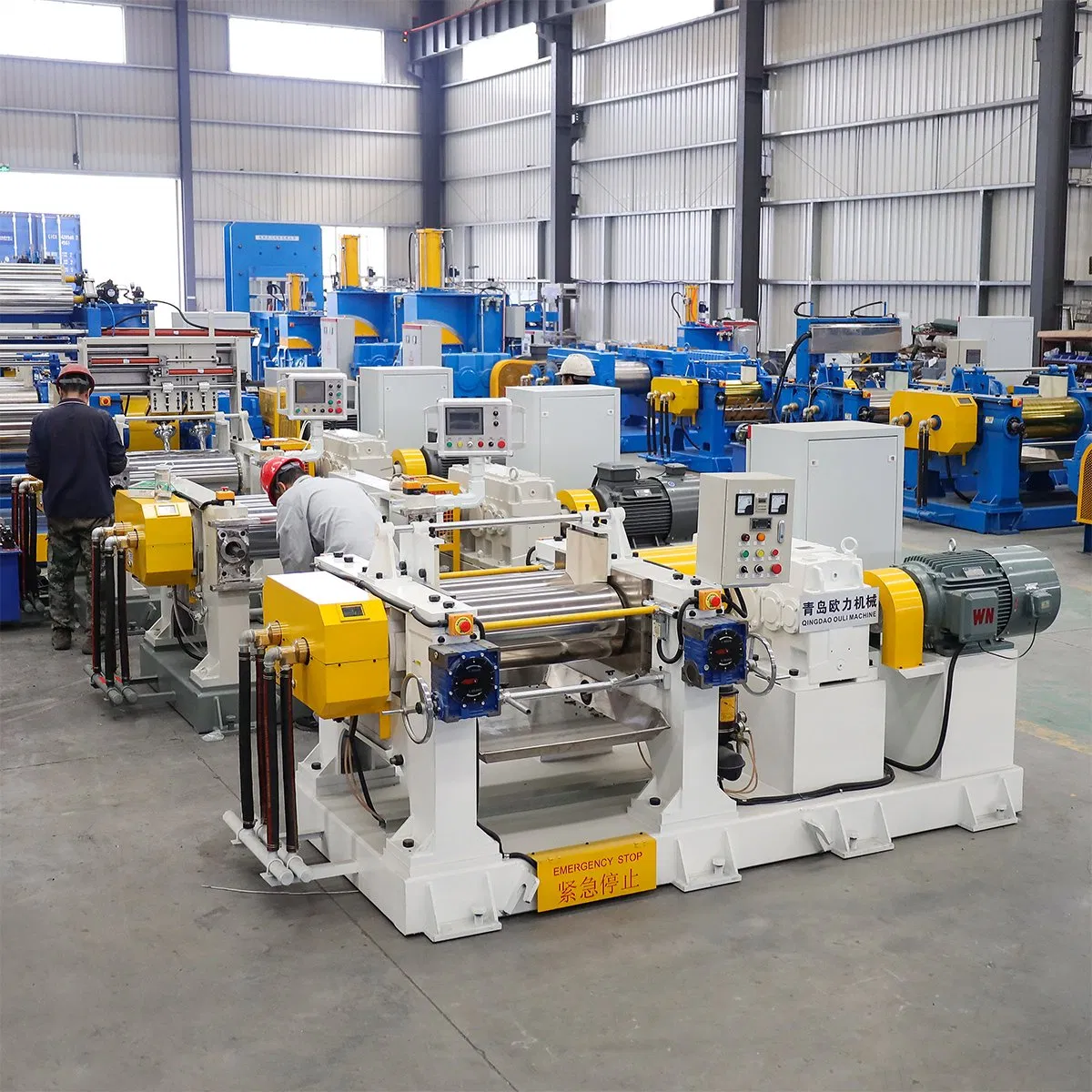

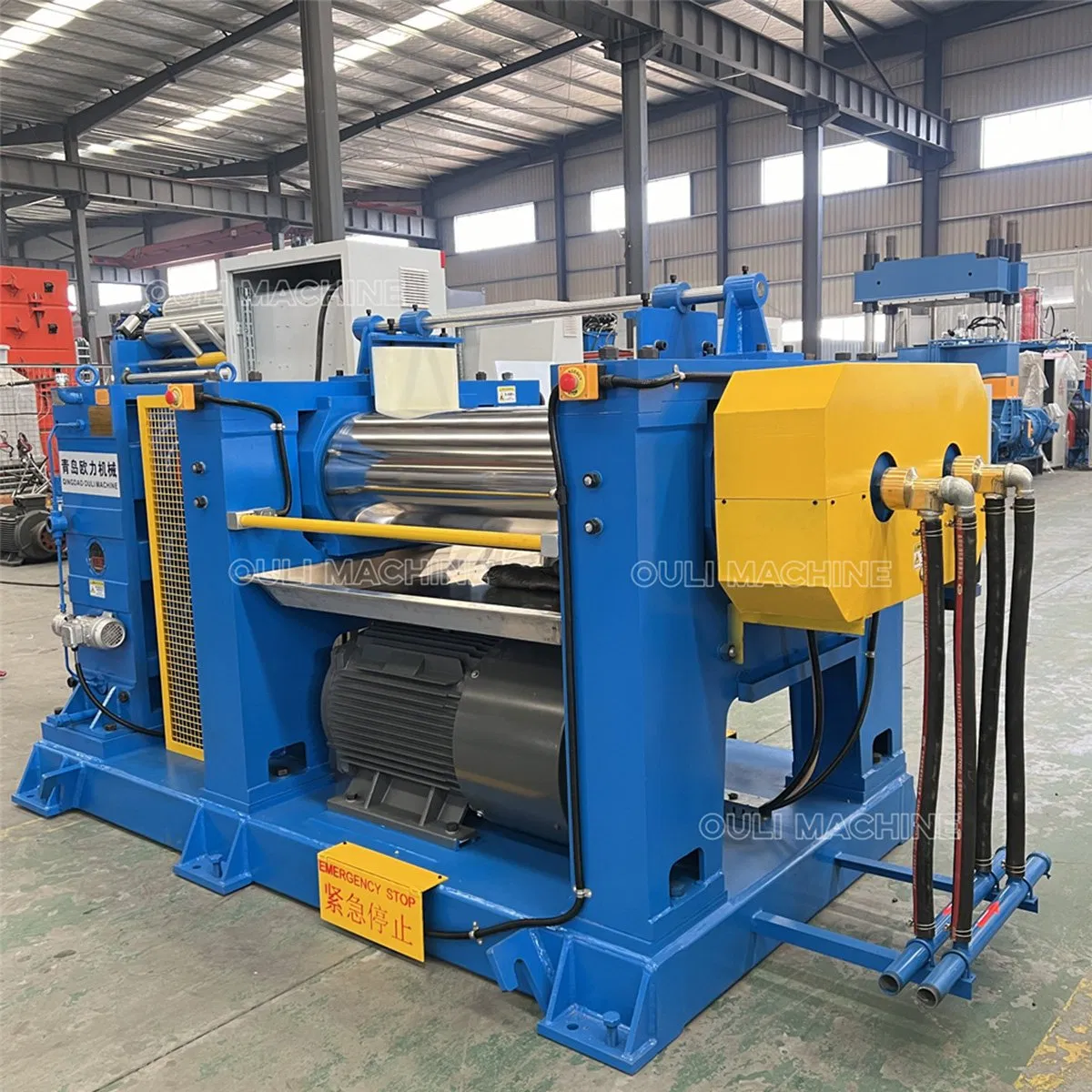

Automatic Manual Two Roll Open Type Rubber Mixing Mill
20 Years Experience in direct factory production for open type two roll rubber mixing mills with stock blenders.
Rubber mixing mill is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A. with chemicals into final materials. These materials can be fed to calendars, hot presses, or other processing machines for rubber or plastic product manufacturing.

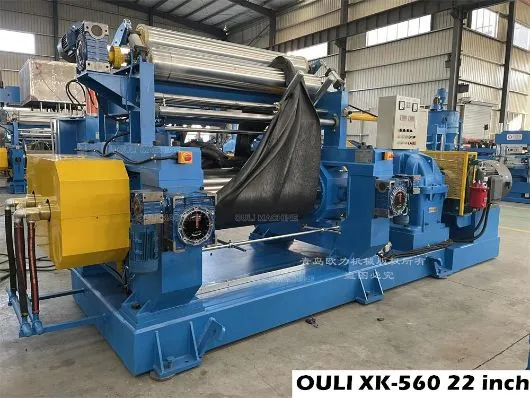

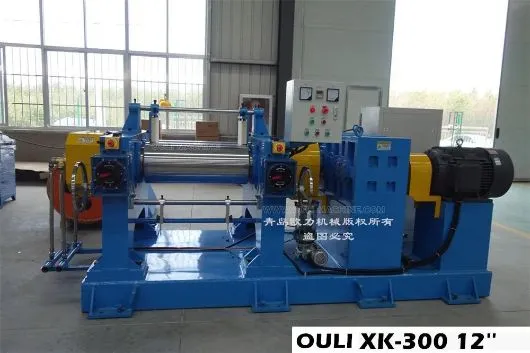

Machine Details & Components
Technical Parameters
| Parameter/model |

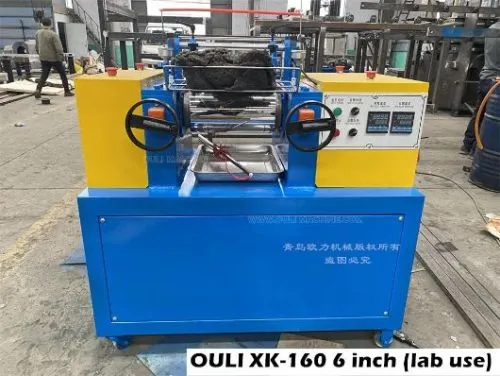

XK-160 |
XK-250 |
XK-300 |

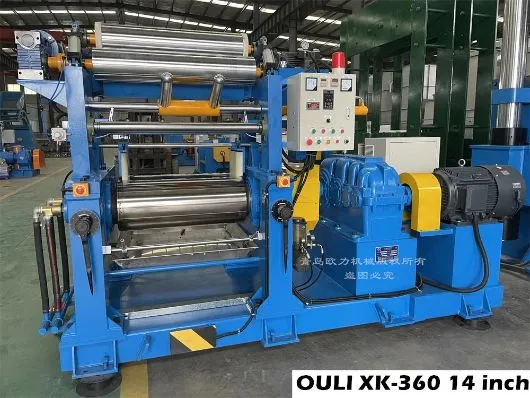

XK-360 |

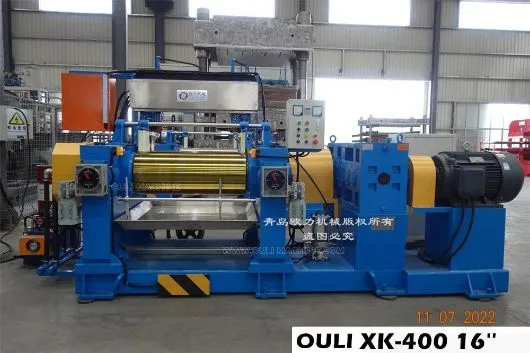

XK-400 |
| Roll diameter(mm) | 160 | 250 | 300 | 360 | 400 |
| Working length (mm) | 320 | 620 | 750 | 900 | 1000 |
| Capacity (kg/batch) | 4 | 15 | 20 | 30 | 40 |
| Front roll speed (m/min) | 10 | 16.96 | 15.73 | 16.22 | 18.78 |
| Motor power (KW) | 5.5 | 18.5 | 22 | 30 | 37 |
| Weight (KG) | 1000 | 3150 | 5000 | 6892 | 8000 |
| Parameter/model |

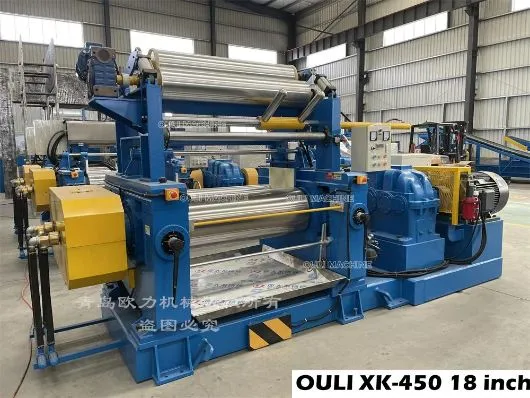

XK-450 |
XK-560 |
XK-610 |
XK-660 |
XK-710 |
| Roll diameter(mm) | 450 | 560/510 | 610 | 660 | 710 |
| Working length (mm) | 1200 | 1530 | 2000 | 2130 | 2200 |
| Capacity (kg/batch) | 55 | 90 | 120-150 | 165 | 150-200 |
| Front roll speed (m/min) | 21.1 | 25.8 | 28.4 | 29.8 | 31.9 |
| Motor power (KW) | 55 | 90/110 | 160 | 250 | 285 |
| Weight (KG) | 12000 | 20000 | 44000 | 47000 | 51000 |
Product Range & Capabilities
Specialized in rubber machinery design, manufacturing, and maintenance. Main equipment categories include:
- Rubber mixing equipment (Kneader, Mixing Mill)
- Rubber vulcanizing presses
- Waste tire recycling equipment
- Rubber calendaring lines
- Rubber extruding equipment
- Reclaimed rubber production lines
- Paper roll cutting machinery
Frequently Asked Questions
Are you an integrated supplier for rubber and plastic machines?
Yes, we provide complete solution lines customized to specific client requirements, covering everything from individual machines to full production setups.
How is quality control managed during production?

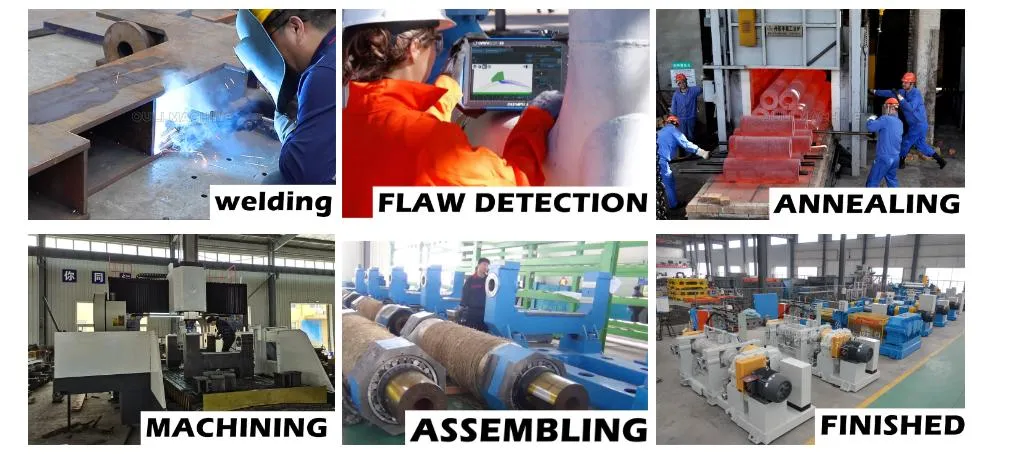

We follow a Standard Operation Procedure (SOP) for every production step. Each machine undergoes at least 72 hours of automatic running and careful inspection before shipment.
What pre-sales support do you offer?
Our experienced team supports customers with machine selection, technology consulting, and factory layout planning including water and electrical requirements.
Do you provide on-site installation and training?
Yes, technical engineers are available for overseas service to assist with machine installation, commissioning, and staff training.
What is the typical delivery time for the machinery?
Delivery time depends on the specific machine options. Standard machines are typically delivered within 10 to 30 days.
What is the warranty period and do you provide spare parts?
The standard warranty period is 12 months for the whole machine. We also provide a set of standard spare parts with each machine.
