25m3 35m3 50m3 75m3 Foundation-Free Concrete Mixing Bathing Plant Factory Price
25m3 35m3 50m3 75m3 Foundation-Free Concrete Mixing Bathing Plant Factory Price
25m3 35m3 50m3 75m3 Foundation-Free Concrete Mixing Bathing Plant Factory Price
25m3 35m3 50m3 75m3 Foundation-Free Concrete Mixing Bathing Plant Factory Price
25m3 35m3 50m3 75m3 Foundation-Free Concrete Mixing Bathing Plant Factory Price
1 / 5
25m3 35m3 50m3 75m3 Foundation-Free Concrete Mixing Bathing Plant Factory Price
25m3 35m3 50m3 75m3 Foundation-Free Concrete Mixing Bathing Plant Factory Price
25m3 35m3 50m3 75m3 Foundation-Free Concrete Mixing Bathing Plant Factory Price
25m3 35m3 50m3 75m3 Foundation-Free Concrete Mixing Bathing Plant Factory Price
25m3 35m3 50m3 75m3 Foundation-Free Concrete Mixing Bathing Plant Factory Price

25m3 35m3 50m3 75m3 Foundation-Free Concrete Mixing Bathing Plant Factory Price

Customization: Available
After-sales Service: Free Operation and Maintenance Training
Warranty: 12 Months
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
FHZS25 FHZS35 FHZS50 FHZS75
Type
Concrete Mixing Plant
Shotcrete Type
Wet
Machining Process
Concrete Wet Mix
Productivity
25m³/h
Feeding Height
3000m
Certification
ISO9001: 2000, CE
Condition
New
HS Code
8474310000
Capacity
25 M3/H
📦

Packaging & Delivery

Package Size
900.00cm * 220.00cm * 240.00cm
Gross Weight
5000.000kg
Transport Package
Nude Packing
⚙

Product Parameters

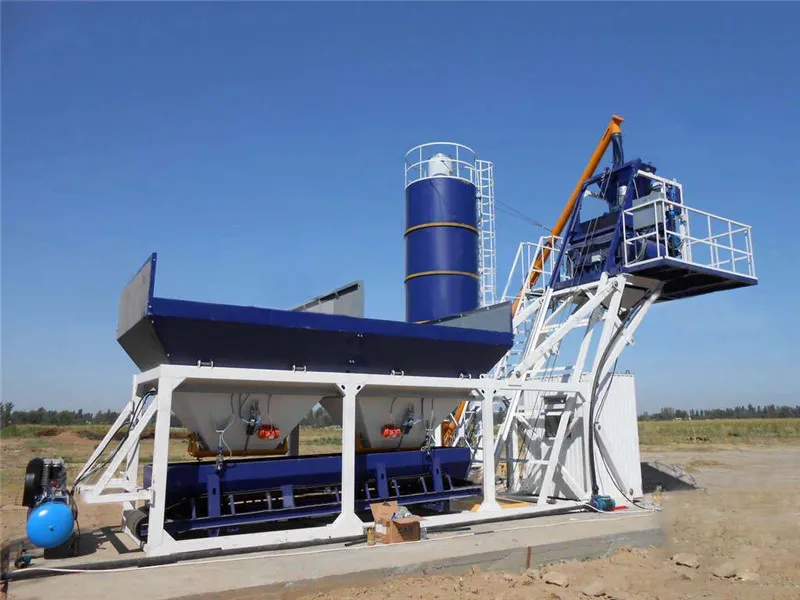

Foundation-Free Concrete Mixing Plant Parameters
Model FHZS25 FHZS35 FHZS50 FHZS75
Production Capacity (m³/h) 25 35 50 75
Concrete Mixer JS500 JS750 JS1000 JS1500
Aggregate Feeding Mode Skip Hoist Skip Hoist Skip Hoist Skip Hoist
Aggregate Batcher PLD800 PLD1200 PLD1600 PLD2400
Max. Aggregate Size (mm) 60/80 60/80 60/80 60/80
Discharging Height (m) 3.8 3.8 4.1 4.1
Total Weight(T) 10 13.5 18.5 25
Total Power (kw) 65 75 100 110
Control System Panel Computer Computer Computer
🛠

Installation Instructions

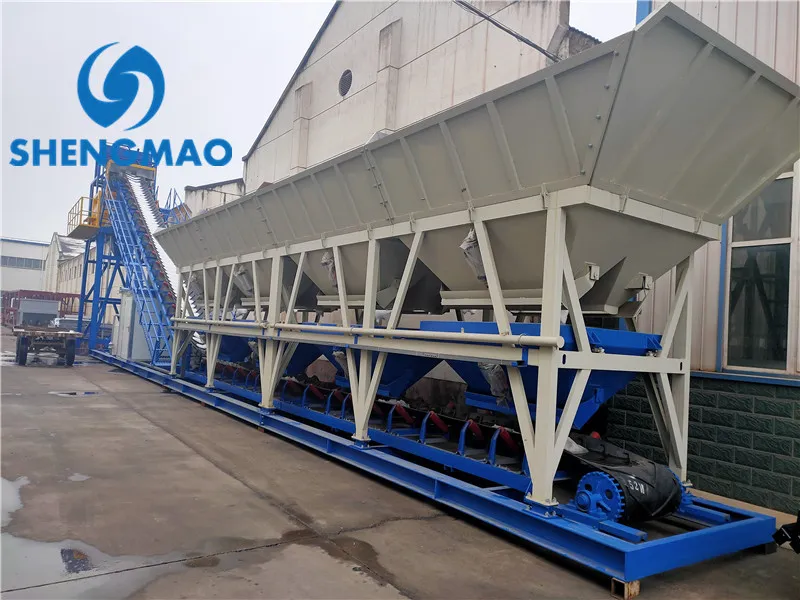

Aggregate batching machine assembly
Detailed assembly of aggregate batching machine with three bins and belt weighing system.

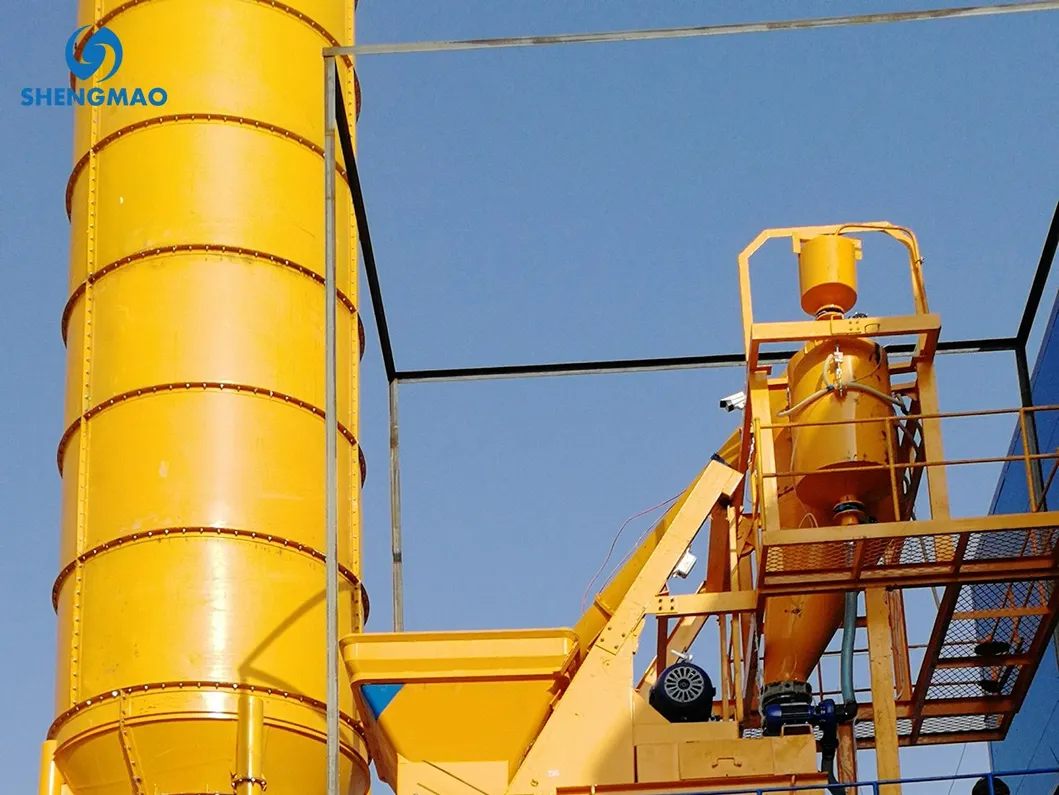

Cement silo installation
Installation of cement silo (50~2000t options available). Foundation is prepared before installation.

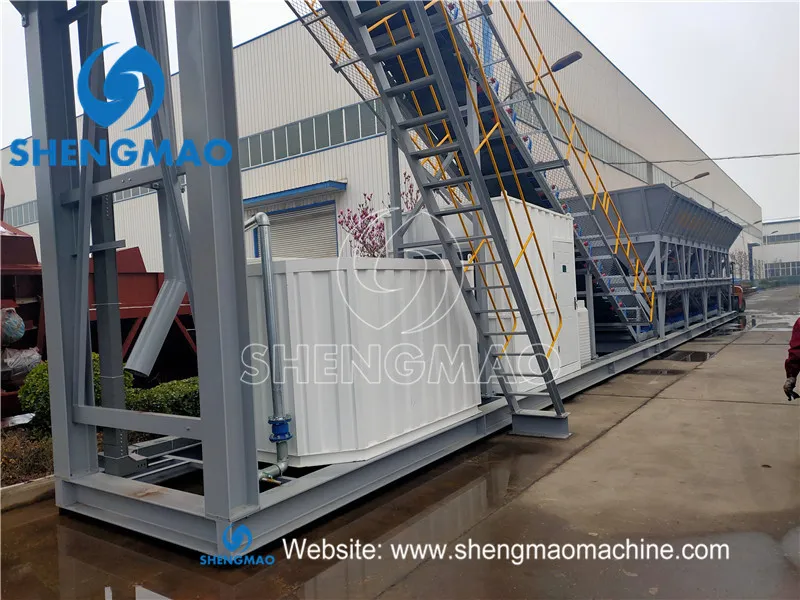

Control system and conveyor
Belt conveyor setup and fully automatic control system with monitors.
🏗

Our Projects

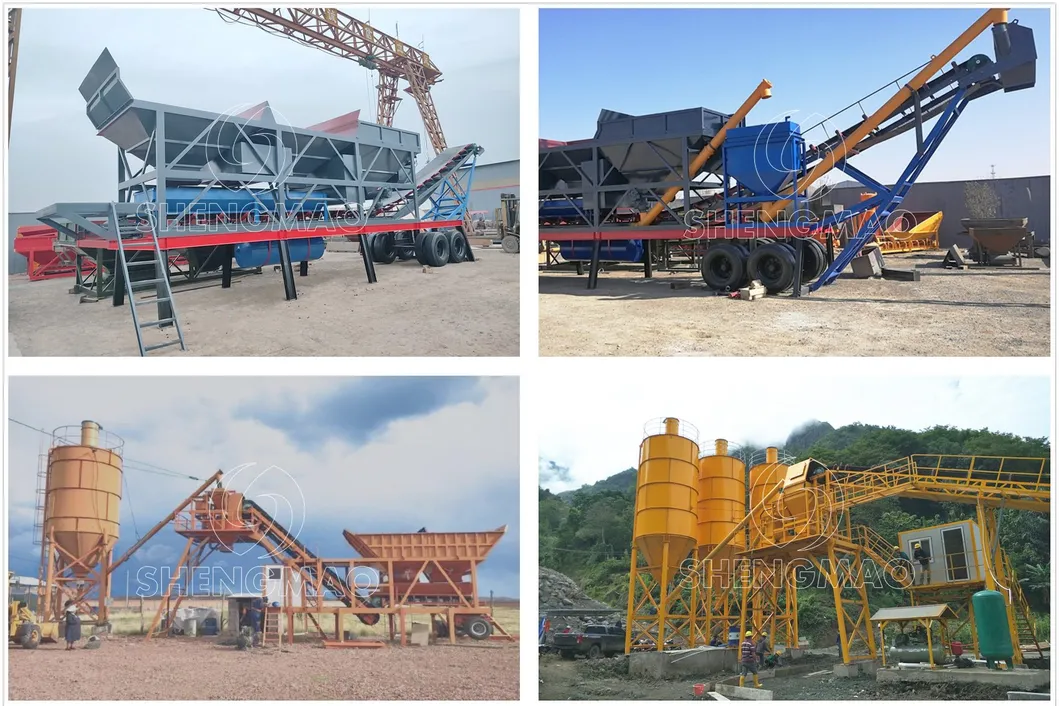

Project Case 1
Project Case 2
★

Professional Services

Pre-sale Service
  • Answering customers' questions, helping choose suitable machines
  • Making design drawings as per requirements
  • Providing quotations
In-sale Service
  • Strict procedure control from raw materials to pre-assembly
  • Regular production progress updates
  • Pre-assembly and test running before delivery
  • Proper packing and foundation drawing provision
After-sale Service
  • 7 * 24 hours online after-sales support
  • Providing certificates, clearance documents, and manuals
  • Engineer site visits for installation and training
  • Spare parts supply and annual site visits
?

Frequently Asked Questions

What models of foundation-free concrete batching plants are available?
We offer four main models: FHZS25, FHZS35, FHZS50, and FHZS75, covering a wide range of production needs.
What is the production capacity of these mixing plants?
The capacity ranges from 25m³/h for the FHZS25 model up to 75m³/h for the FHZS75 model.
What type of control system do the plants use?
The FHZS25 utilizes a panel control system, while the FHZS35, FHZS50, and FHZS75 are equipped with advanced computerized control systems.
What are the weight and power requirements for the FHZS50 model?
The FHZS50 has a total weight of 18.5 tons and requires a total power of 100 kw.
Do you provide on-site installation support?
Yes, we arrange engineers to visit the client's job site to assist with machine installation, test-running, and operator training.
What kind of weighing accuracy can be expected?
The plants achieve ±2% accuracy for aggregate weighing and ±1% accuracy for cement, water, and additive weighing.
