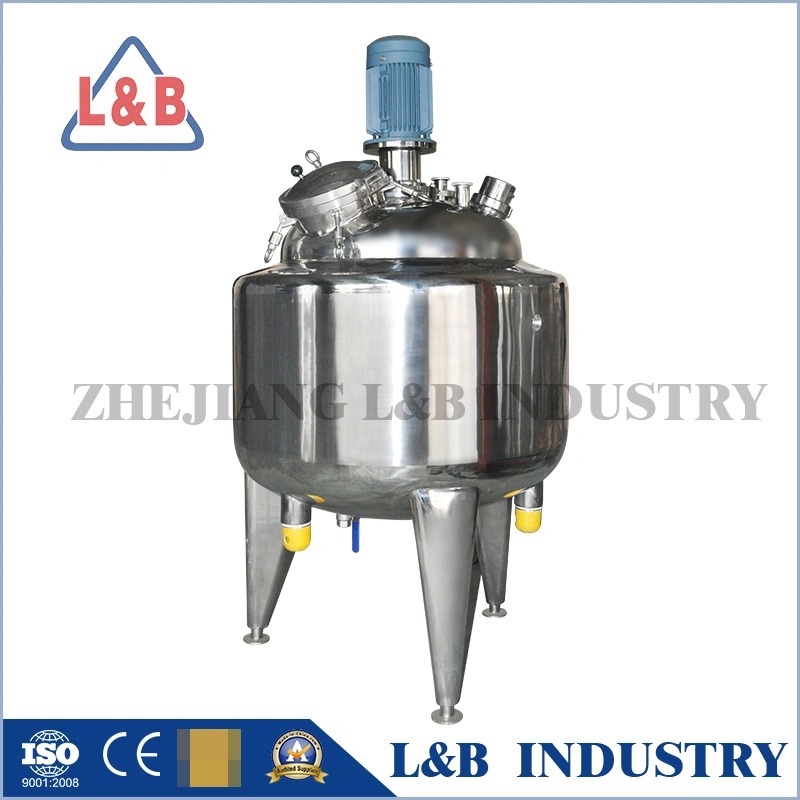

Customized 100L 500 Liters Stainless Steel Mixer Double Jacket Heater Mixing Tank
Customized 100L 500 Liters Stainless Steel Mixer Double Jacket Heater Mixing Tank
Customized 100L 500 Liters Stainless Steel Mixer Double Jacket Heater Mixing Tank
Customized 100L 500 Liters Stainless Steel Mixer Double Jacket Heater Mixing Tank
Customized 100L 500 Liters Stainless Steel Mixer Double Jacket Heater Mixing Tank
1 / 5
Customized 100L 500 Liters Stainless Steel Mixer Double Jacket Heater Mixing Tank
Customized 100L 500 Liters Stainless Steel Mixer Double Jacket Heater Mixing Tank
Customized 100L 500 Liters Stainless Steel Mixer Double Jacket Heater Mixing Tank
Customized 100L 500 Liters Stainless Steel Mixer Double Jacket Heater Mixing Tank
Customized 100L 500 Liters Stainless Steel Mixer Double Jacket Heater Mixing Tank

Customized 100L 500 Liters Stainless Steel Mixer Double Jacket Heater Mixing Tank

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
BLS
Application
Liquid with Suspended Solids, Viscous Fluid, Liquid
Application Area
Food, Dairy, Pharmacy
Certification
CE, ISO
Heating Method
Steam or Electric Heating
Main Material
Stainless Steel 304 or 316L
Capacity
50L-20,000L
Power
0.37-7.5kw
Tank Type
Seal Top, Open Cover, Cone Type
Agitator
Scraper, Frame, Paddle, Homogenizer
Finish
Mirror or Matt Polish; Ra<0.4um
Operating type
Continuous Operating

Product Description

Name: Stainless steel jacketed mixing tank

Material: Sanitary SS304, SS316

■ Applicable Range:

  • Used as liquid storage tank, liquid composing tank, liquid blending tank, and hot water tank.
  • Ideal for food, dairy products, fruit juice beverages, pharmacy, and chemical industries.

■ Structure Characteristics:

  • Internal tank and external package with heat preservation materials.
  • All materials are sanitary stainless steel.
  • Humanized design for easy operation.
  • Interior arc transitions ensure no sanitary dead corners.

■ Standard Configuration:

Quick open manhole
CIP cleaners
Insect resistant breathing cover
Adjustable triangular bracket
Dismountable input pipe
Eddy-proof board

Product Parameters

Effective Volume (L) Tank Dimension (mm) Total Height (mm) Inlet/Outlet Dia (mm)
500840*1000225038
10001060*1500285051
20001340*1500290051
50001810*2000350051
100002300*2440405051
200002640*3660540051

Detailed Photos & Certifications

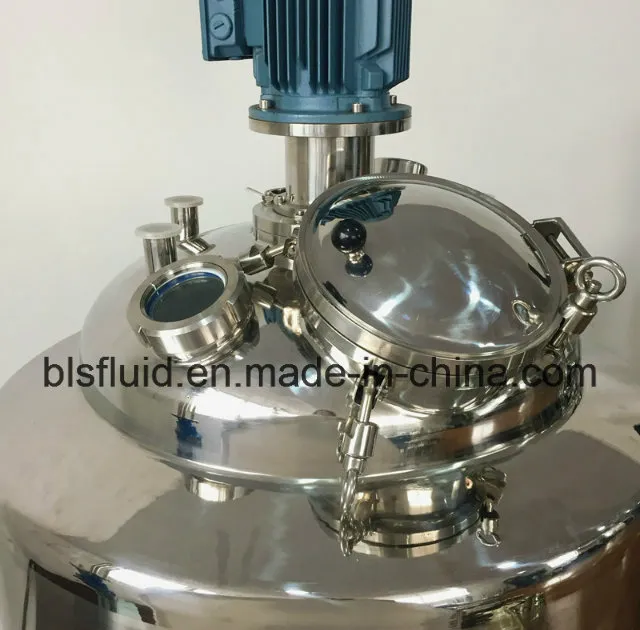

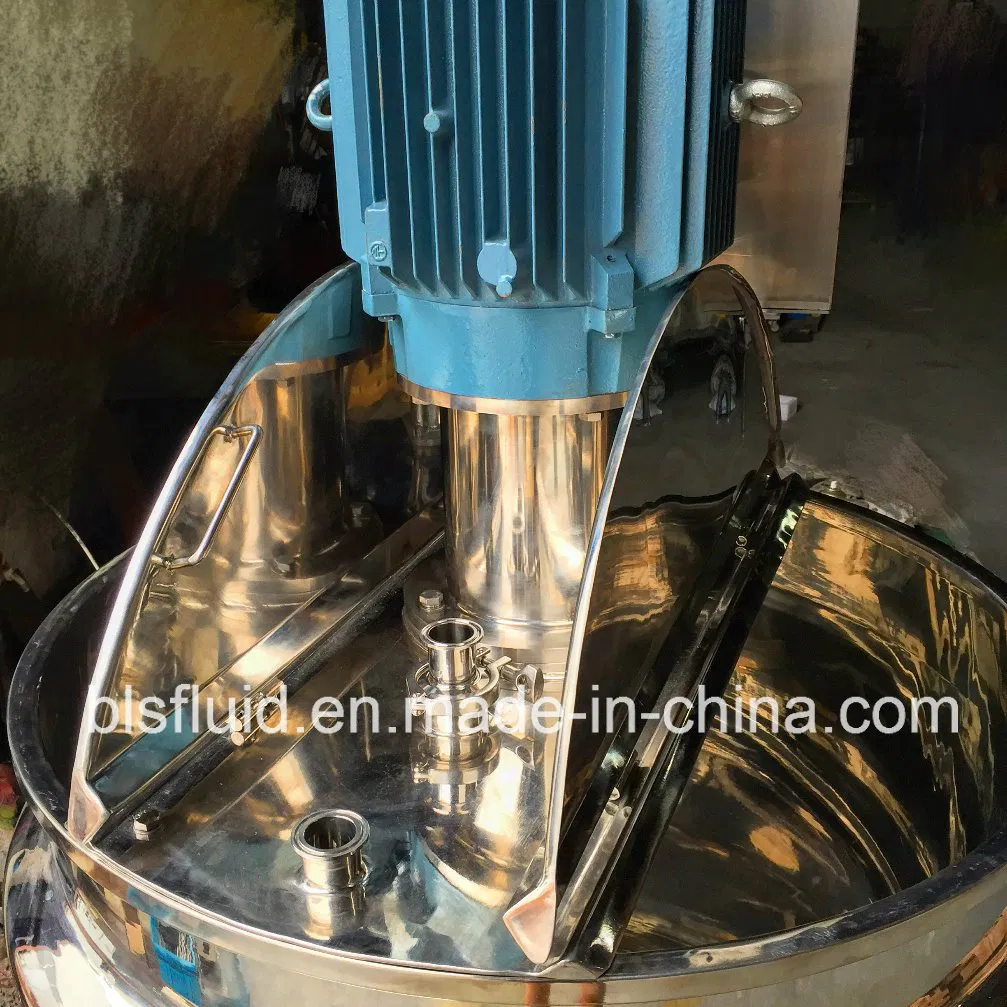

Stainless Steel Mixer Detail
Certification

Our Advantages & Production

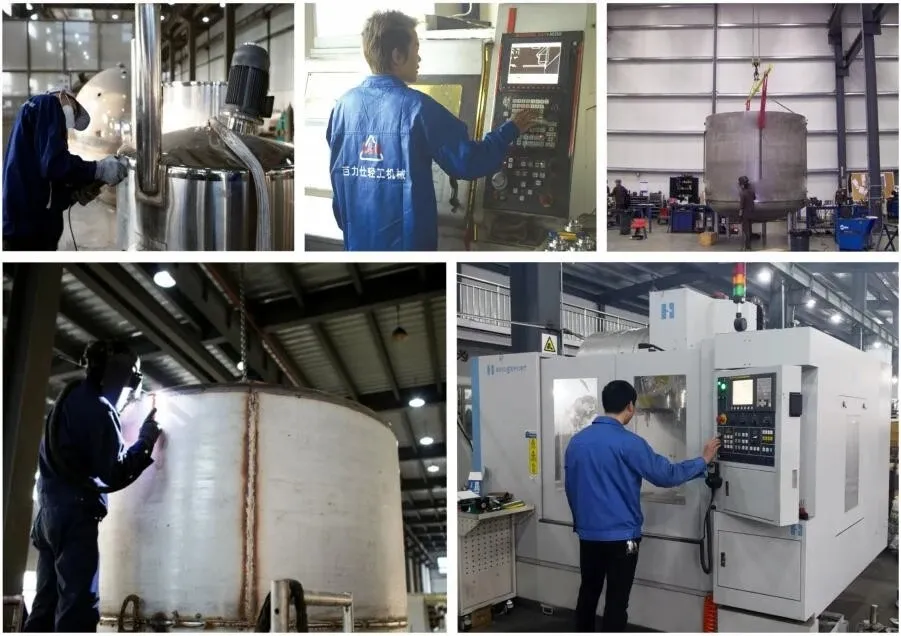

Advantage 1

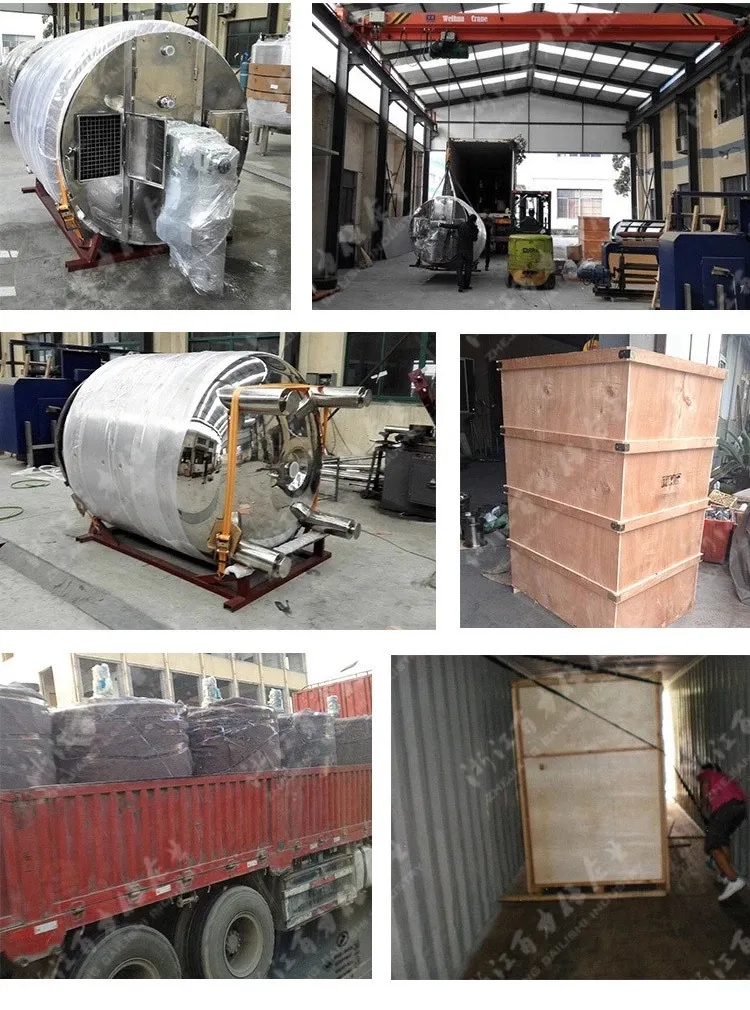

Advantage 2

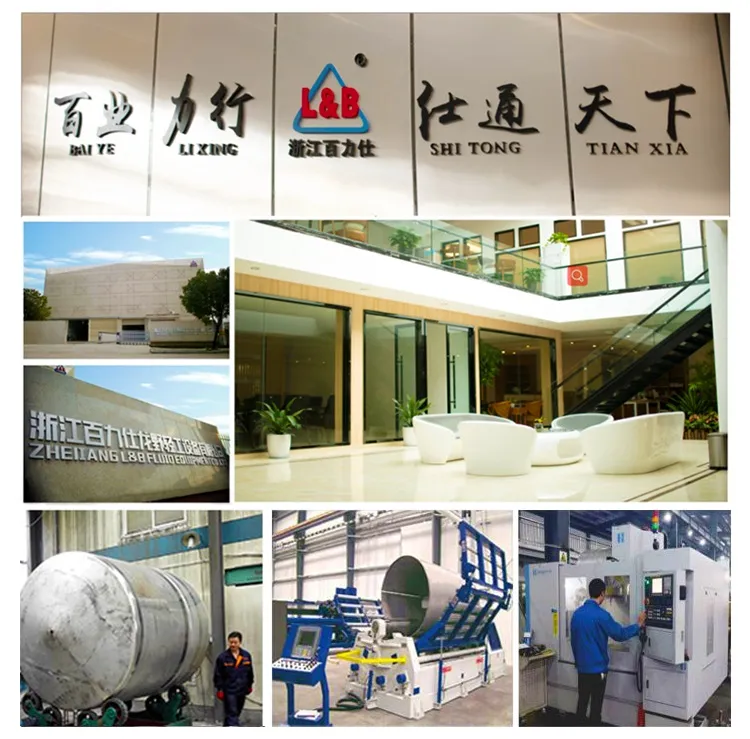

Production Facility

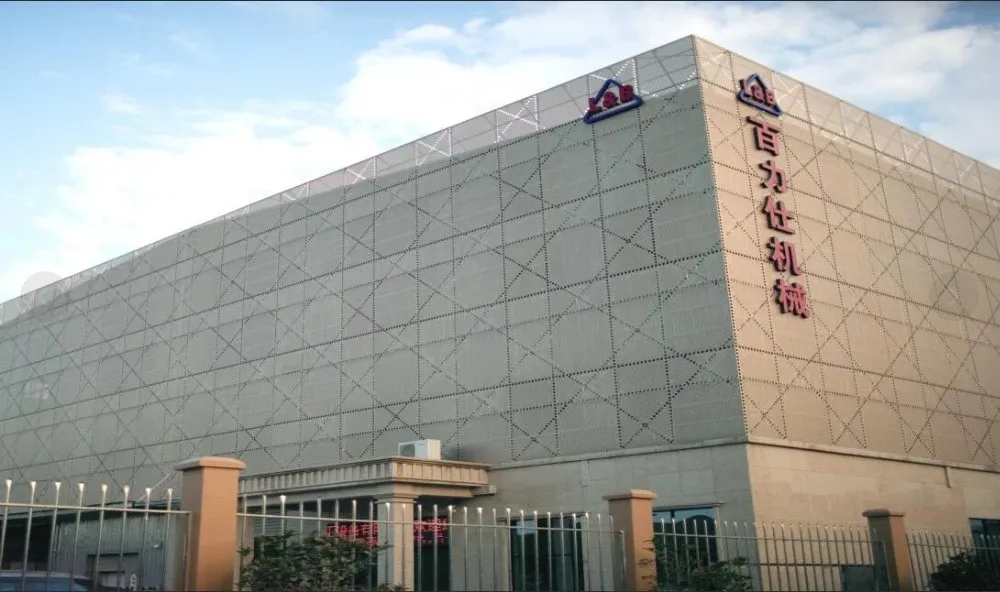

Workshop

Frequently Asked Questions

What materials are the mixing tanks made of?
Our tanks are constructed from high-quality sanitary stainless steel 304 or 316L, ensuring durability and hygiene for food and pharmaceutical applications.
What is the capacity range available?
We offer a wide range of capacities from 50 liters up to 20,000 liters to suit various production scales.
Can the tanks be heated?
Yes, our jacketed mixing tanks support both steam heating and electric heating methods depending on your facility's requirements.
What types of agitators can be installed?
We provide multiple agitator options including scraper, frame, paddle, and high-shear homogenizers to handle different liquid viscosities.
Is customization available for inlets and outlets?
Yes, the diameter and positioning of inlets and outlets can be fully customized according to your specific pipework and operational needs.
What is the warranty period?
All our stainless steel mixing tanks come with a standard 1-year warranty covering manufacturing defects.
