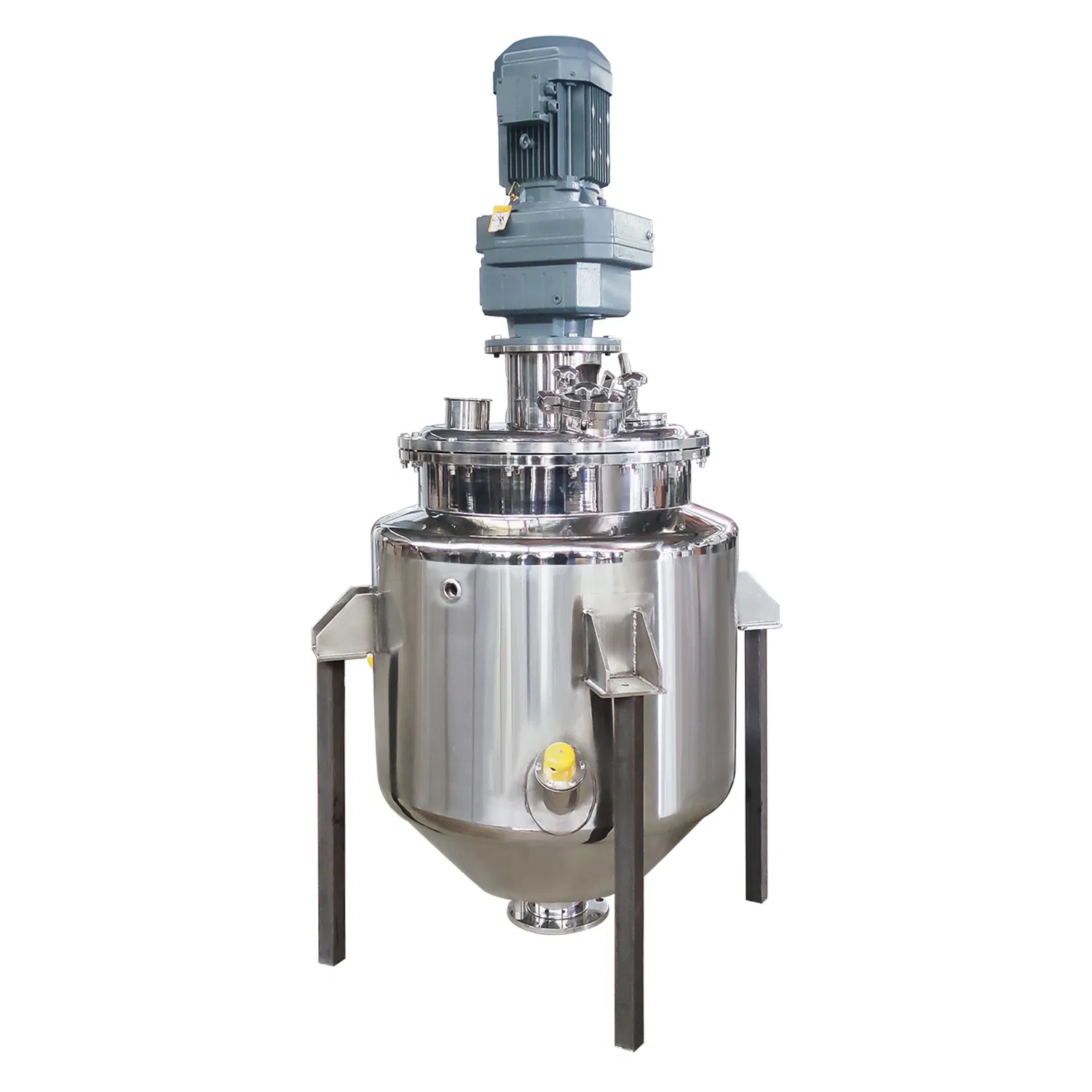

300L Stainless Steel Chemical Conical Mixing Tank for Asphalt

1 / 5

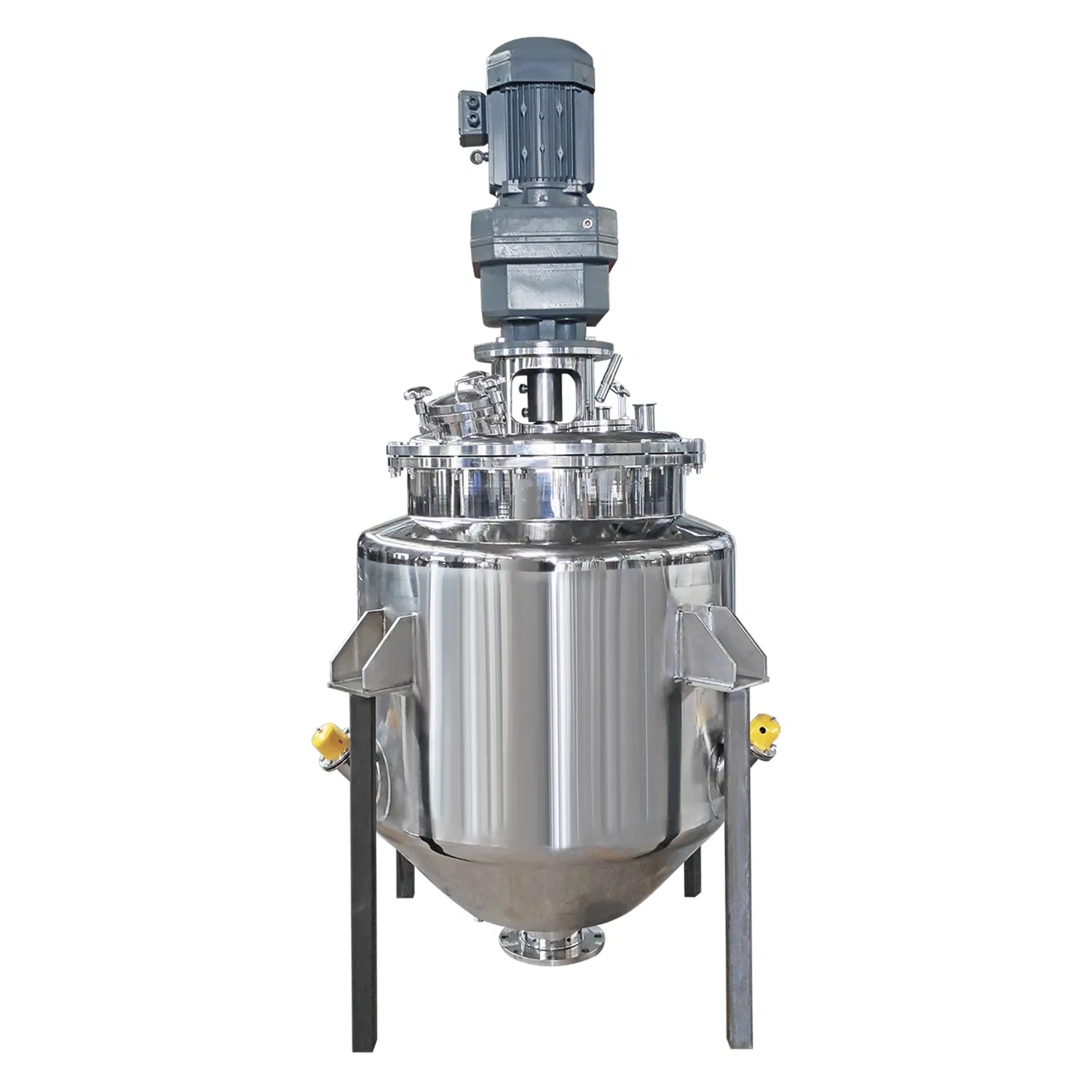

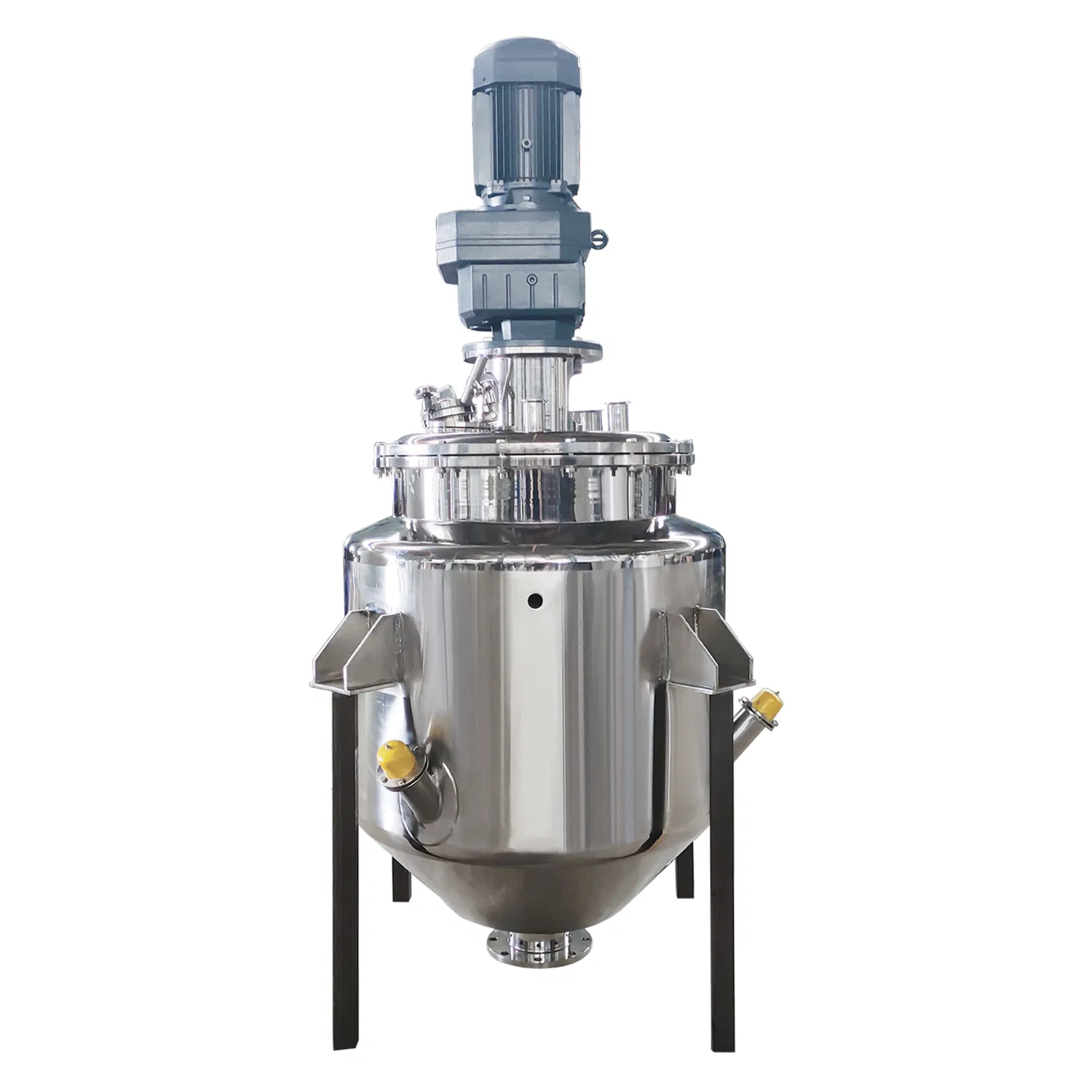

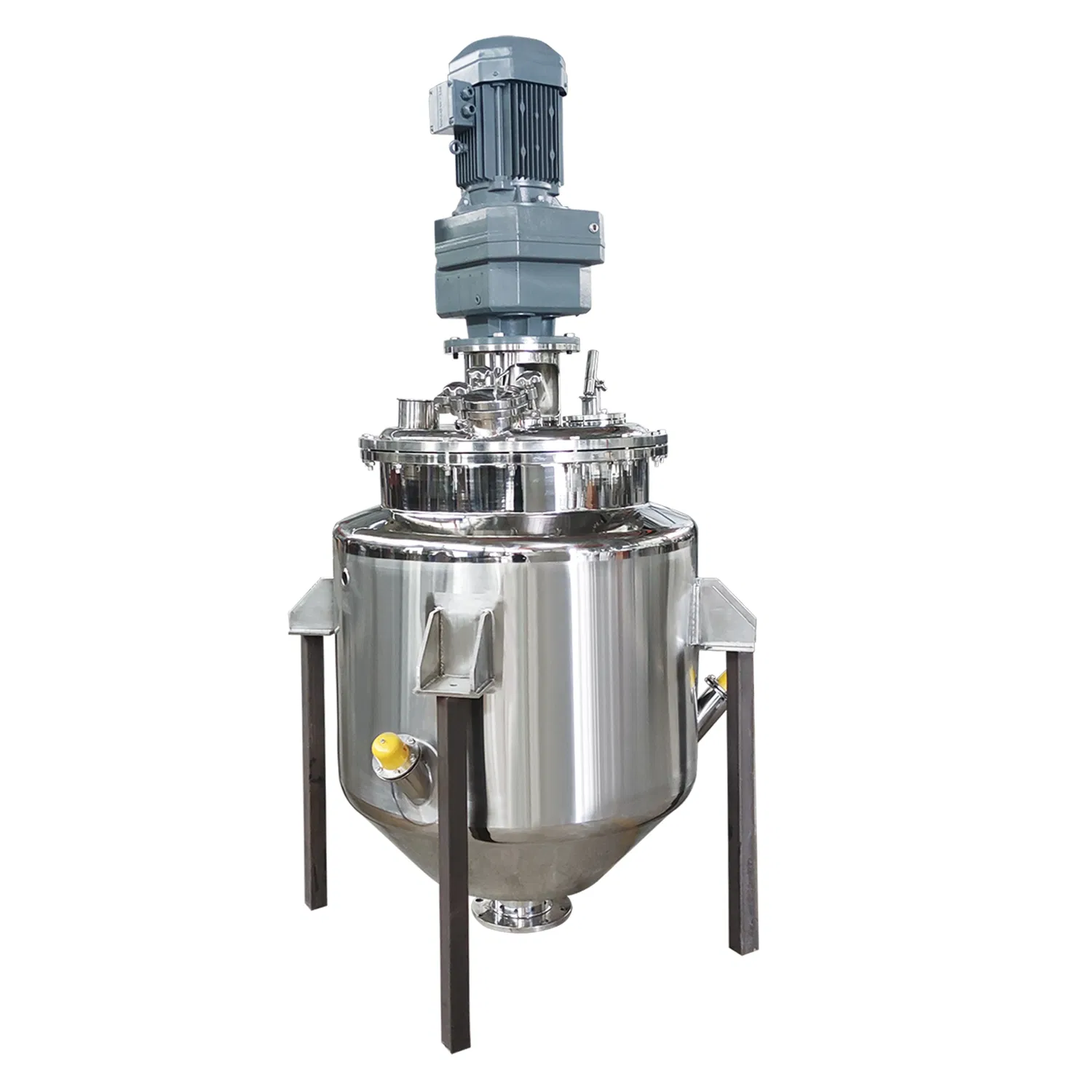

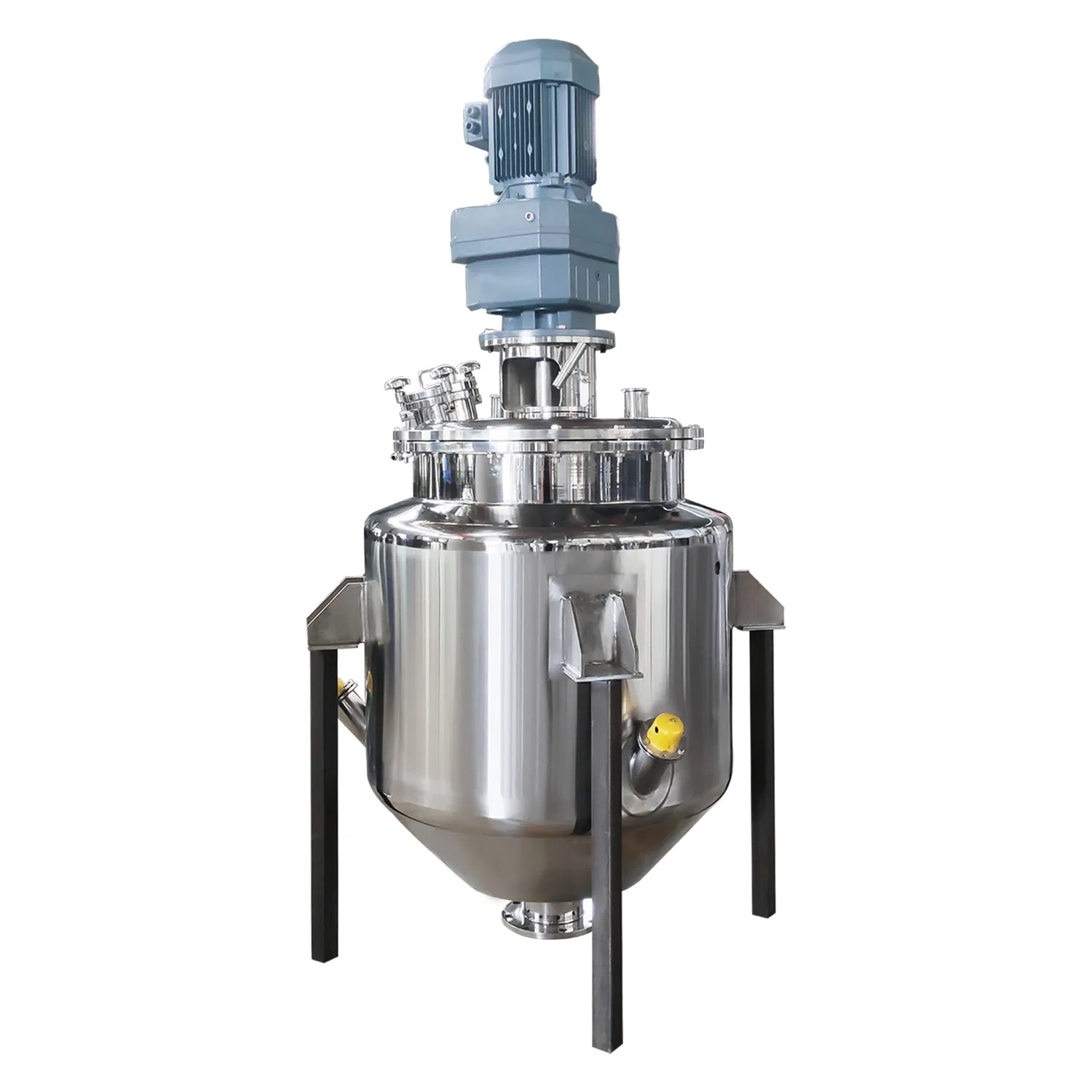

300L Stainless Steel Chemical Conical Mixing Tank for Asphalt

Customization:	Available
After-sales Service:	Online Support
Application:	Viscous Fluid, Liquid

Send Inquiry

Product Description

Basic Specifications

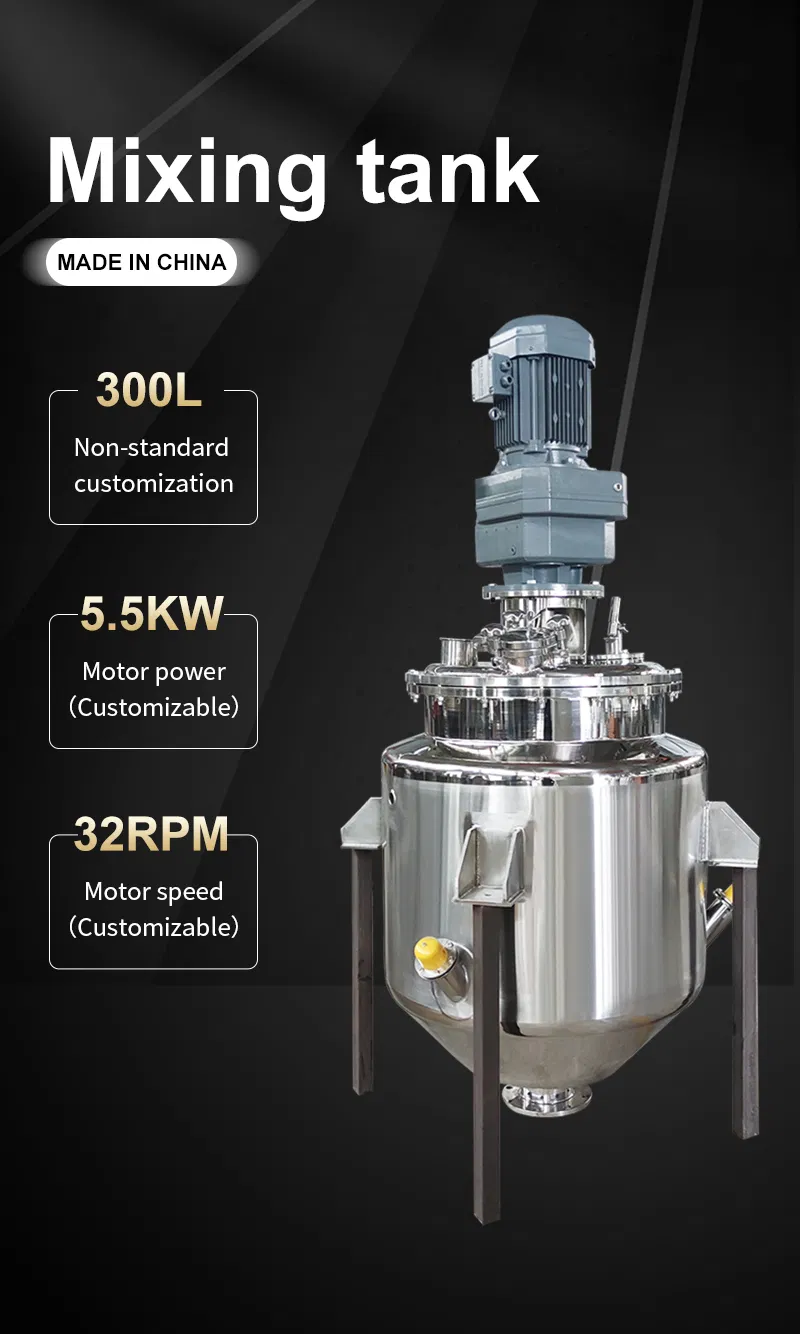

Model NO.:MK-JBG-3

Application Area:Chemical

Main Material:304/316 Stainless Steel

Mixing Drum Shape:Conical

Stirring Type:Revolve Agitator

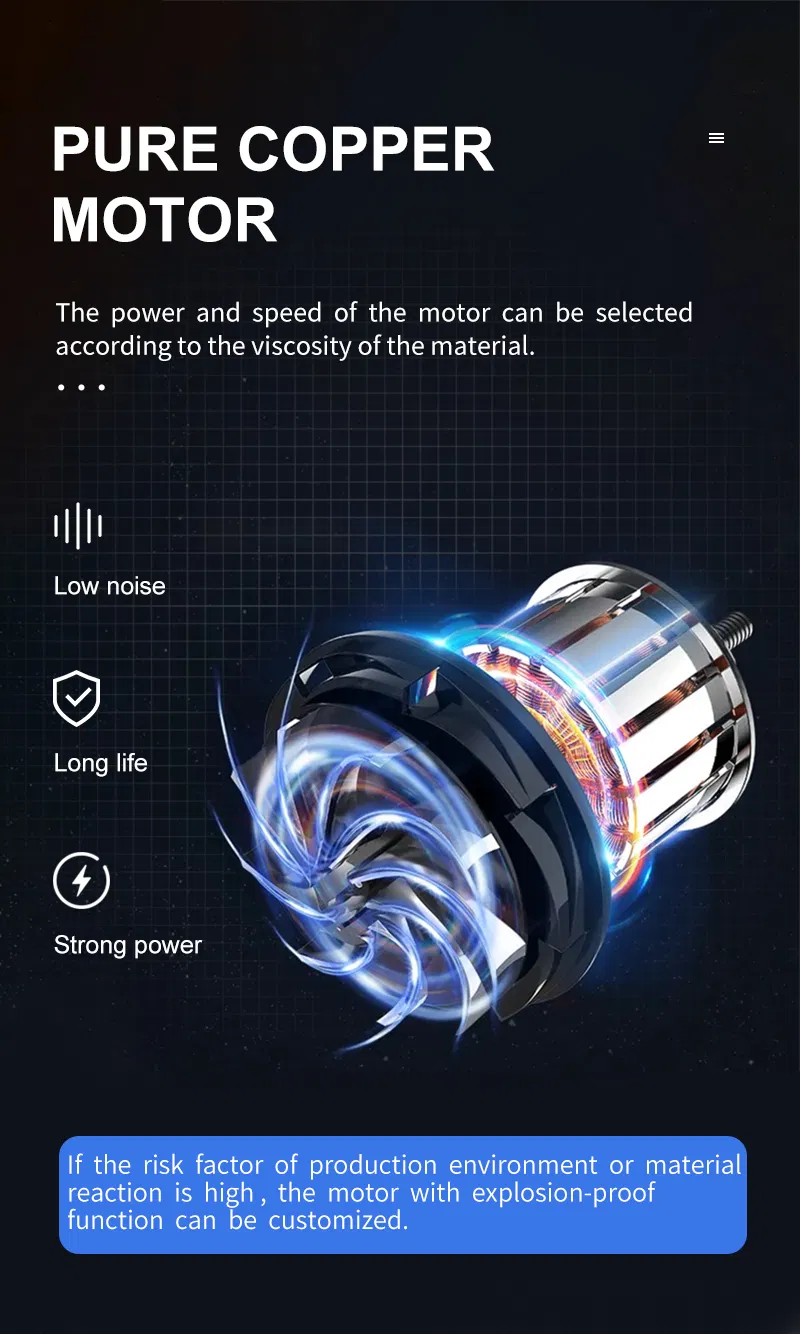

Motor Power:5.5kw

Heating Mode:Electric Heating (15kw)

Cylinder Diameter:700mm

Applicable Materials:Liquid Paste

Layout Type:Vertical

Package Size:200cm * 100cm * 120cm

Gross Weight:1000.00kg

Product Overview

Mixing tank is mainly used for mixing, blending, and homogenizing materials. The stainless steel mixing tank effectively shortens mixing time, saves labor, and speeds up production, making it essential equipment for modern industrial production.

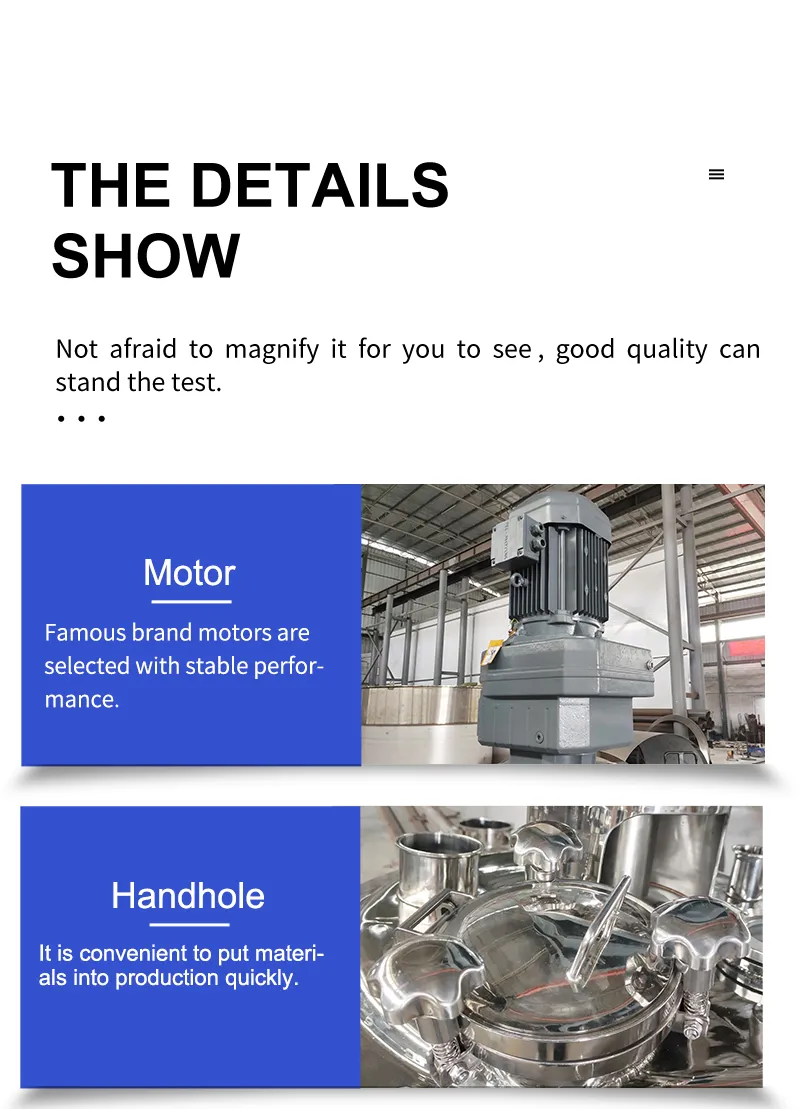

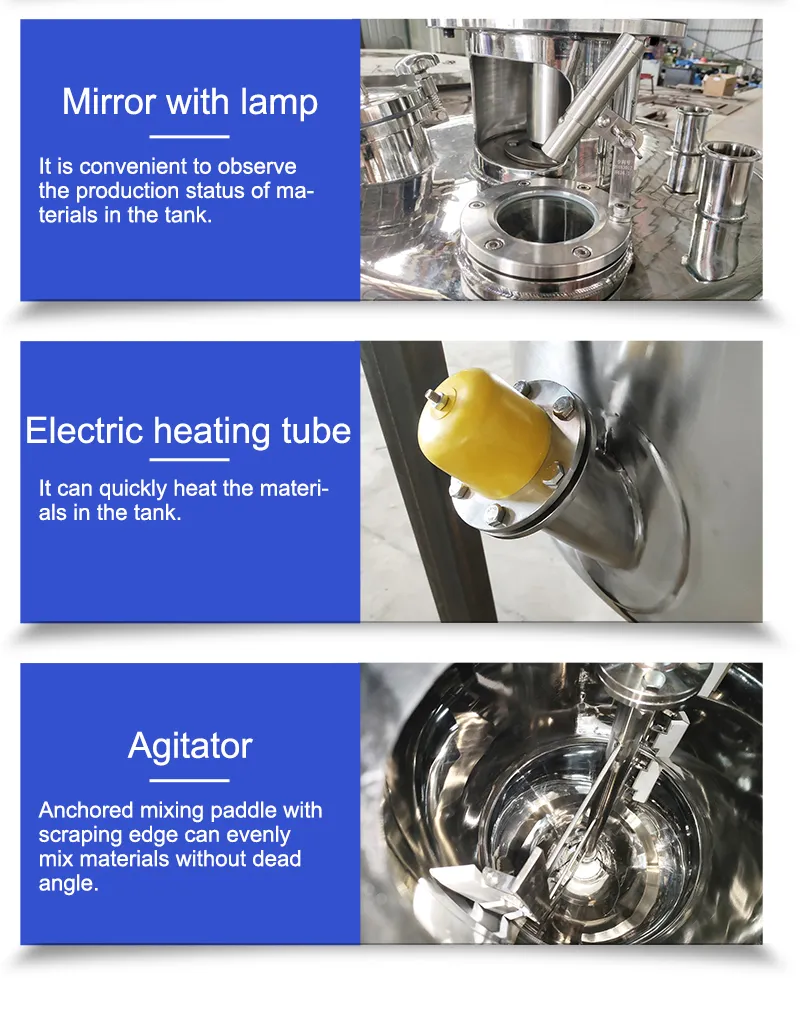

Product Structure: It is composed of a mixing tank body, cover, mixer, support, transmission device, and shaft seal device. It can be equipped with heating or cooling devices according to specific process requirements.

Technical Parameters

Type	Volume(L)	Cylinder Size(mm)	Motor Power(KW)	Speed(rpm)	Material
MK-JBG-0.5	50	300	0.75	30-180	SUS304 / SUS316L
MK-JBG-1	100	500	0.75	30-180	SUS304 / SUS316L
MK-JBG-2	200	600	1.1	30-180	SUS304 / SUS316L
MK-JBG-3	300	700	1.5	30-180	SUS304 / SUS316L
MK-JBG-5	500	900	2.2	30-180	SUS304 / SUS316L
MK-JBG-10	1000	1100	4	30-180	SUS304 / SUS316L
MK-JBG-20	2000	1300	5.5	30-180	SUS304 / SUS316L
MK-JBG-50	5000	1900	11	30-180	SUS304 / SUS316L
MK-JBG-100	10000	2000	15	30-180	SUS304 / SUS316L

Note: Technical parameters are for reference. Customized solutions are available based on specific needs.

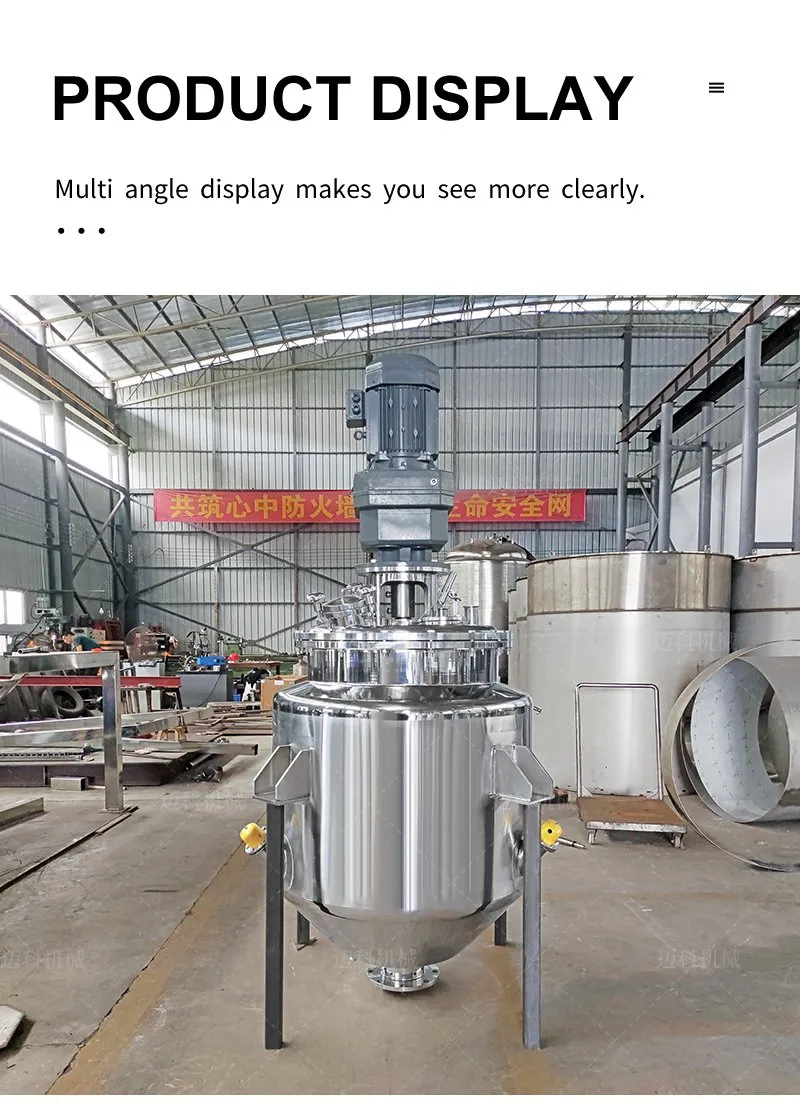

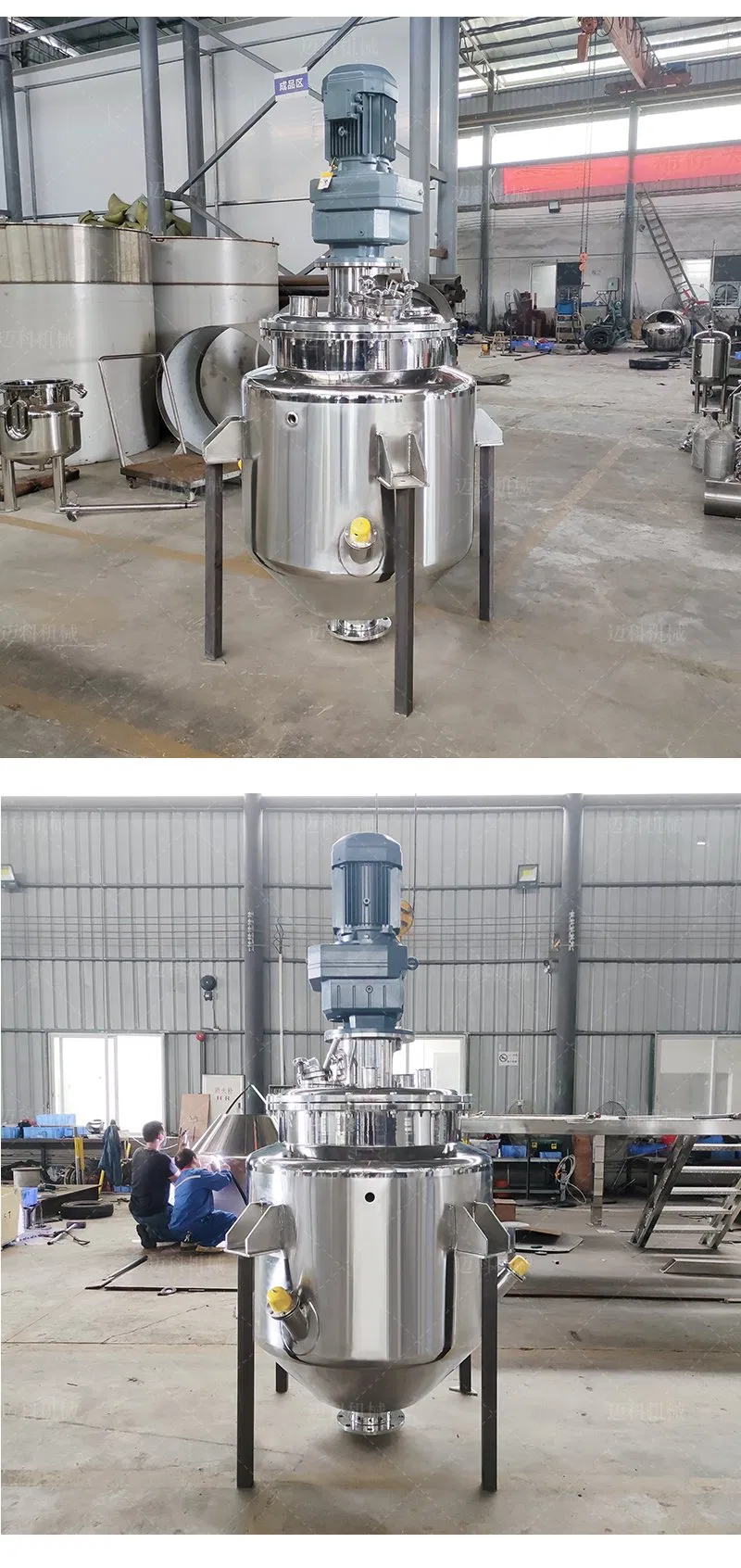

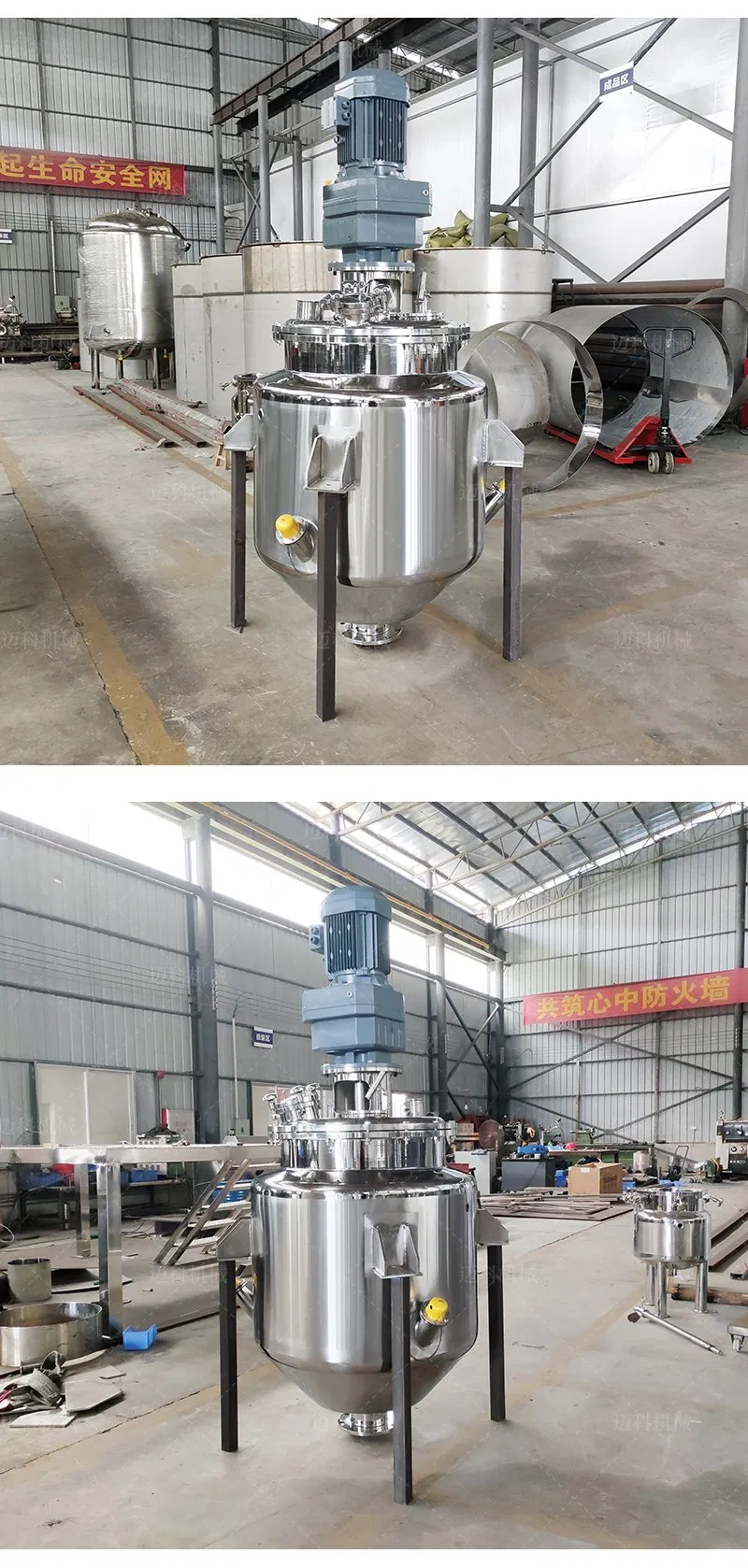

Product Display

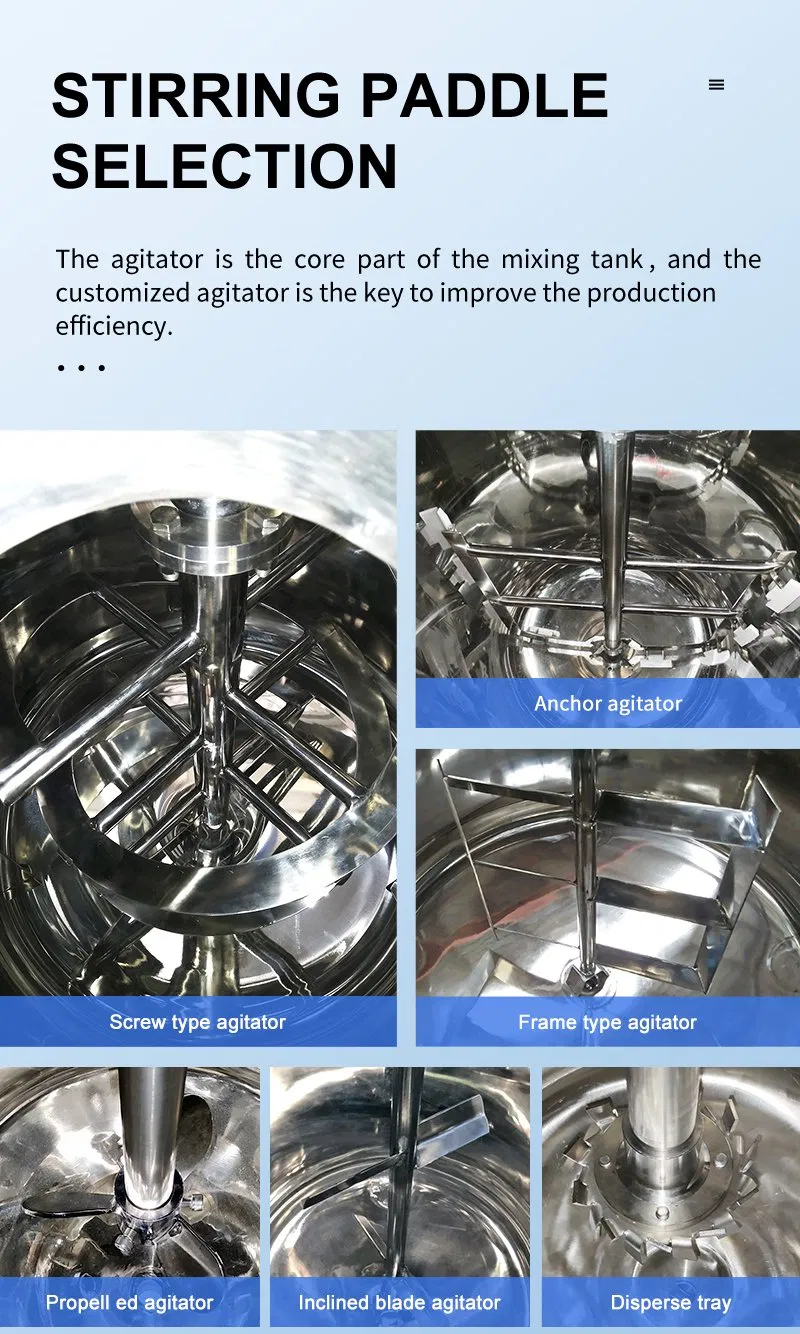

Agitator Selection

According to material characteristics and process requirements, we recommend the proper agitator type:

Low to Medium Viscosity: Propelling, turbine, inclined blade, Brumakin, plate and frame, or MIG agitators.
High to Ultra-High Viscosity: Anchor type, frame type, spiral belt, or screw type agitators.

Frequently Asked Questions

Q1: What materials are the mixing tanks made of? A1: Our mixing tanks are constructed from high-quality SUS304 or SUS316L stainless steel, ensuring durability and corrosion resistance.

Q2: What is the available capacity range for these tanks? A2: We offer a wide range of standard volumes from 50L up to 10,000L to suit various industrial production scales.

Q3: Does the equipment support heating or cooling? A3: Yes, tanks can be configured with electric heating (as seen in model MK-JBG-3 with 15kw power) or cooling systems based on your specific requirements.

Q4: Can the mixing speed and agitator type be customized? A4: Absolutely. We recommend agitators based on material viscosity (low to ultra-high) and provide customized solutions for mixing speeds.

Q5: What industries are these mixing tanks suitable for? A5: They are widely used in chemical, liquid paste blending, and other industrial applications requiring efficient homogenization.

Q6: What is the warranty period for this equipment? A6: All standard units come with a 1-year quality guarantee period and are shipped in secure wooden box packaging.
