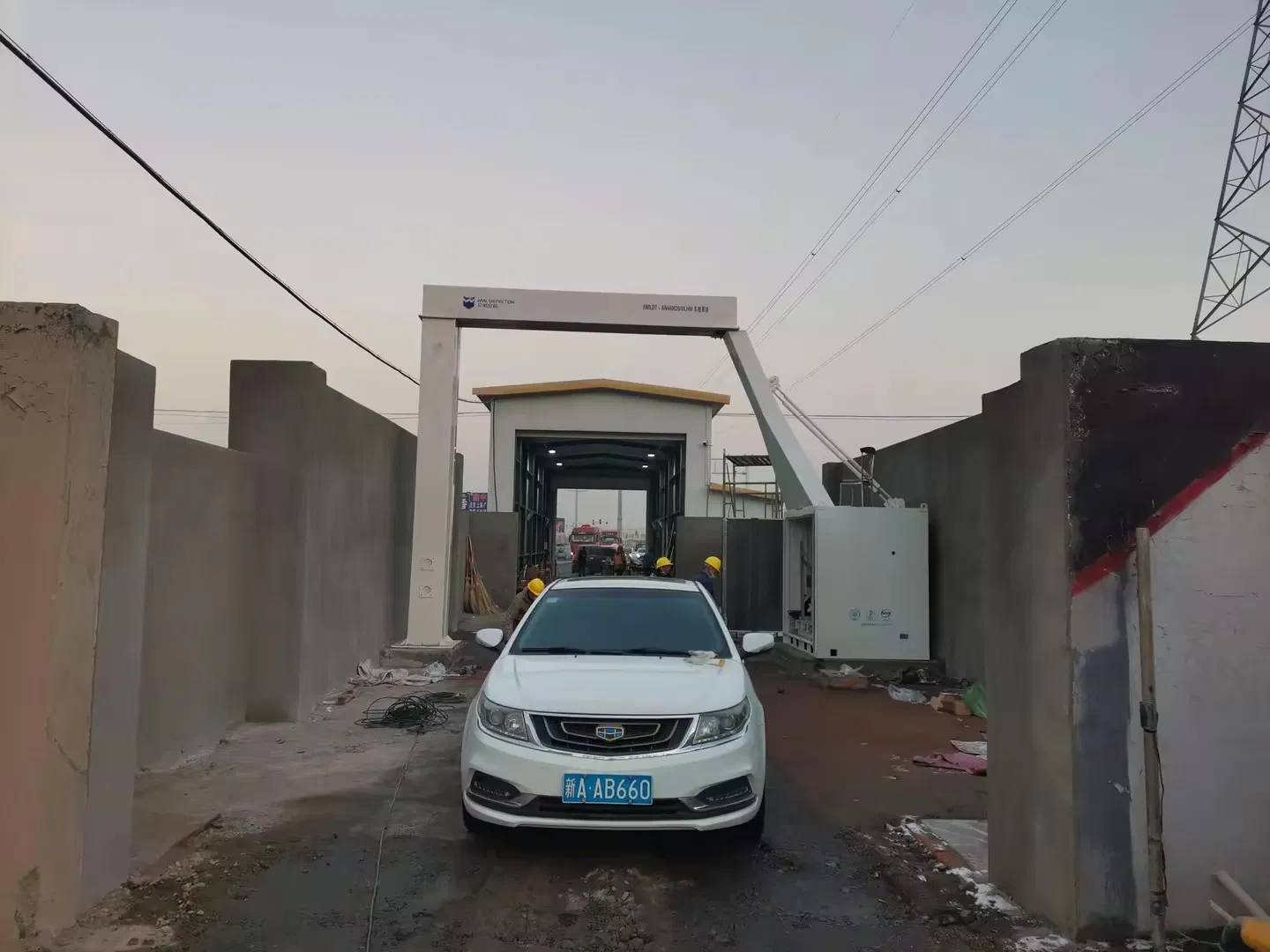

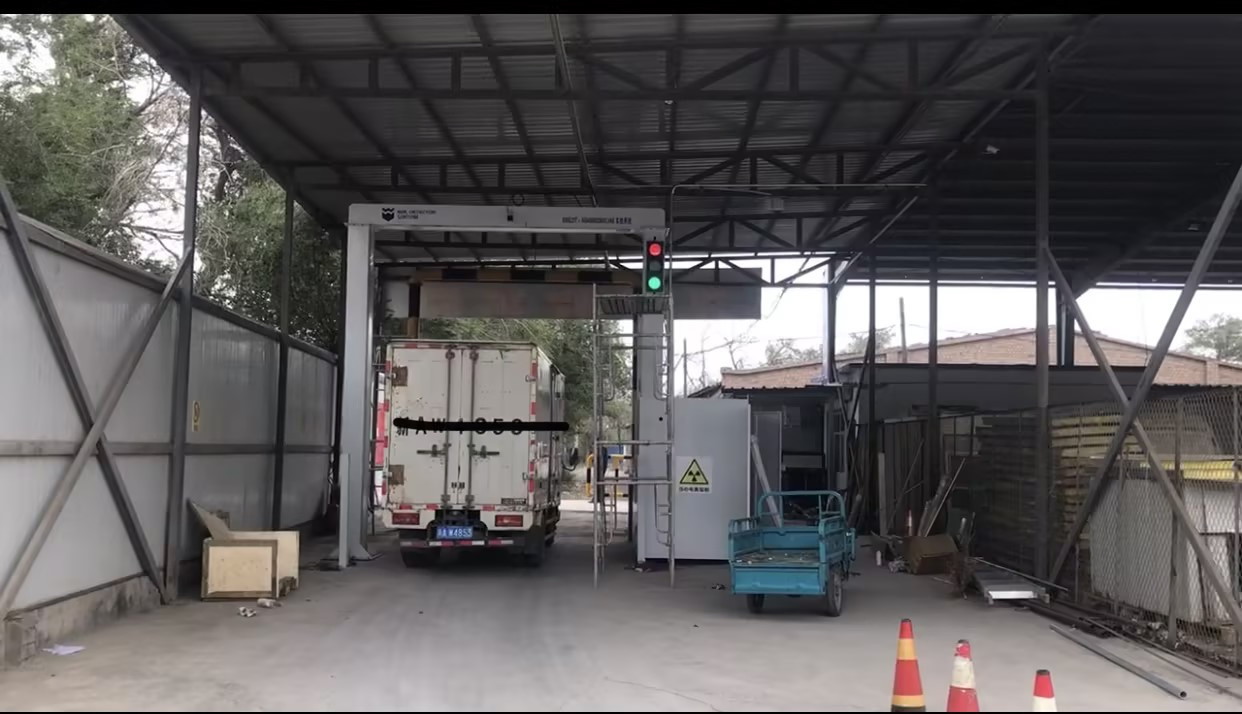

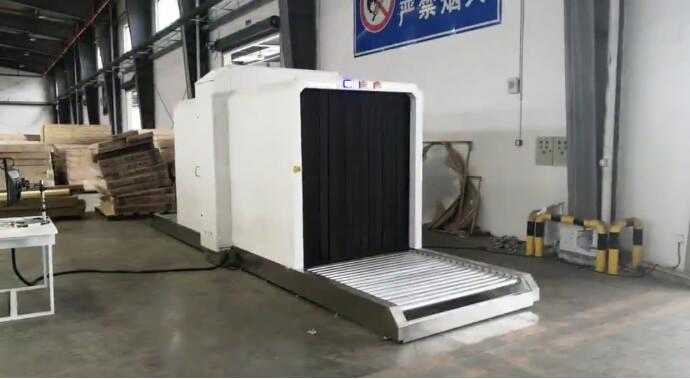

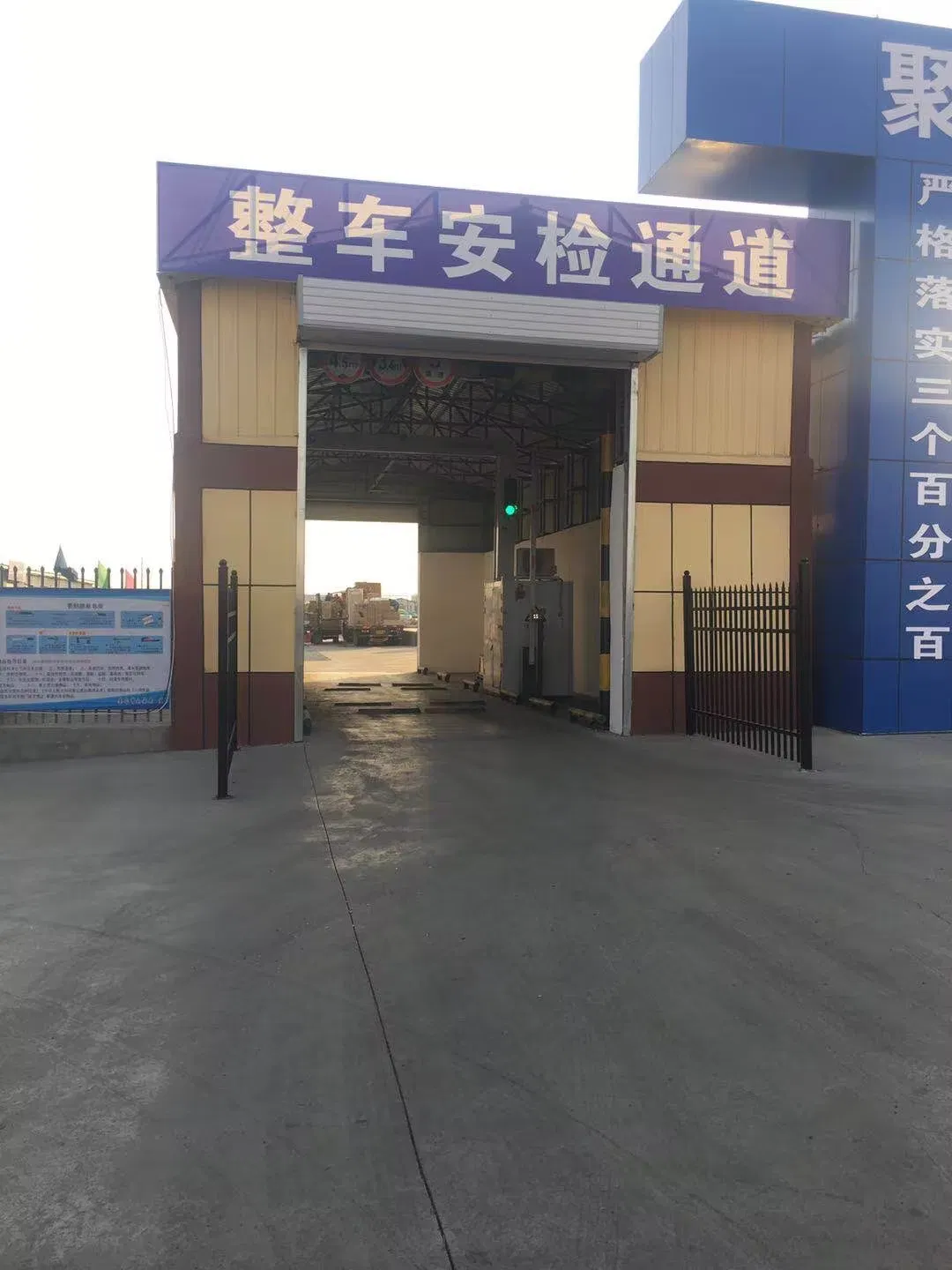

IWILDT™-AN 150180 X-ray security inspection system of roller conveyor is a line array X-ray low dose scanning safety inspection equipment with large channel size, high load, and strong X-ray penetration. It adopts international leading X-ray detector technology combined with intelligent computer control for high-level aviation and freight security applications.

Equipped with a 24-inch high-definition frameless wide screen display and a 360-degree multi-angle bracket, the system provides real-time, large-area X-ray images. This design significantly improves the efficiency of security operators by allowing for full-screen inspection and hidden menu toolbars.

• Spatial Resolution: Horizontal: 1.0 mm, Vertical: 1.0 mm
• Line Resolution: 0.0787mm copper wire
• Leakage Dose: < 0.09ugy/h
• Energy Saving: Intelligent detection; standby mode after 30 seconds of inactivity
• Structural Design: Modular functional components for flexible assembly
• Working Voltage: 220 VAC (± 10%) 50 ± 3 Hz
