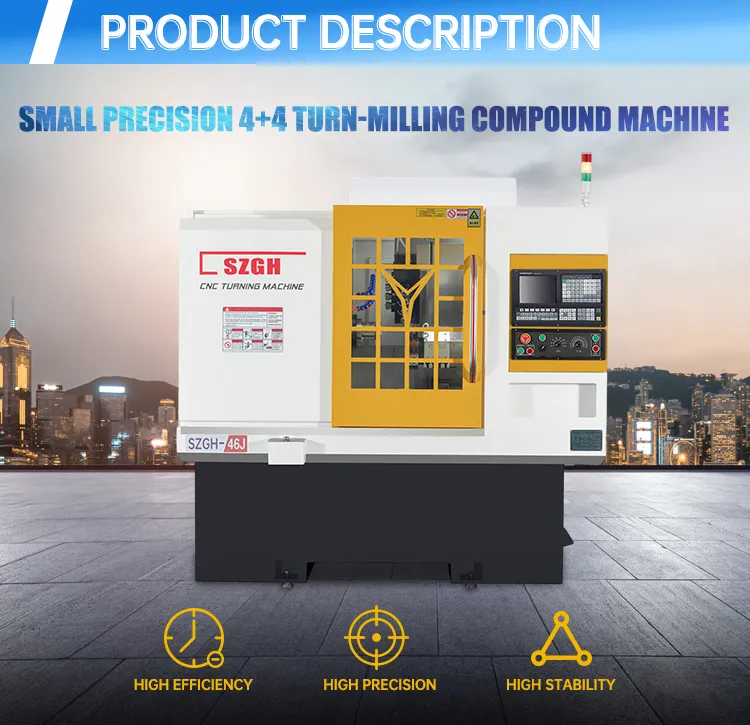

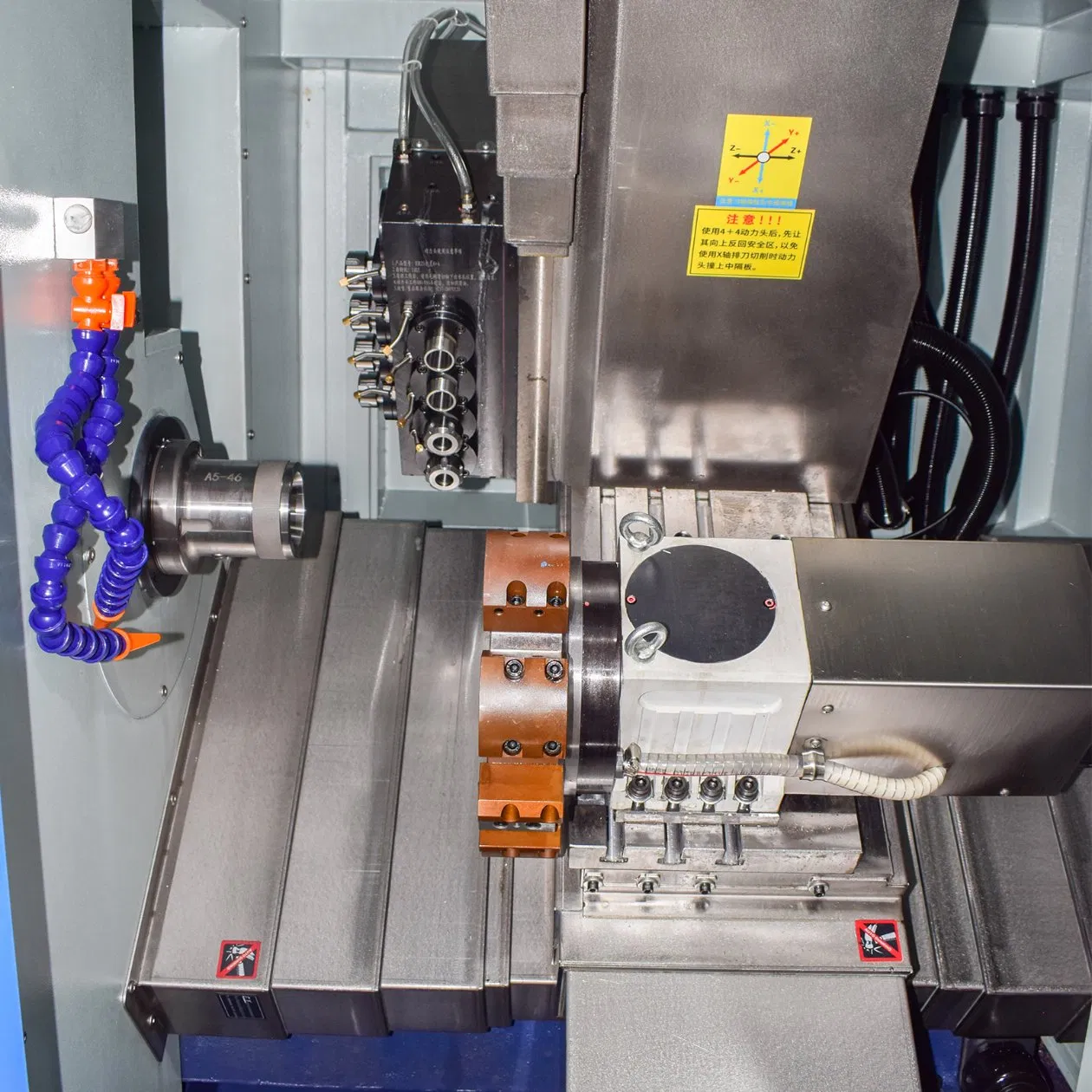

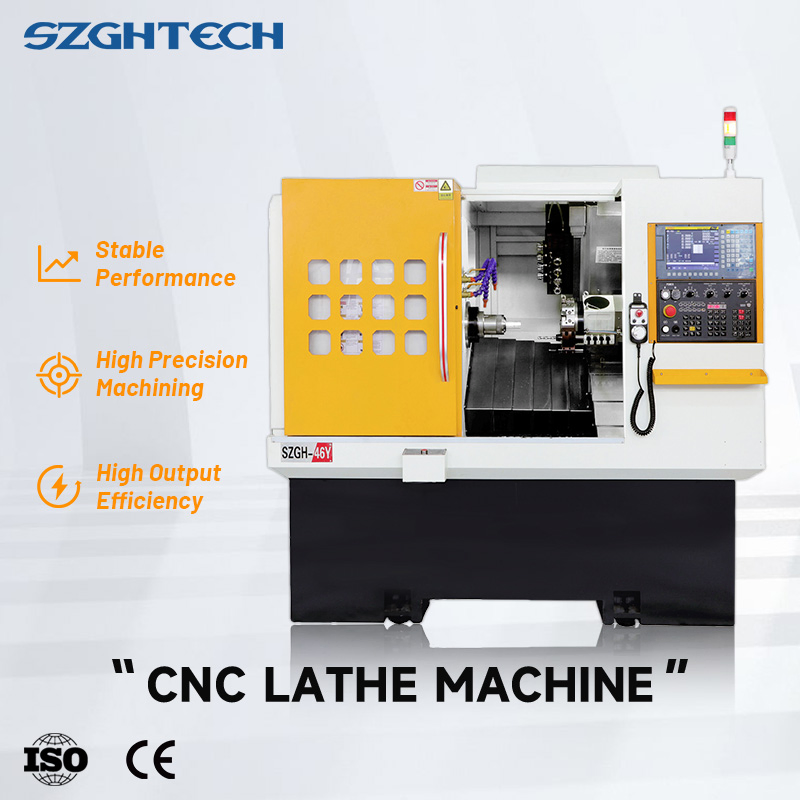

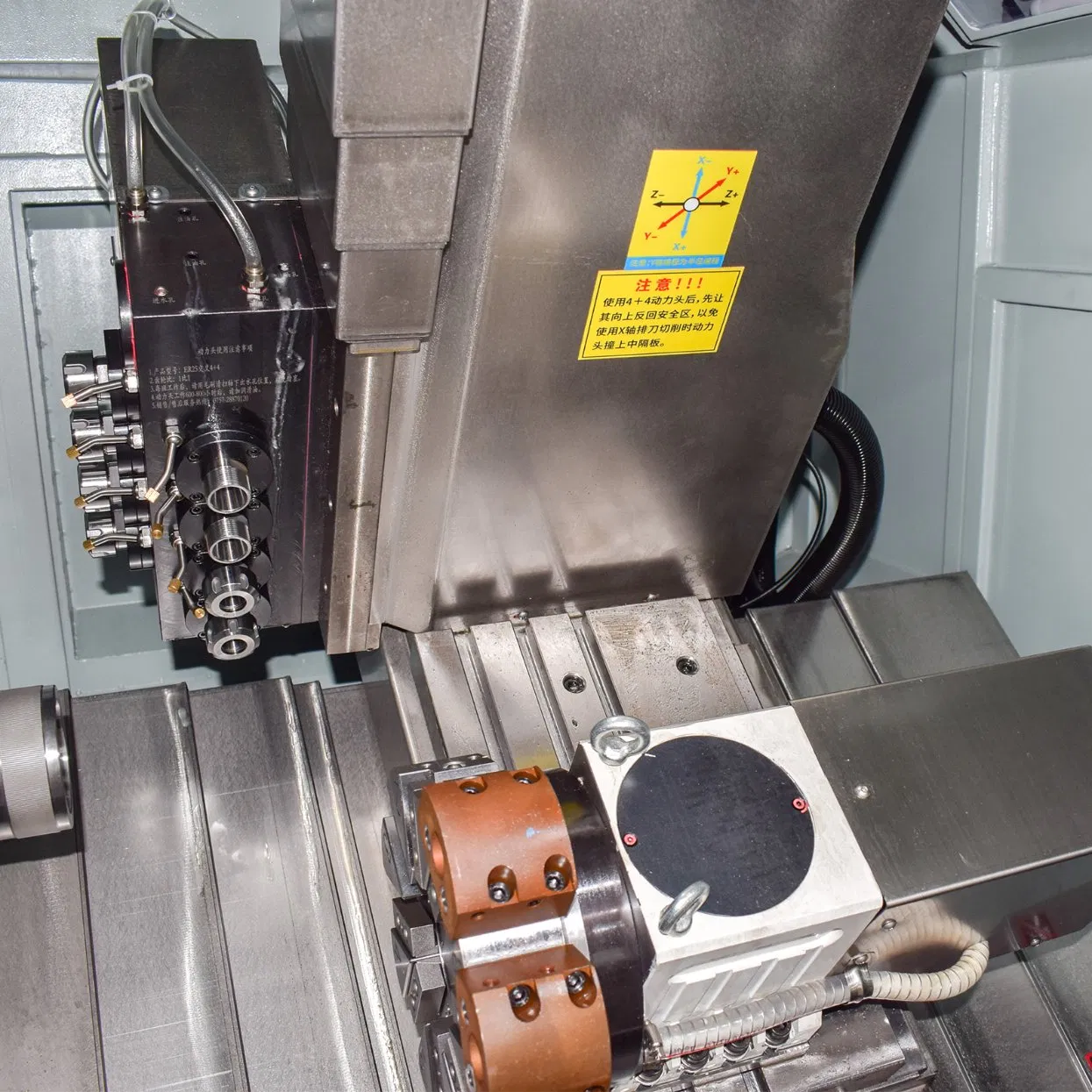

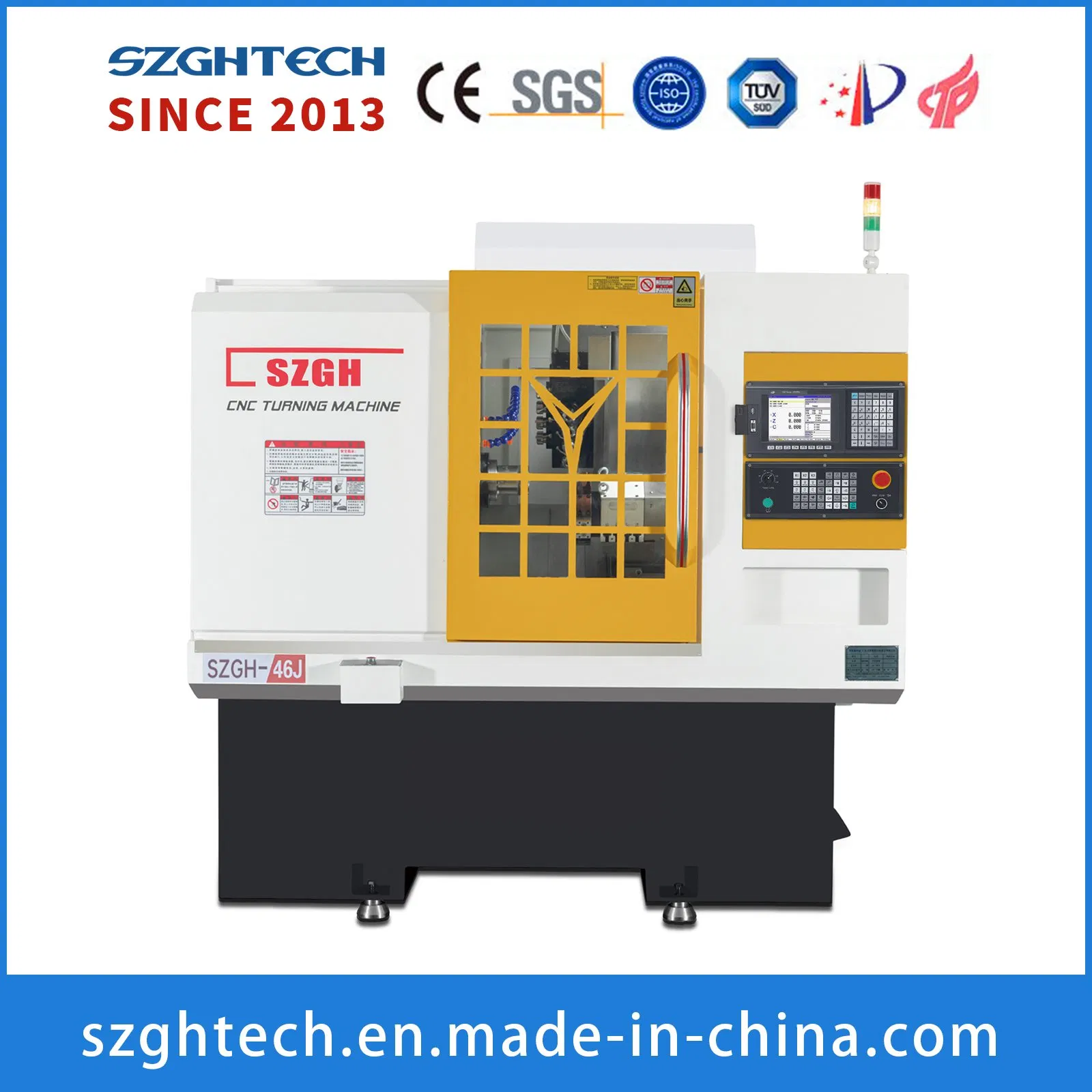

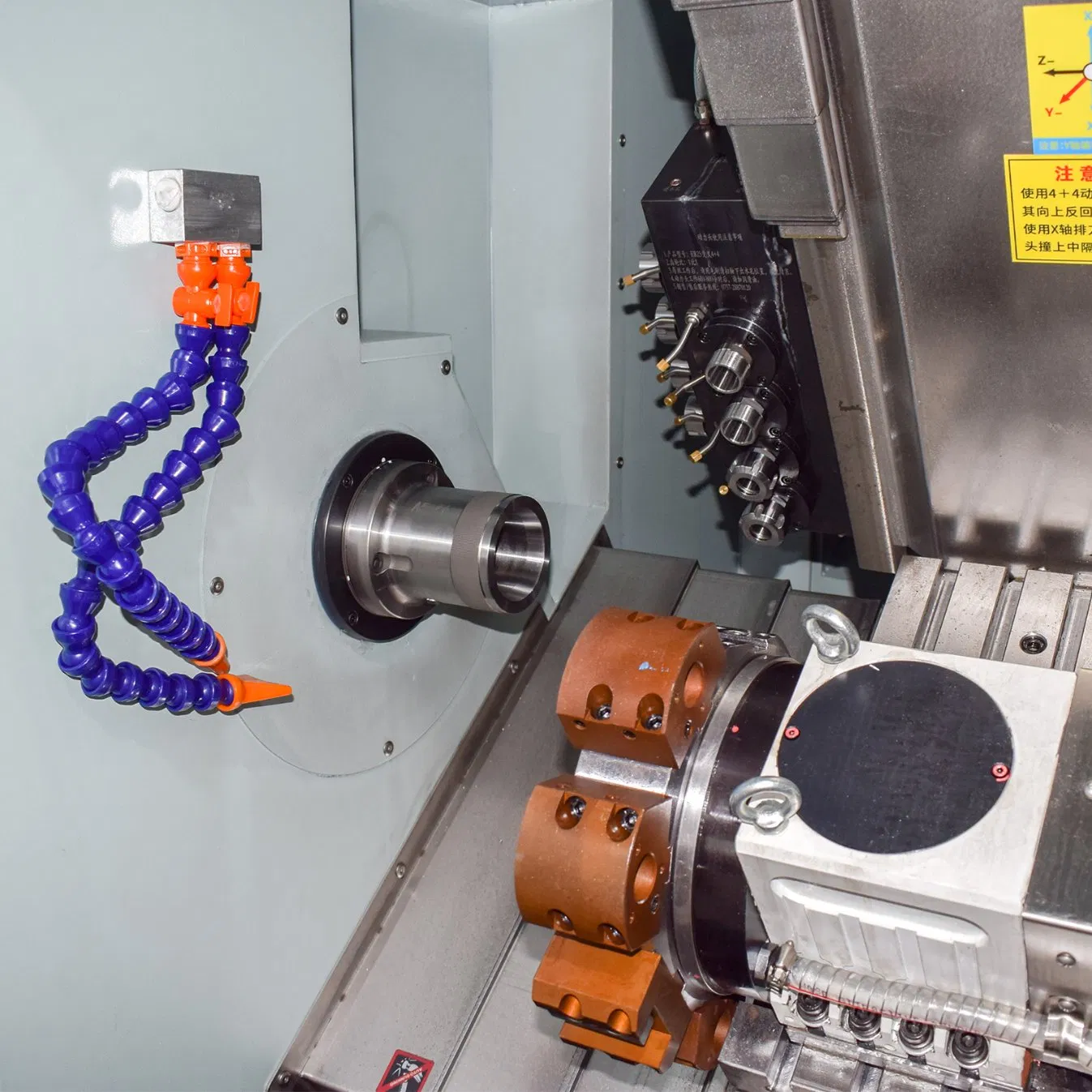

Precision Turn-Mill Machining System
The system is suitable for batch production of copper, iron, aluminum and stainless steel bars within 45mm, and batch production of open-type forged parts with automatic feeding of pellets within 60mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 350mm.
Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 4mm, precision tolerance within ±0.0075mm, and smoothness within 1.6. It is widely used in the processing of large parts with high precision and rigidity. Through careful design and matching, the performance of each accessory can be fully utilized to achieve the best cost-effective ratio.
| Item | Unit | Standard Value | Max Value |
|---|---|---|---|
| Max. diameter of bar bore | mm | 45 | - |
| Max. particle diameter (disk type) | mm | 400 | 420 |
| Max. length of workpiece | mm | 380 | 400 |
| Machining accuracy | mm | ±0.0075 | - |
| Surface roughness | Ra | 1.6 | 1.6 |
| X-axis effective travel | mm | 1000 | - |
| Z-axis effective travel | mm | 400 | - |
| Y-axis maximum speed | rpm | 2500 | 4000 |
| Spindle Motor Power | kW | 5.5kw servo | 7.5kw servo |
| Total Weight | kg | 2800 | - |
1. We specialize in the manufacture of CNC systems, turning and milling machines, and industrial robots. With over 10 years of experience, we have successfully exported our products globally, providing high-quality, high-performance machinery to meet diverse customer needs.
2. Our team consists of experienced engineers and experts utilizing state-of-the-art technology and innovative design concepts to push the industry forward in mechanical engineering and automation.
