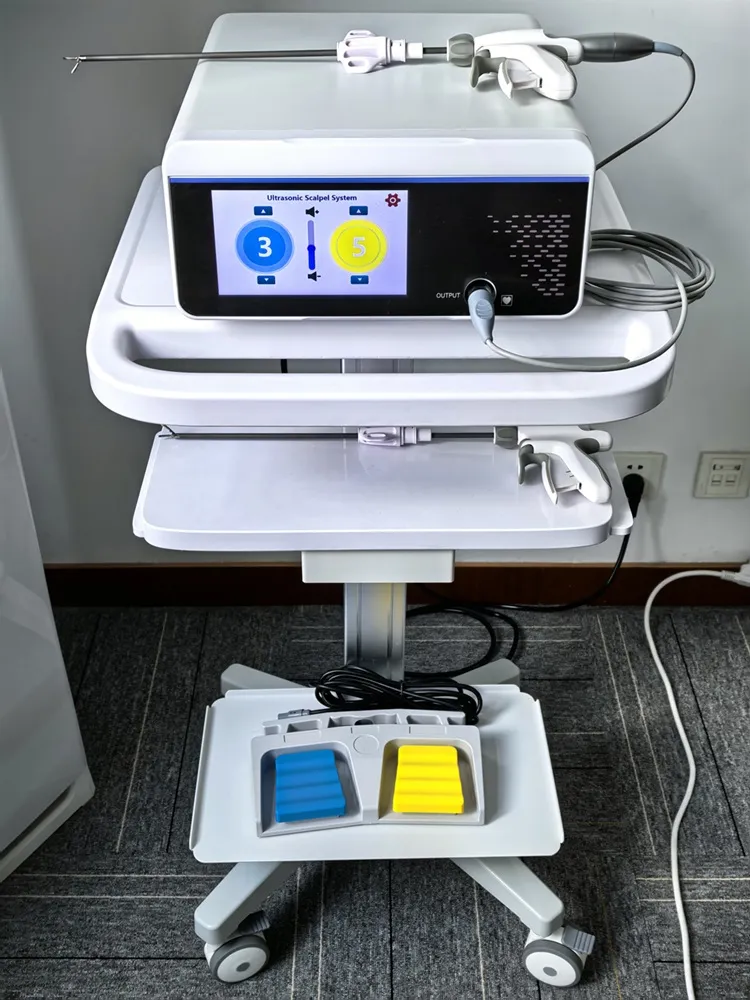

The host generator is a precision device used to generate electrical energy and output control to the ultrasonic driver handle. Power output is activated via foot switch or manual switch adapter. The signals are transmitted to the drive handle, which converts electrical signals into ultrasonic mechanical motion.
| Parameter | Specifications |
|---|---|
| Input Voltage | AC 90V to 240V, 50/60Hz |
| Working Current | 3A |
| Driving Frequency | 55.5KHz |
| Power Consumption | Max 300VA |
| Handpiece Compatibility | HPT55.5, HP054HPBLUE |
| Disinfection | Supports 134°C high temperature |
Surgical Approach: Suitable for laparoscopic, open, and superficial surgeries depending on shaft length (14mm to 45mm). Vessel indication covers vessels ≤7mm and lymphatics.
| Name | Product Code | Description |
|---|---|---|

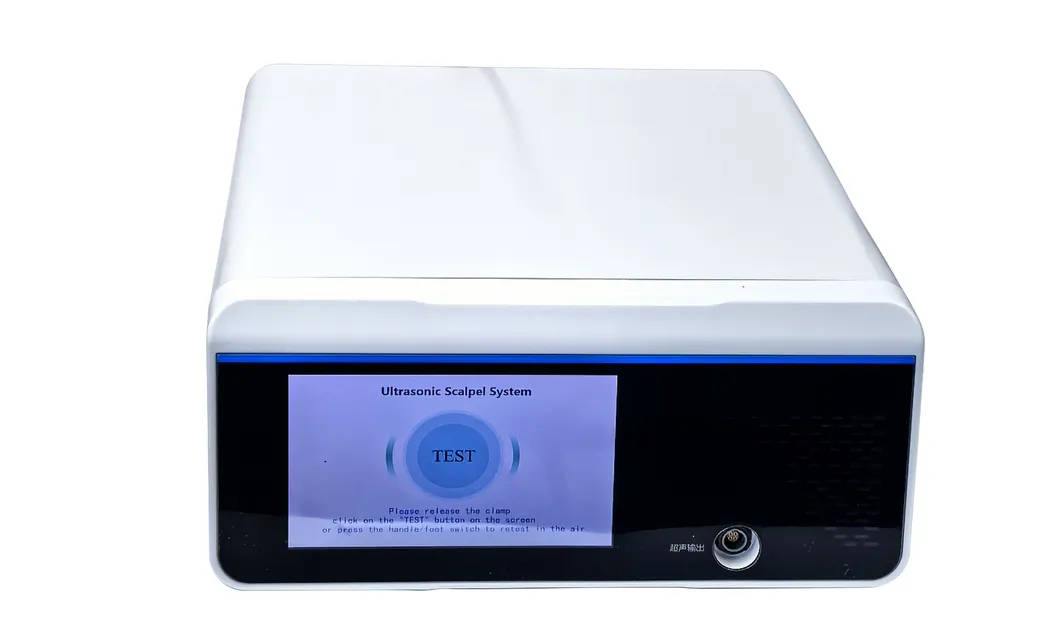

| Generator Host | W500 | 55.5KHz, 300VA Max |
| 14cm Shears | WYHS14S | Gun design, Diameter 5mm, Shaft 140mm |
| 23cm Shears | WYHS23S | Gun design, Diameter 5mm, Shaft 230mm |
| 36cm Shears | WYHS36S | Gun design, Diameter 5mm, Shaft 360mm |

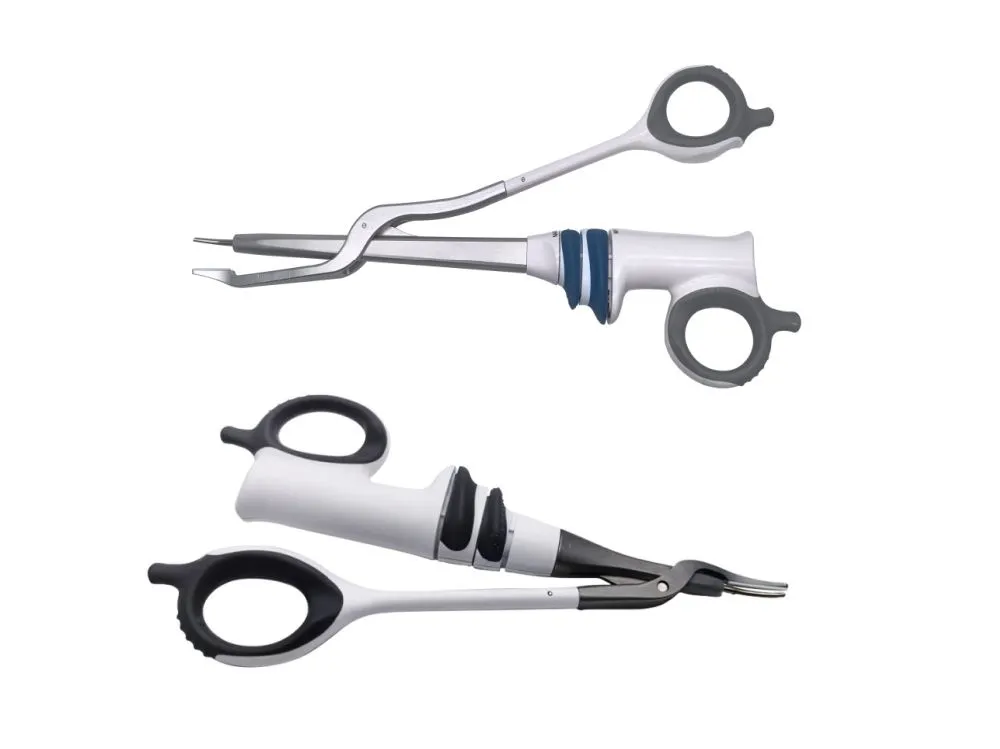

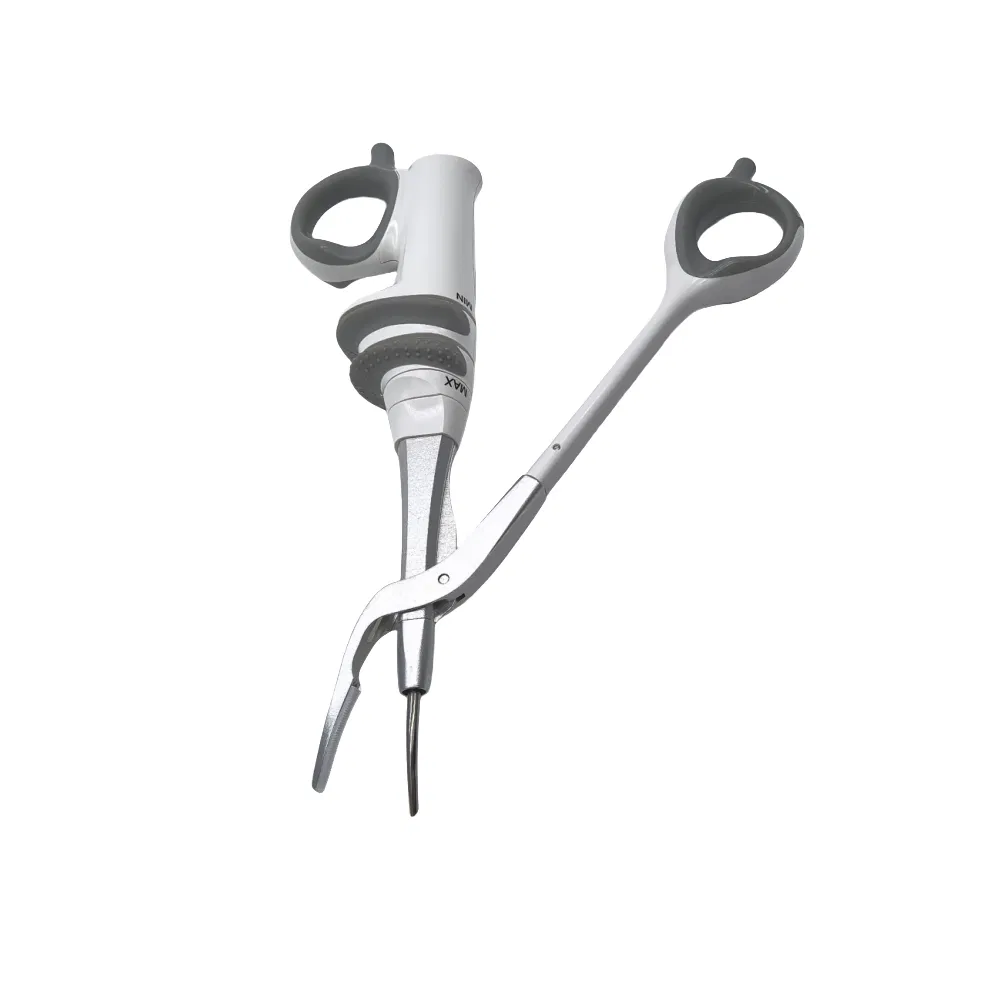

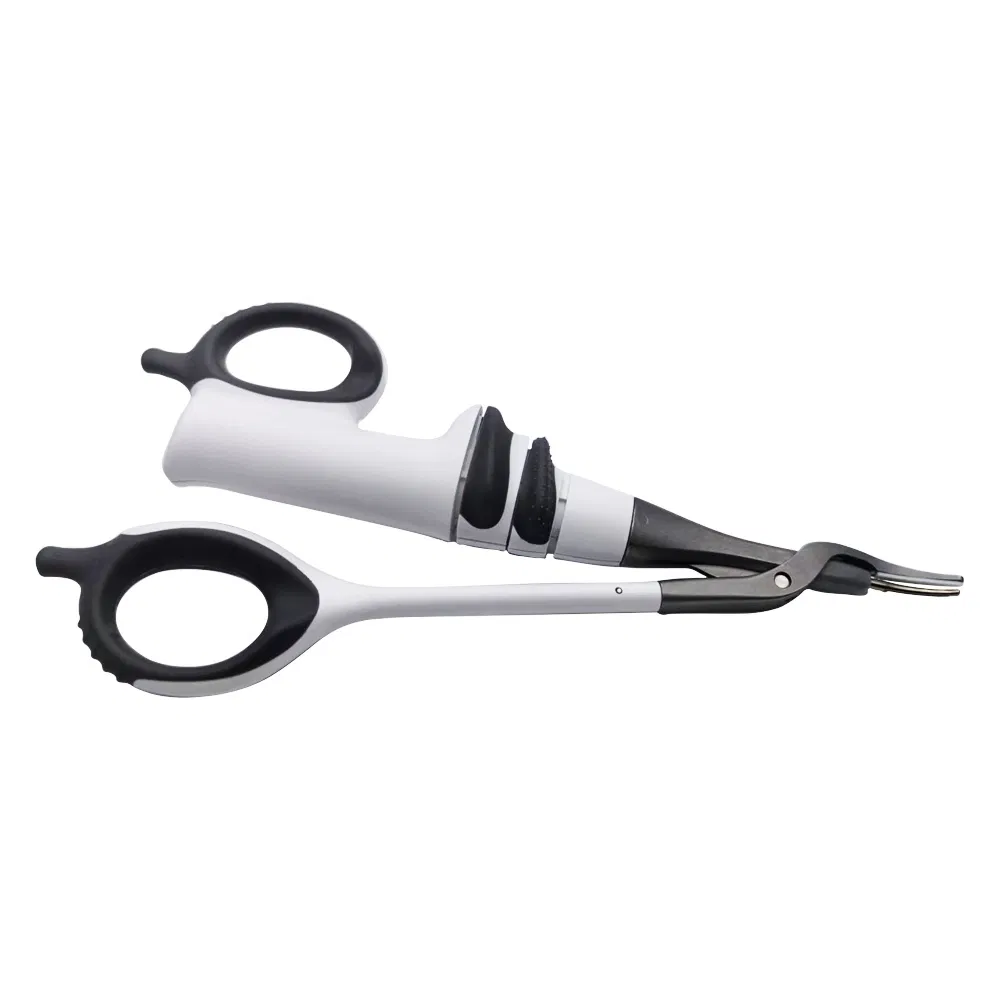

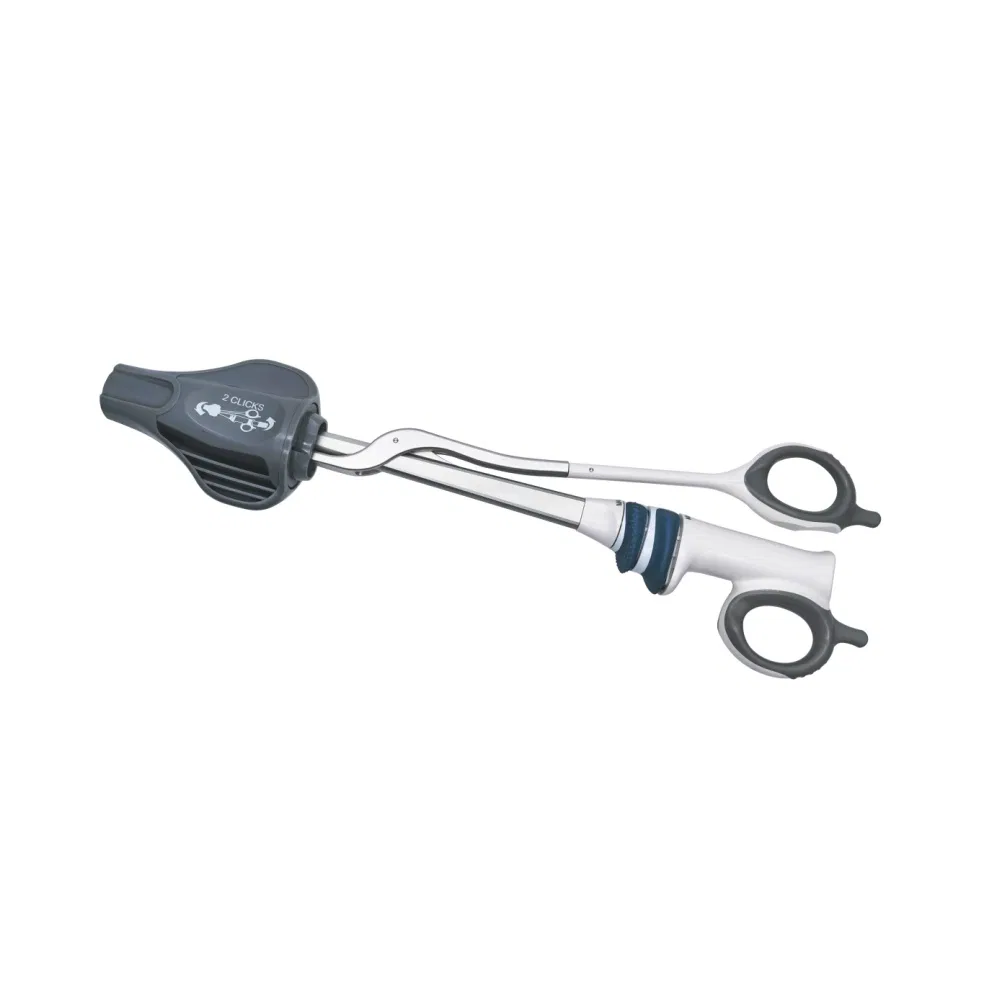

| 9cm Shears | WYSS09G | Scissor design, Length 9cm |
| 17cm Shears | WYSS17G | Scissor design, Length 17cm |

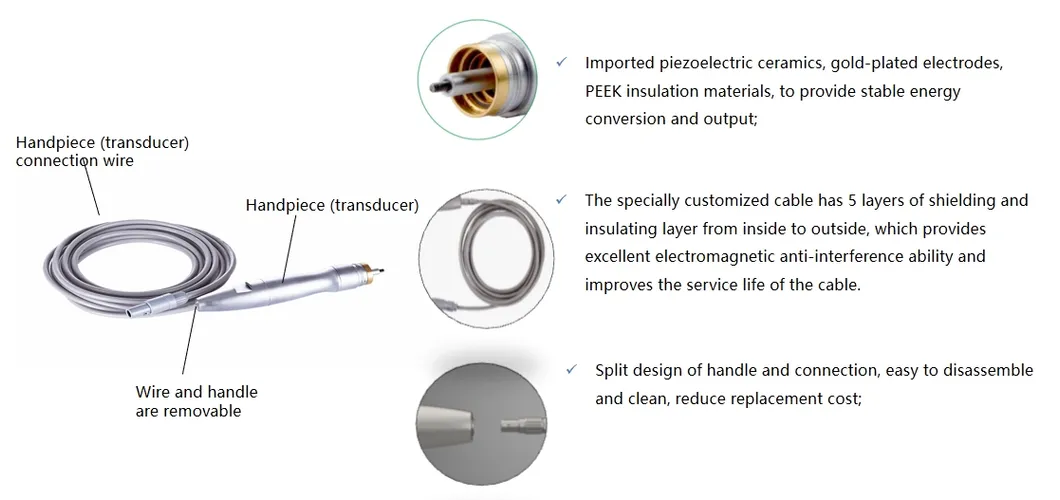

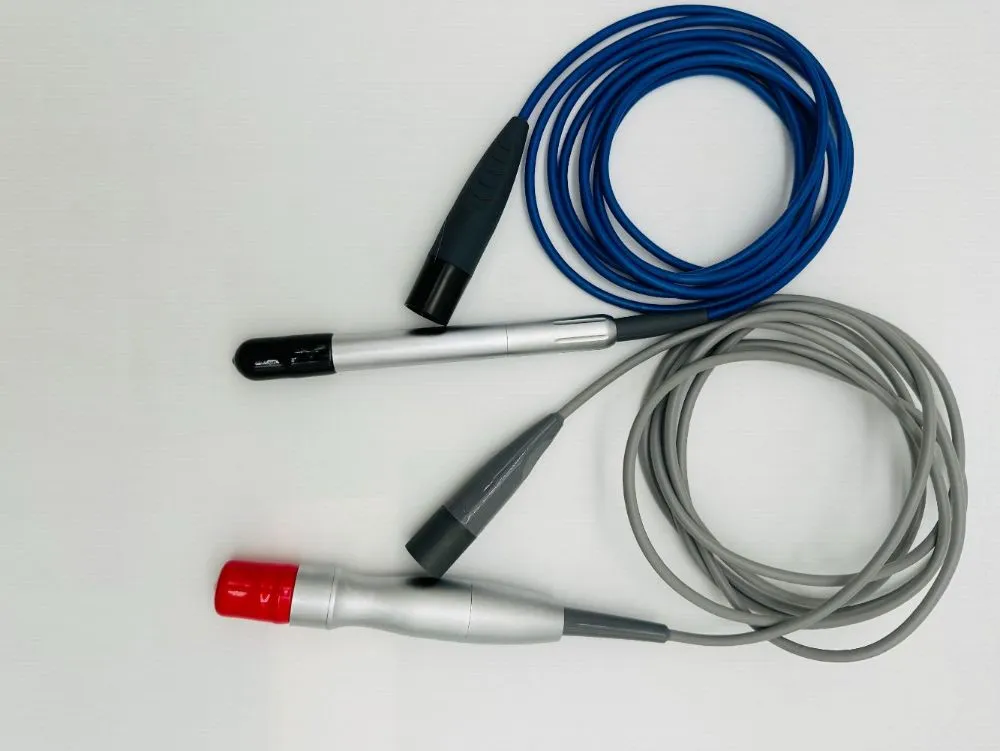

| Transducer A | WYHP35 | Handpiece for gun design, 55.5 KHz |

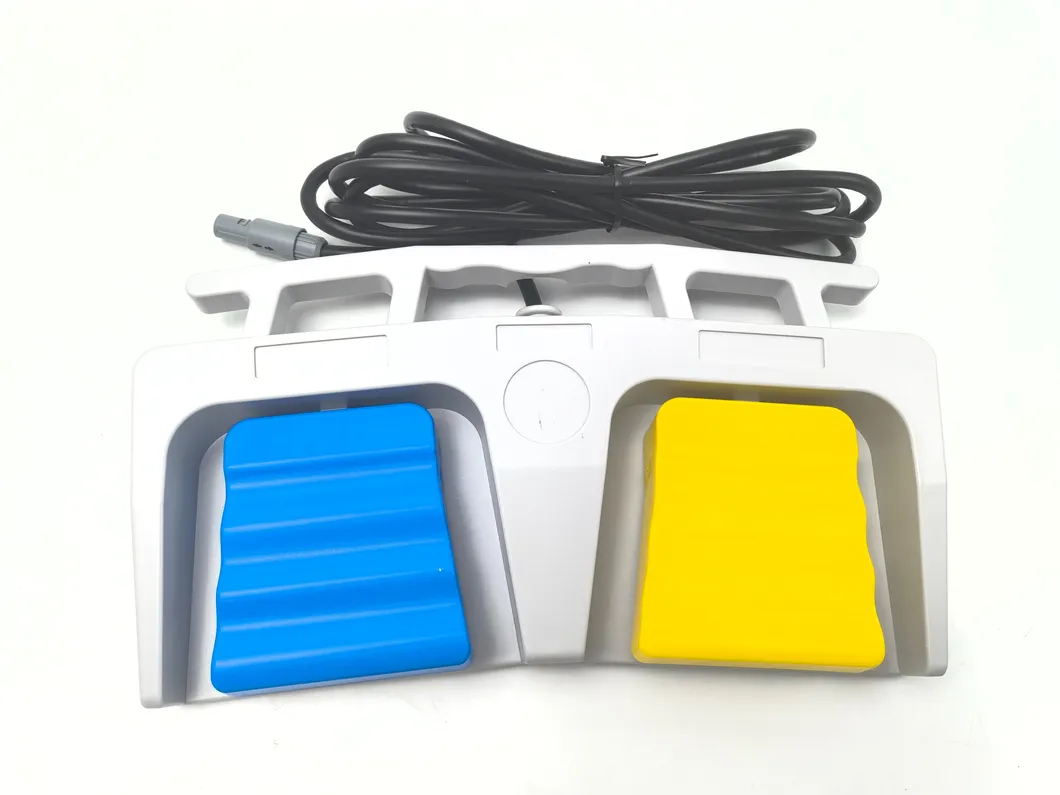

| Foot Switch | WYFS01 | Waterproof level: IPX8 |
