| Model NO. | BZ-GSD1725 | Power Source | Electric |
| Automatic Grade | Automatic | Warranty | 3 years |
| Certification | CE, ISO, CCC | Machine Name | Multi-Layer Fabric Cutting Machine |
| Cutting Capacity | 700 Pieces of Clothing Per Hour | Cutting Precision | 0.1mm |
| Maximum Speed | 90m/Min | Cutting Thickness | 0.1mm--110mm (After Vacuum Adsorption) |

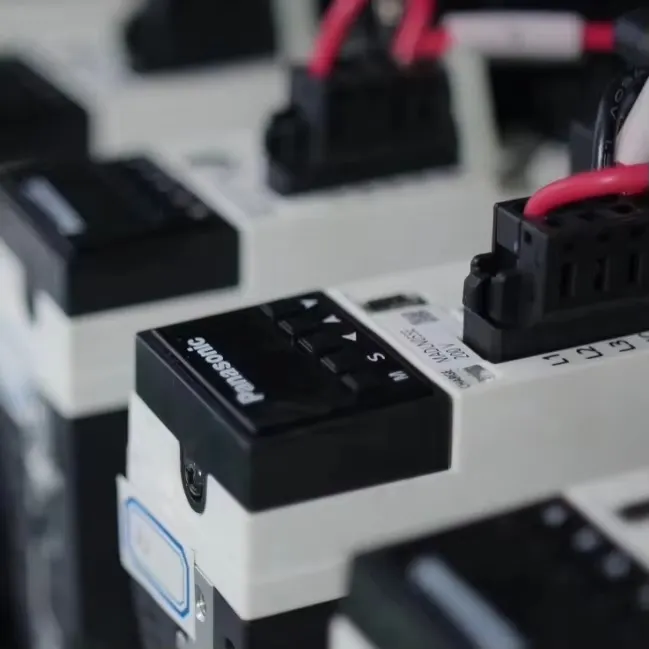

| X/Y/Z Axis Motor | Japanese Panasonic Servo Motor | HS Code | 8451500000 |
| Product Model | BZ-GSD1725 | BZ-GSD2030 | BZ-GSD2330 | BZ-GSD2630 |
|---|---|---|---|---|
| Cutting Range (W*L) | 1.70m*2.5m | 2.0m*3.0m | 2.30m*3.0m | 2.60m*3.0m |
| Production Capacity | 650 pairs of pants per hour, 500 pieces of clothing per hour, 6000 medical gowns per hour | |||

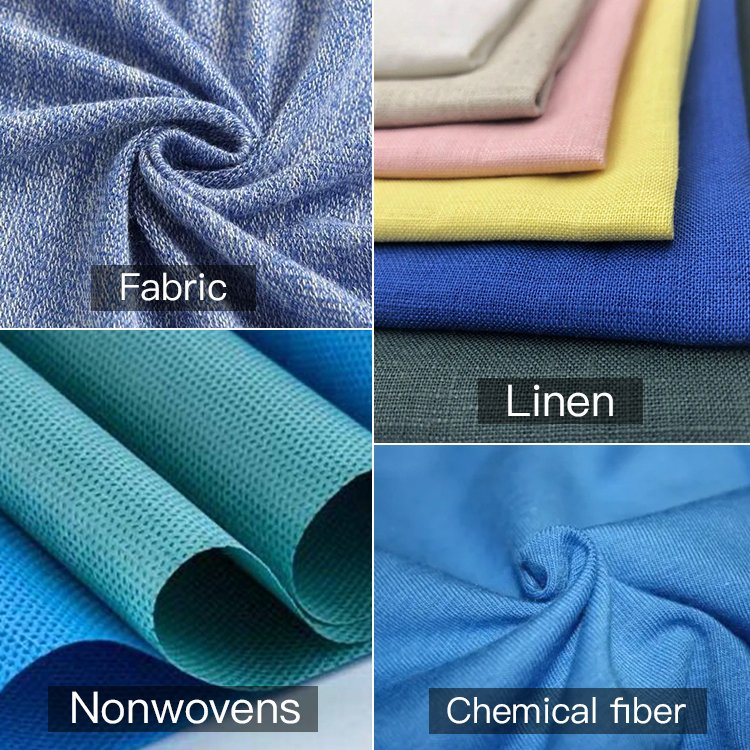

| Applied Materials | Fabric, Textiles, Lace, Car interior, Fur, Leather, Denim, Calico, PVC, Foam, Cardboard, Acrylic, Carpet, etc. | |||
| Cutting Style | Straight Knife Continuous Up-down Cutting | |||
| Total Power | 18KW | |||

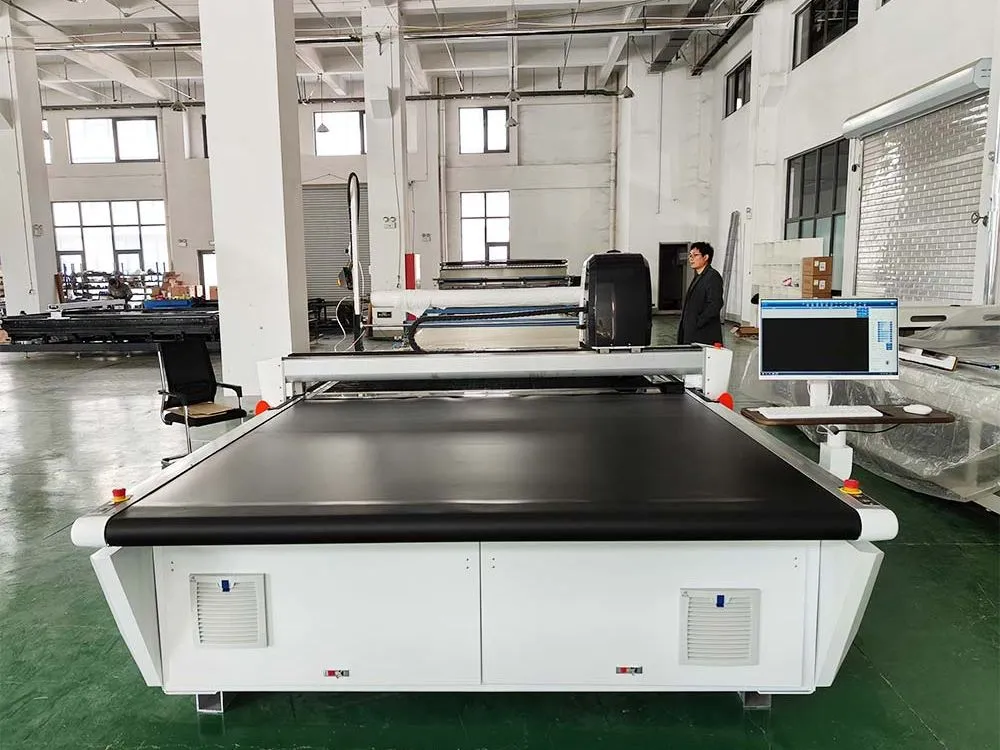

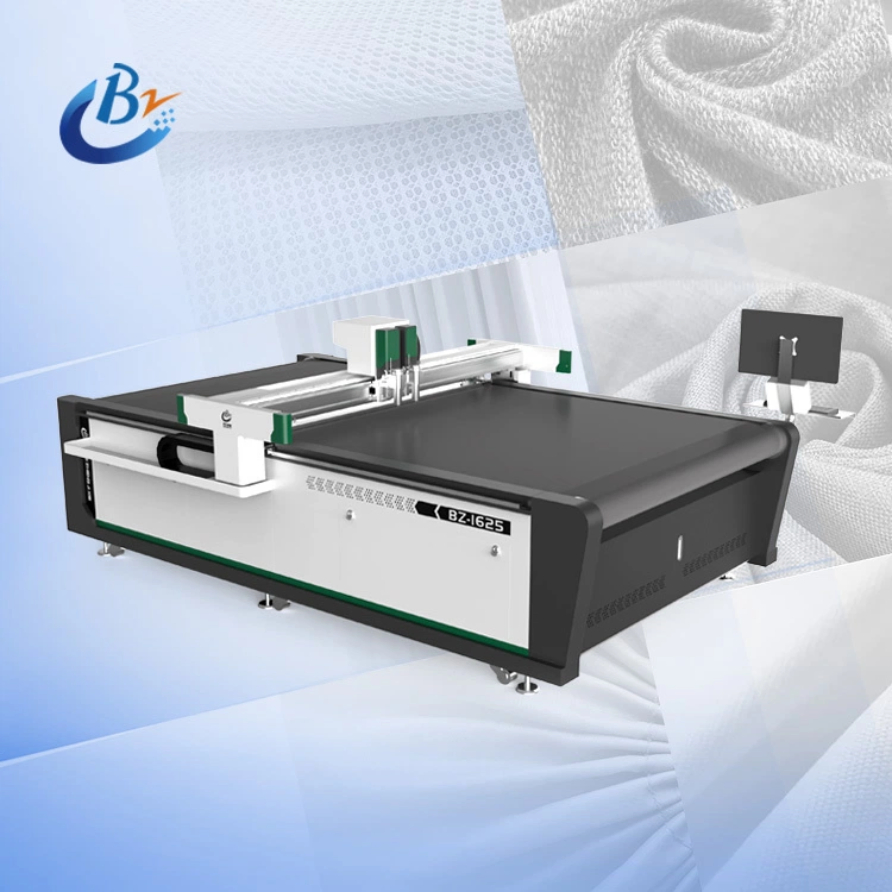

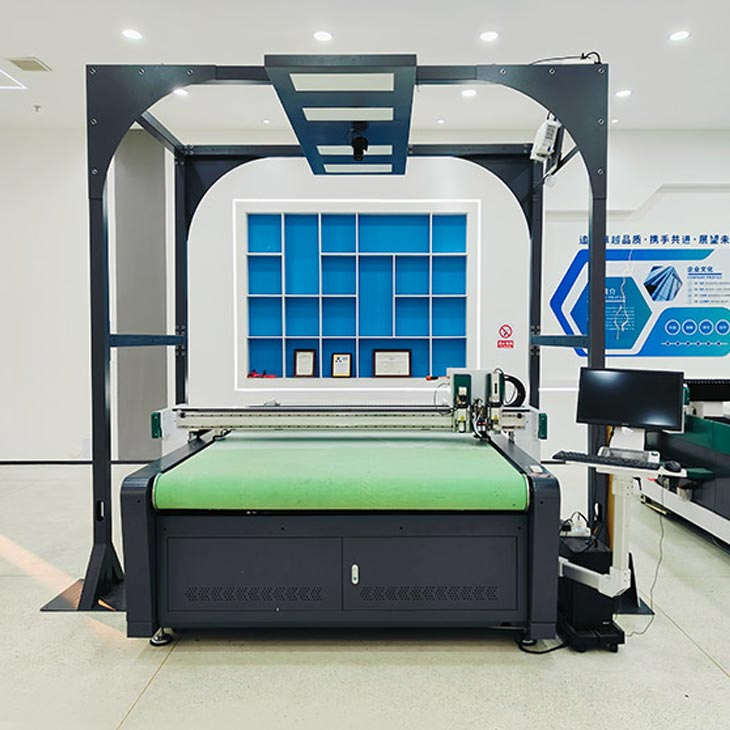

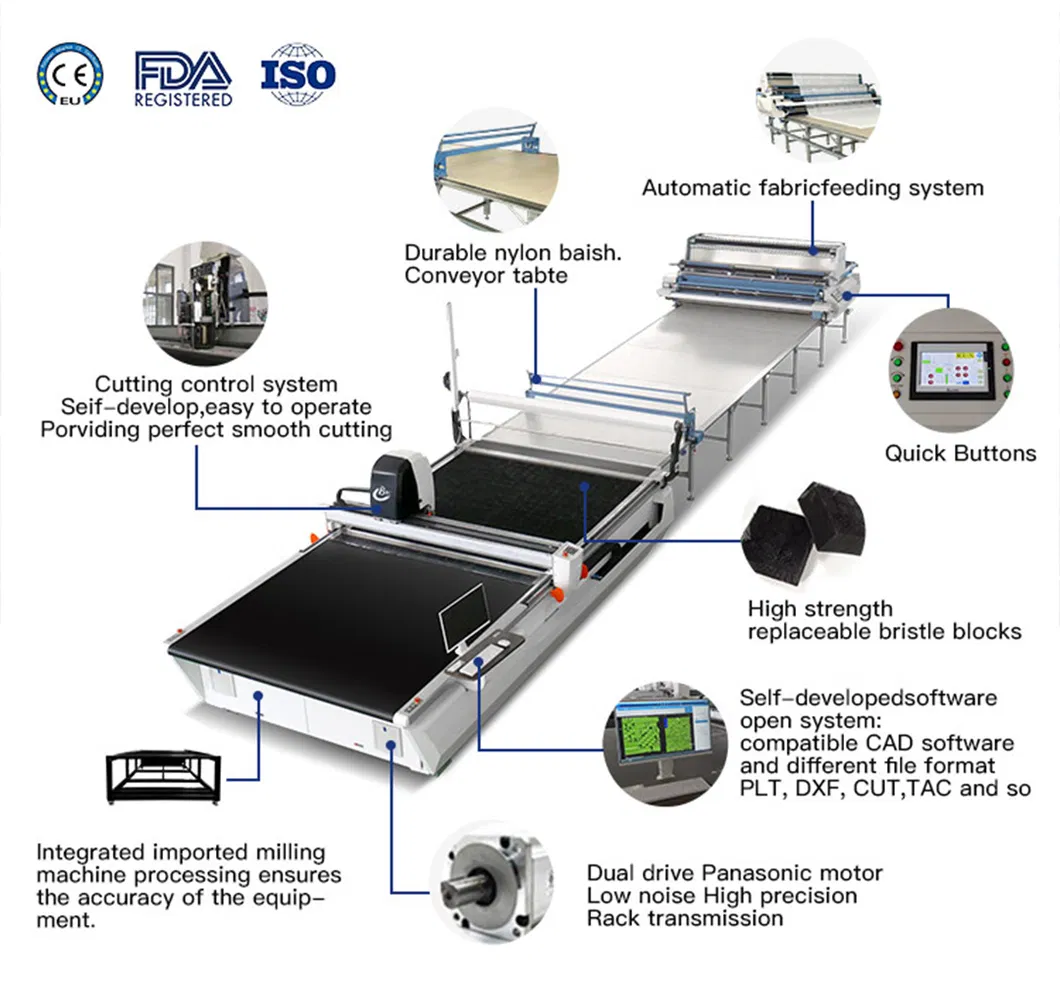

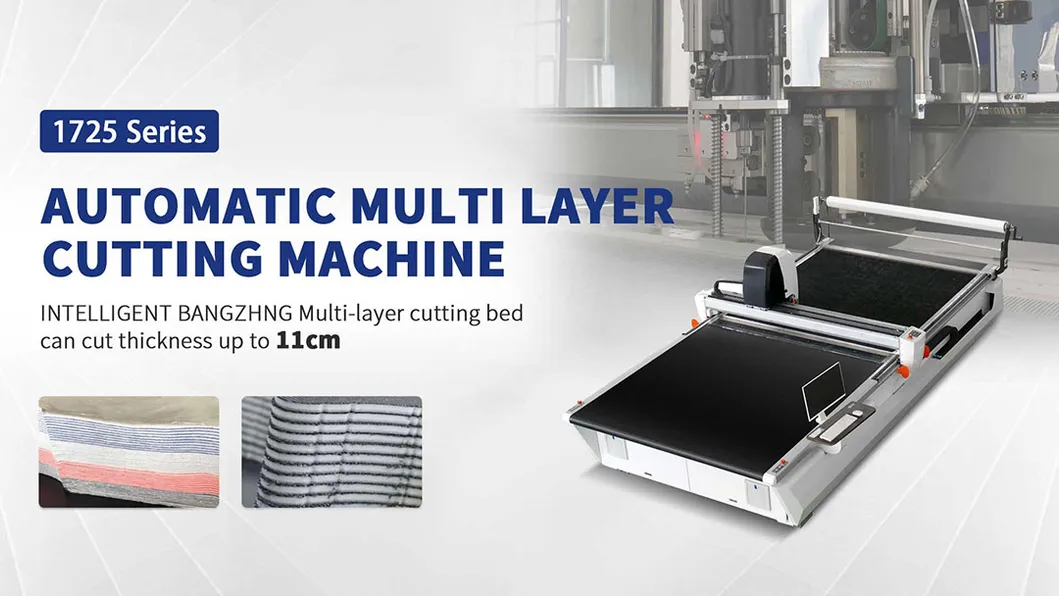

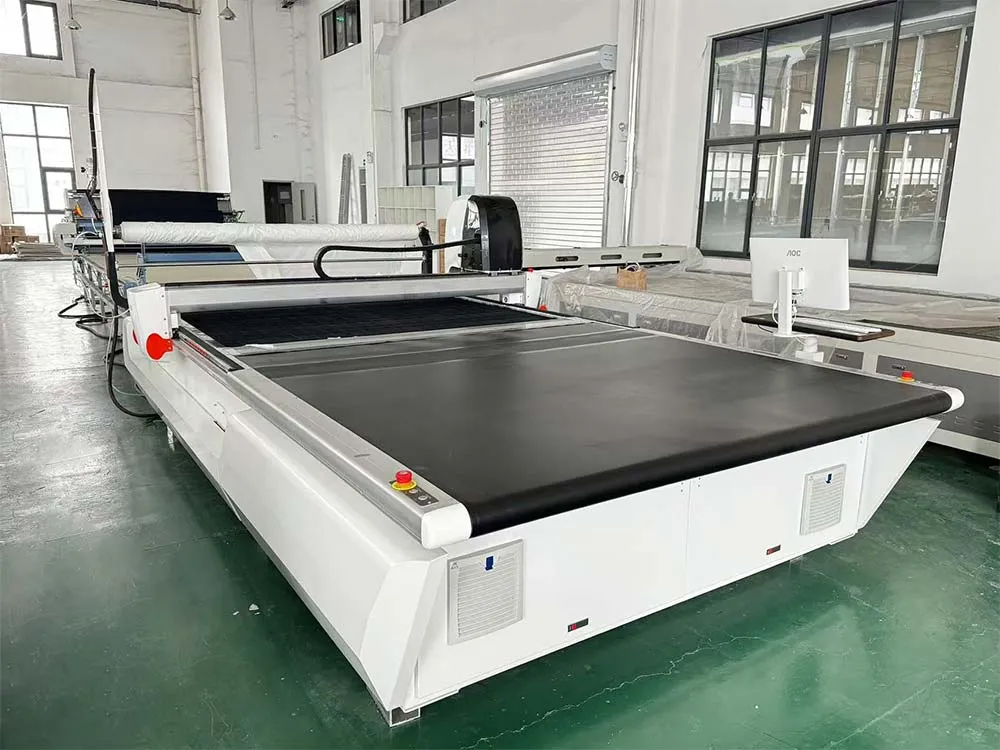

Automatic Multi-layer Cutting Machine
-- Specially designed for flexible materials with fully automatic computer control and one-button design layout.

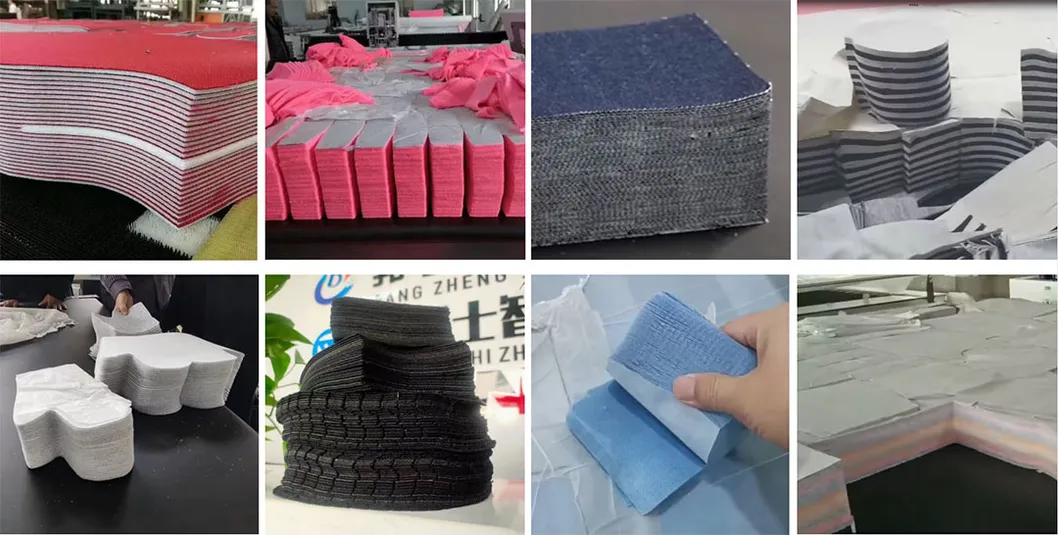

-- Cutting thickness ranges from 0.1cm to 11cm, optimized for multi-layer efficiency.
-- Built-in intelligent typesetting software achieves material utilization rates exceeding 98%.
-- Saves up to 5-6 labors with an odorless and smokeless cutting process.

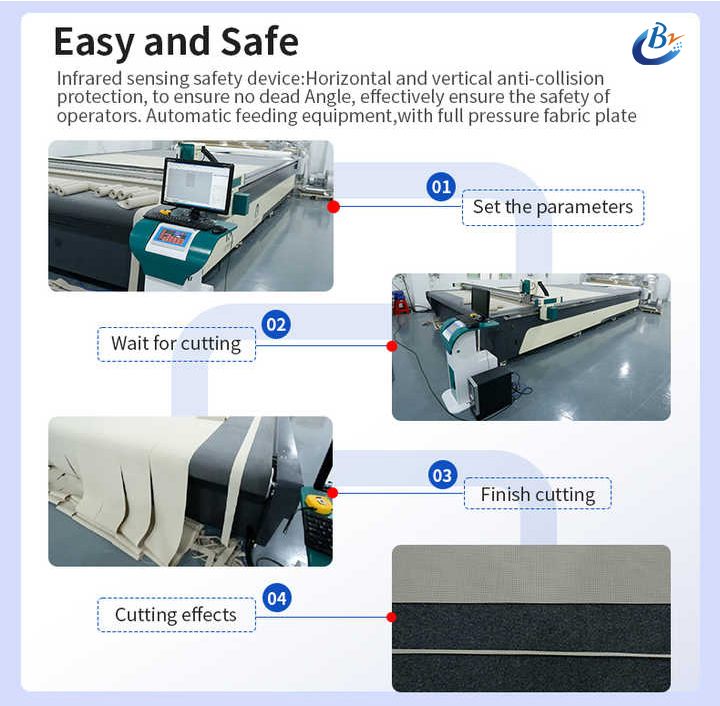

Simple & Efficient Operation Process

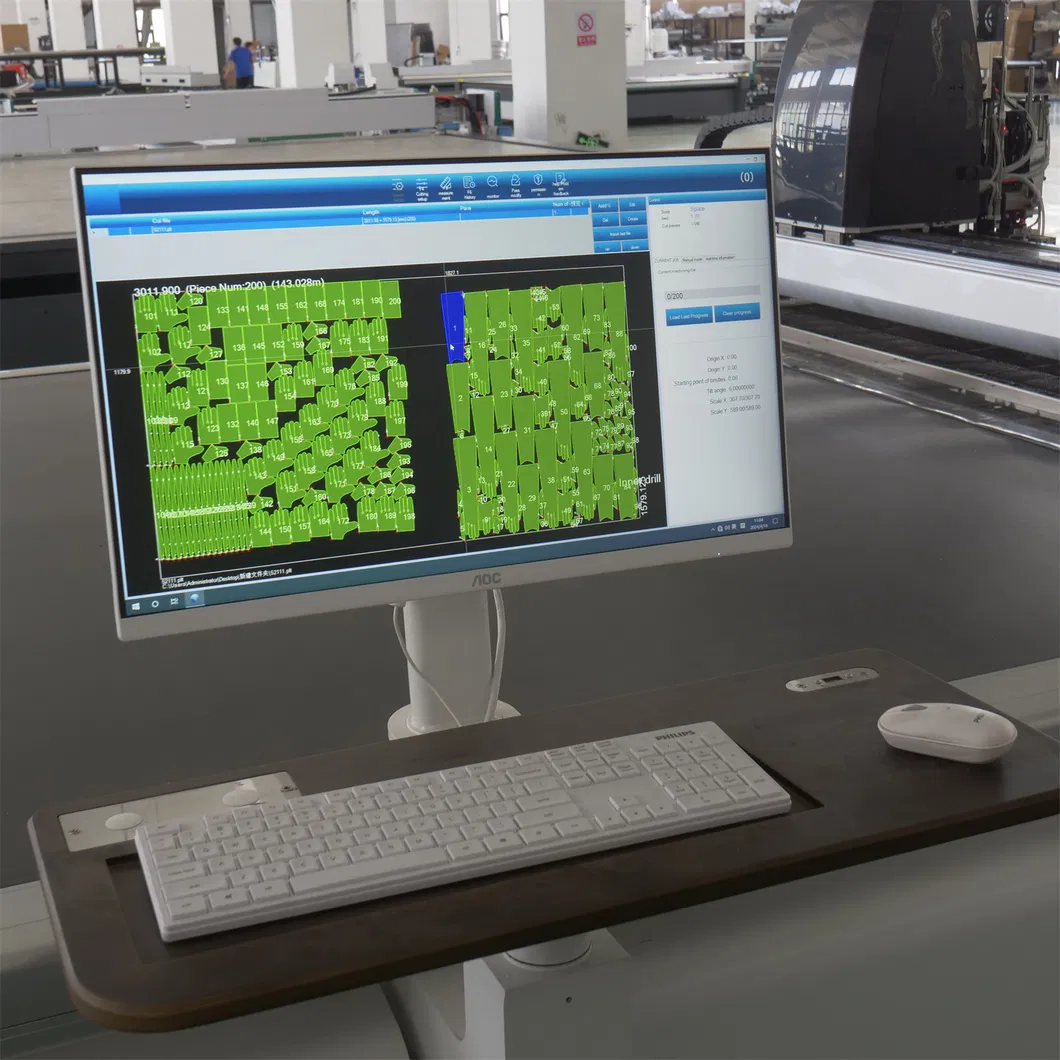

-- Advanced software designs complex templates within 3 seconds with one click.
-- Automatic transfer of graphics for precision cutting and transport to the receiving table.

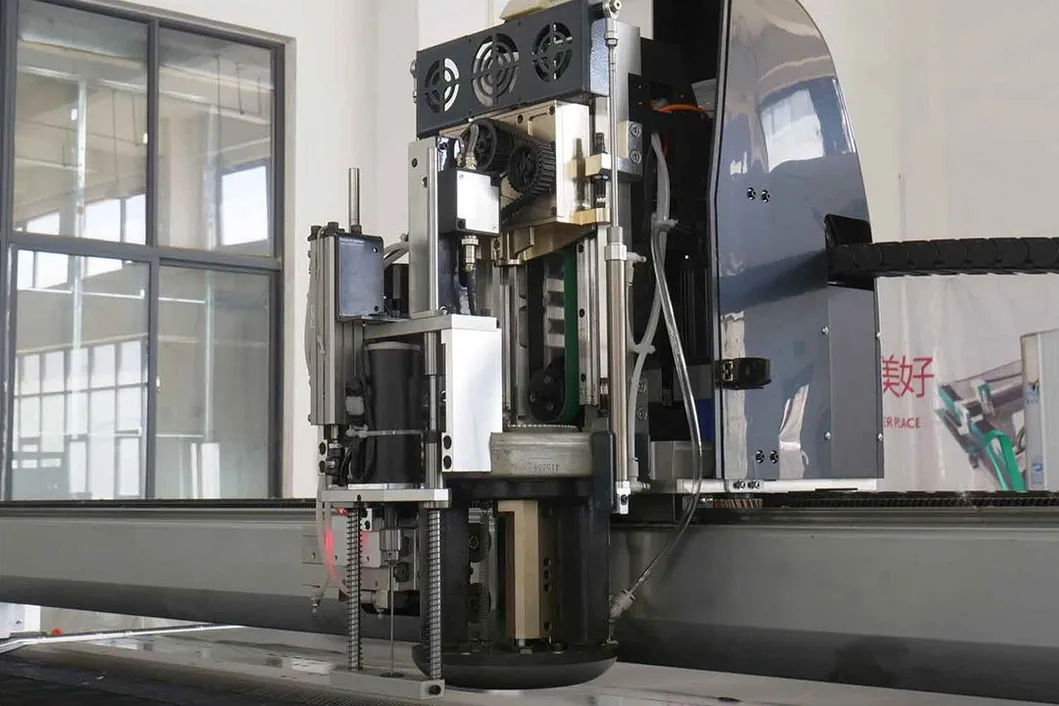

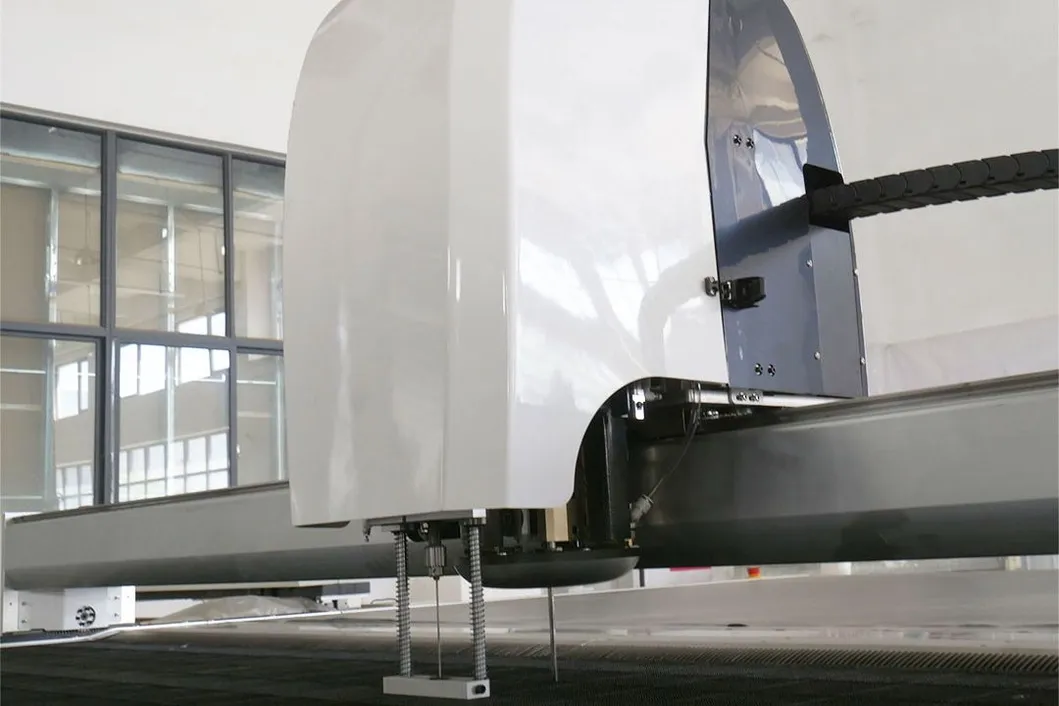

New Multi-Layer Cutting System
Cutting while feeding with high-precision. Efficiency increased by 30%.

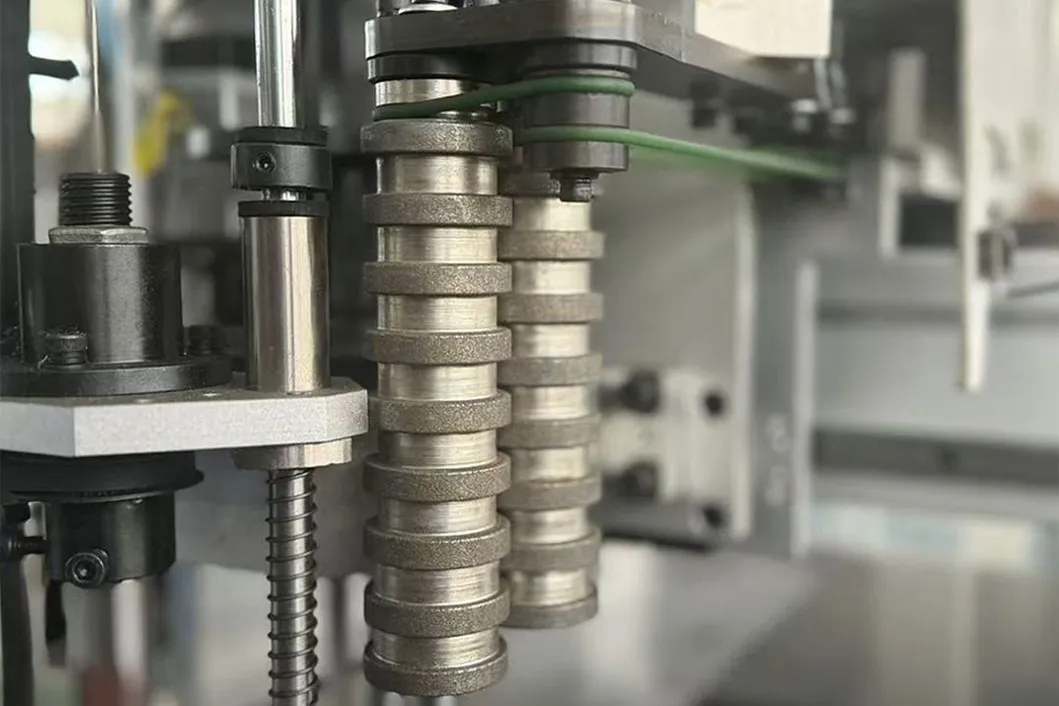

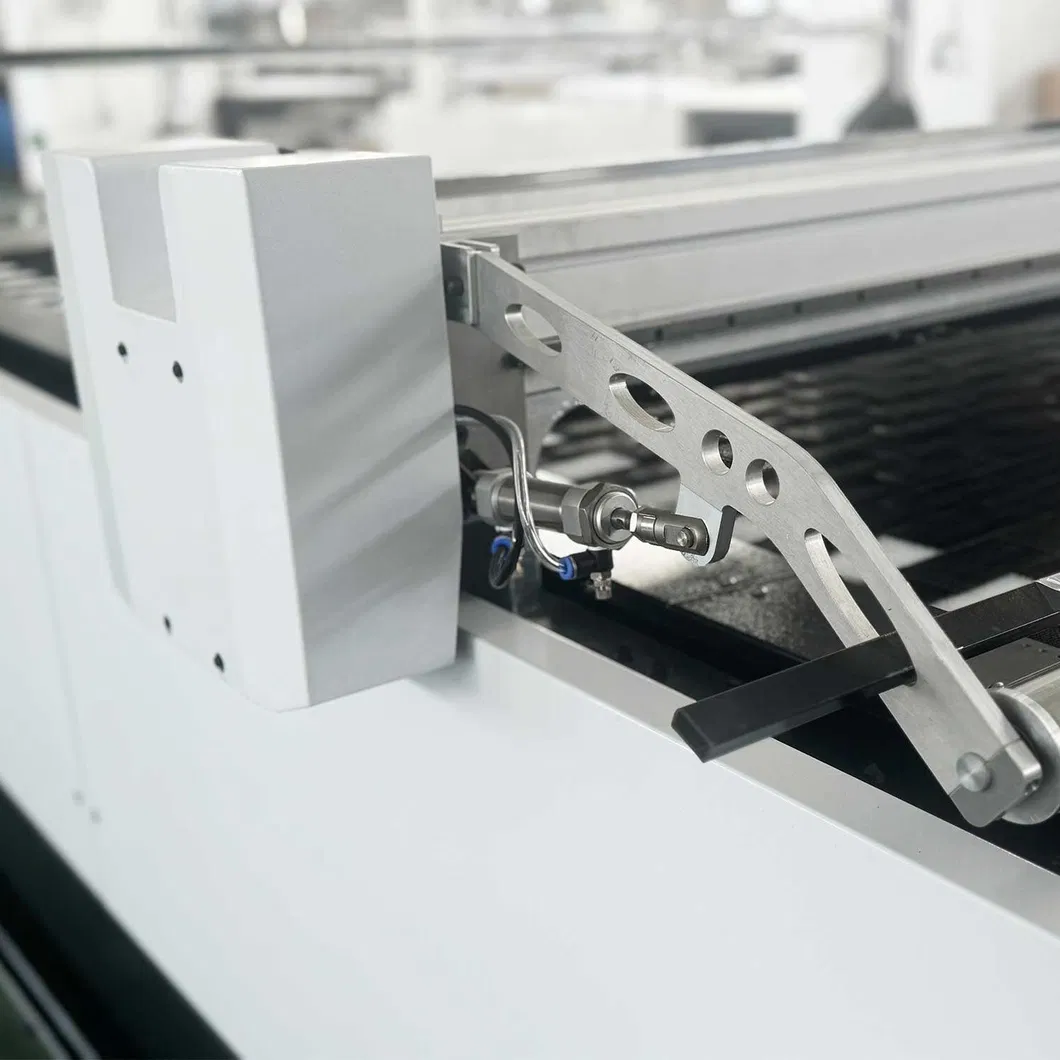

Automatic Knife Sharpening System

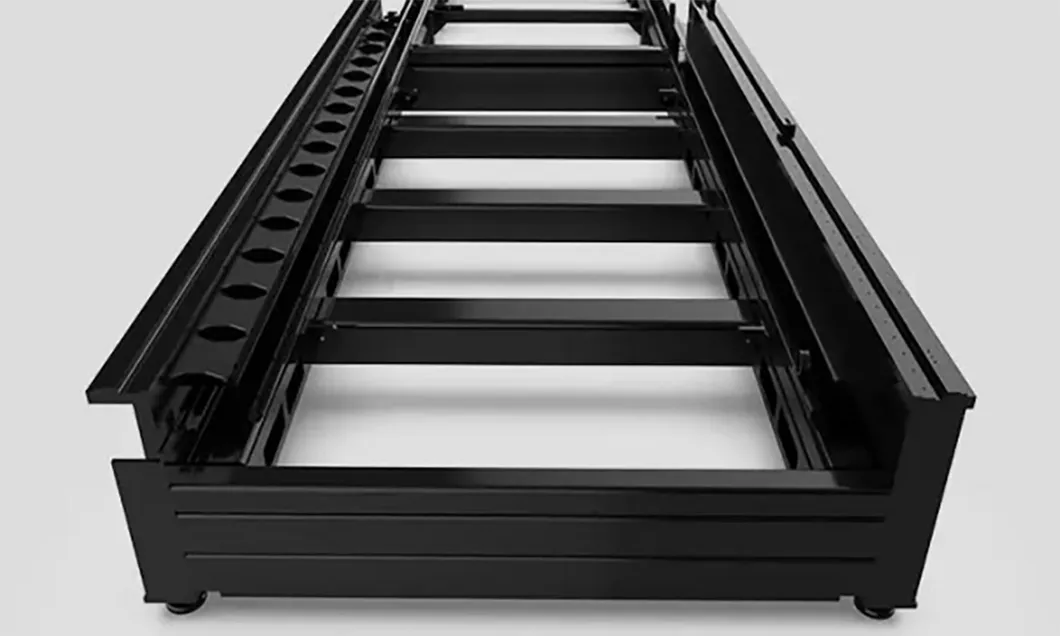

Knife Cooling System & Lathe Bed Structure
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity protection.
3. Custom packaging available upon request.

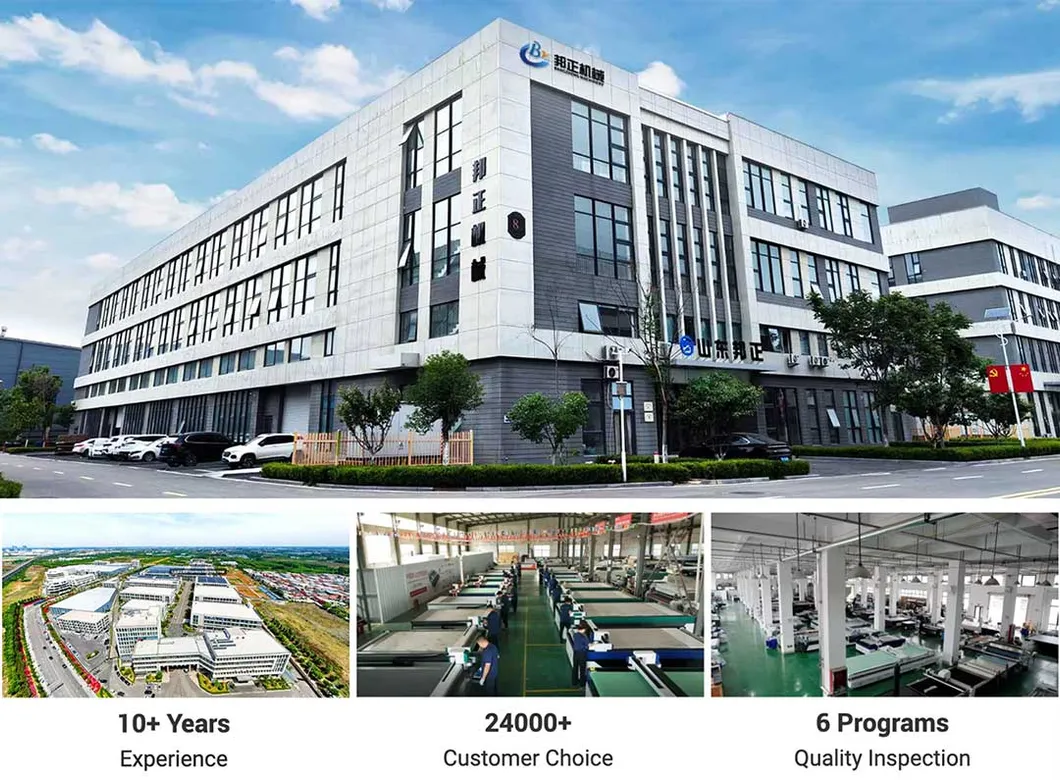

With an area of 20,000 square meters, we are a leading physical factory for flexible material cutting. As a comprehensive solution provider, we host 30 R&D engineers and nearly 200 technical specialists. Our products serve over 1,930 customers across 80 countries, achieving an annual output value exceeding 60 million USD. We are committed to solving all production challenges for our global partners.
