60mm Steel Plate Penetration X-ray Source X-ray Security Inspection System of Roller Conveyor

Customization:	Available
Portable:	Non Portable
Form:	Flatbed

Send Inquiry

Product Description

Basic Specifications

Model NO.

Iwildt-An150150

Application

Security Check

Type

Industrial X-ray Detector

Certification

CE, ISO

Penetration

60mm Steel Plate

Tube Voltage

180 Kv (Adjustable)

Tube Current

0.8 ~ 1.8mA

Trademark

IWILDT

Production Capacity

2000pieces/Year

HS Code

9002909090

Product Introduction

IWILDT™-AN 150150 X-ray security inspection system of roller conveyor is a line array X-ray low dose scanning security inspection equipment with large channel size, high load, strong X-ray penetration and wide energy resolution data range. It adopts the international leading X-ray detector and computer intelligent control and image scanning technology. The system meets the high-level application scenarios of aviation security inspection.

Featuring a 24-inch IPS high-definition frameless widescreen display and a 360-degree multi-angle bracket, the system provides full-screen large-area real-time display of X-ray images, significantly improving the efficiency of security operators.

This system is suitable for non-unpacking X-ray security inspection of bulk goods in airport freight stations, customs freight yards, port terminals, logistics parks, and border ports. It efficiently detects dangerous chemicals and prohibited articles hidden in large cargo boxes, such as gunpowder, toxic substances, weapons of mass destruction (WMDs), guns, knives, and detonators.

Technical Parameters

X-Ray Source

Penetration: 60mm steel plate
Tube voltage: 180 kV (adjustable)
Tube current: 0.8 ~ 1.8Ma (adjustable)
Beam divergence angle: 80 degrees
Heat dissipation: Oil immersed
Radiation protection: 6mm thick lead plate
Collimator: Ultra narrow slit beam output

Detection System

Structure: Modular, compact design
Detection crystal: GSI
Photoelectric conversion: CMOS
Pixel arrangement: L-shaped line array
Interface: RJ45 communication mode

Image Processing & Software

Workstation: Mini Dual Core CPU / 4G / 128G HDD
Display: 24 inch 20000:1 IPS LCD
Functions: Edge enhancement, image inversion, organic/inorganic removal
Recognition: CNN convolutional neural network (optional)
Format: JPG named by scanning time

Equipment Performance

Channel size: 1500(W) x 1500(H) mm
Conveying speed: 0.22m/s
Max Load: 450kg
Line resolution: 0.0787mm copper wire
Leakage dose: < 0.09ugy/h
Machine weight: 660kg
Power loss: 3.0kw (max)

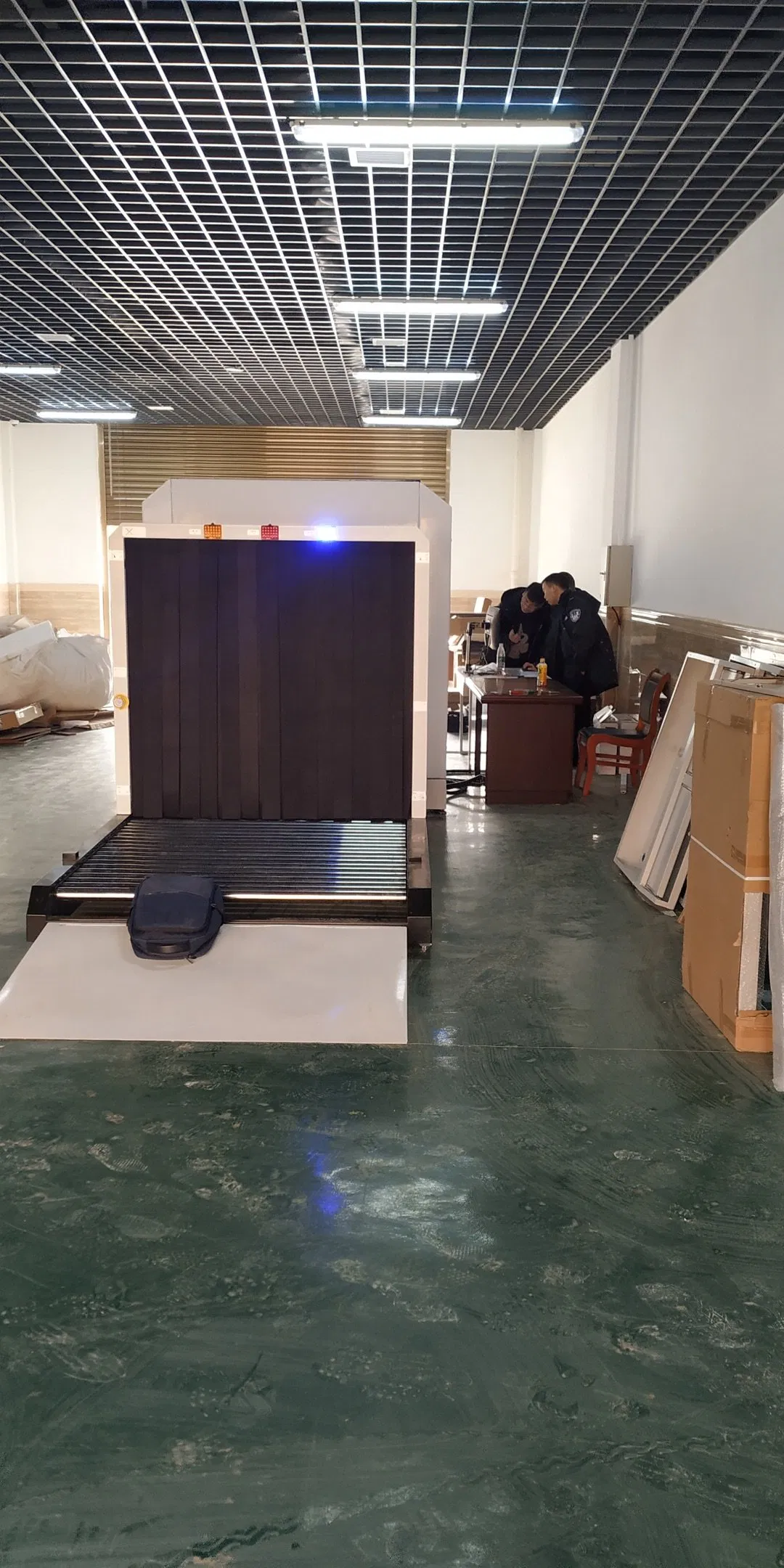

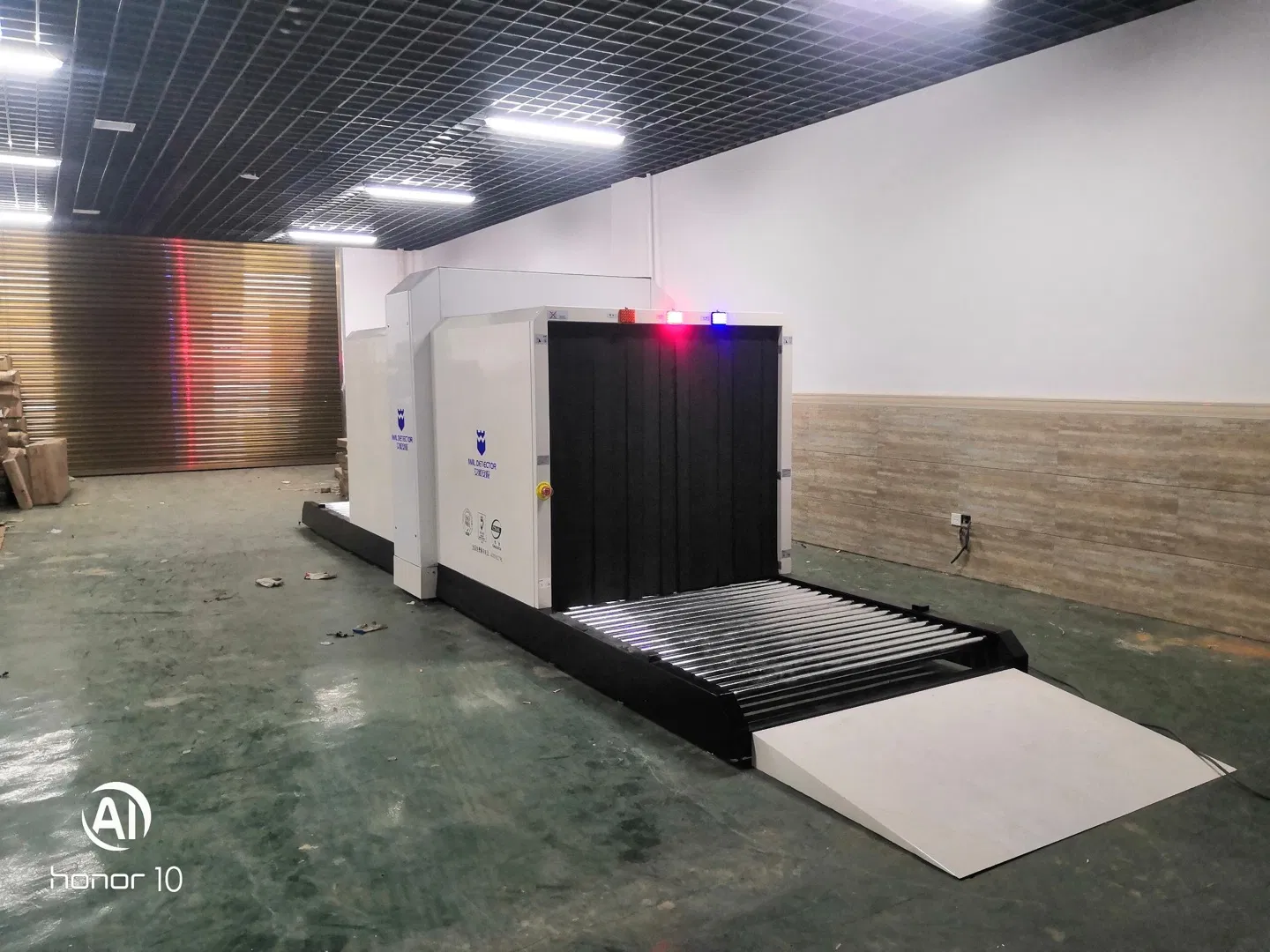

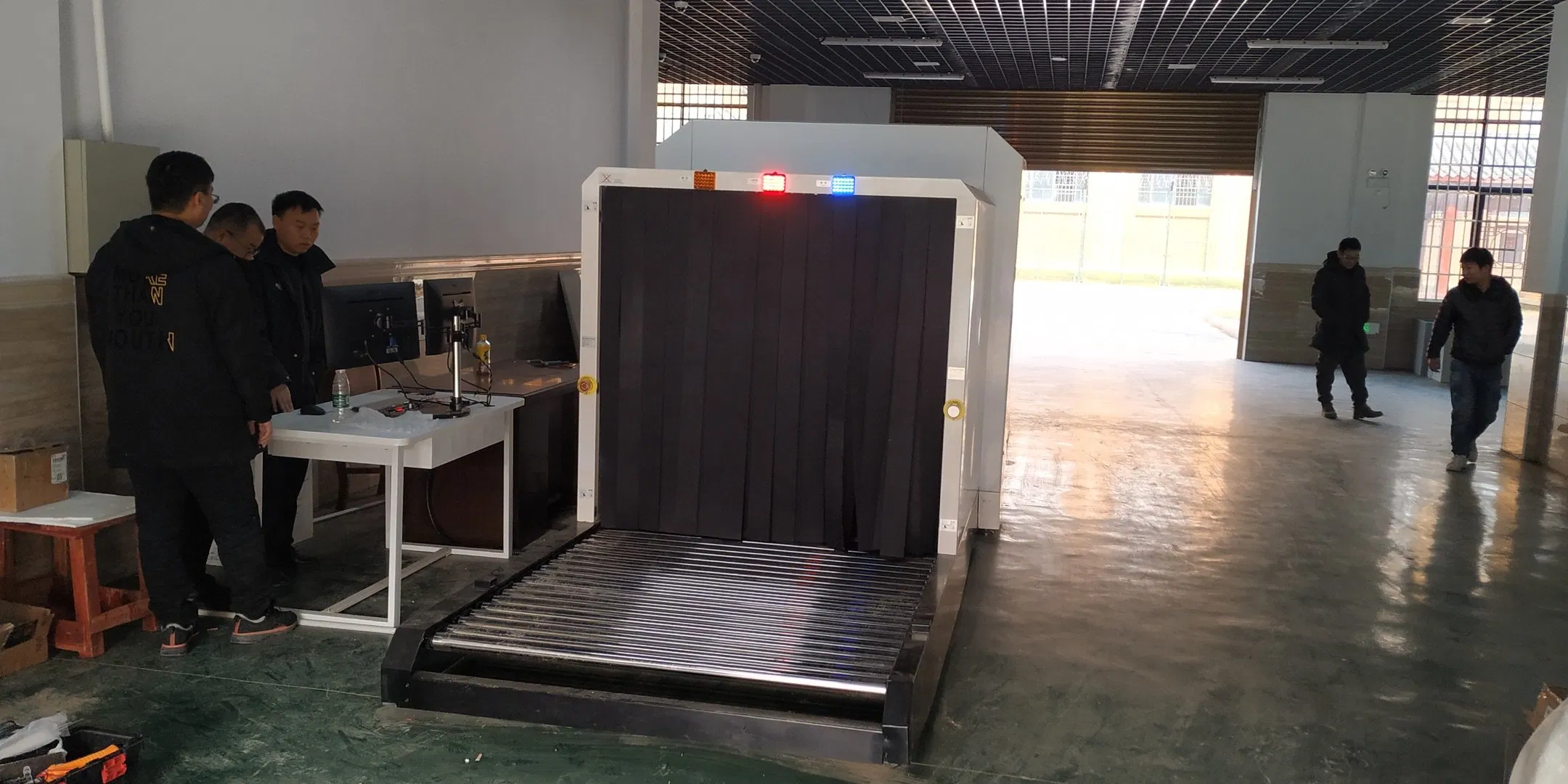

Product Showcase

Core Advantages

National high-tech enterprise standards
Professional pre-sale and after-sales technical support
Comprehensive 12-month free warranty
On-site installation, debugging, and personnel training
10-hour rapid response for maintenance requests

Frequently Asked Questions

Q1: What is the maximum penetration capability of the IWILDT-AN 150150? The system features a powerful X-ray source capable of penetrating up to 60mm thick steel plates, ensuring high-density cargo inspection.

Q2: What are the dimensions of the inspection channel? The channel size is 1500mm in width and 1500mm in height, designed to accommodate large pallets and bulk cargo.

Q3: Is the radiation level safe for operators? Yes, the leakage dose is less than 0.09ugy/h, which is well below international safety standards. It also uses 6mm thick lead plating for protection.

Q4: Does the software support automatic threat detection? The system includes advanced image processing and can be equipped with an optional CNN convolutional neural network for intelligent image recognition.

Q5: What is the maximum load capacity for the roller conveyor? The robust roller conveyor system is designed to handle a maximum load of 450kg.

Q6: What certifications does this equipment hold? The IWILDT-AN 150150 is manufactured under ISO 9001 and ISO 14001 standards and holds CE certification for security equipment.
